guitar brace templates

IMG_1543

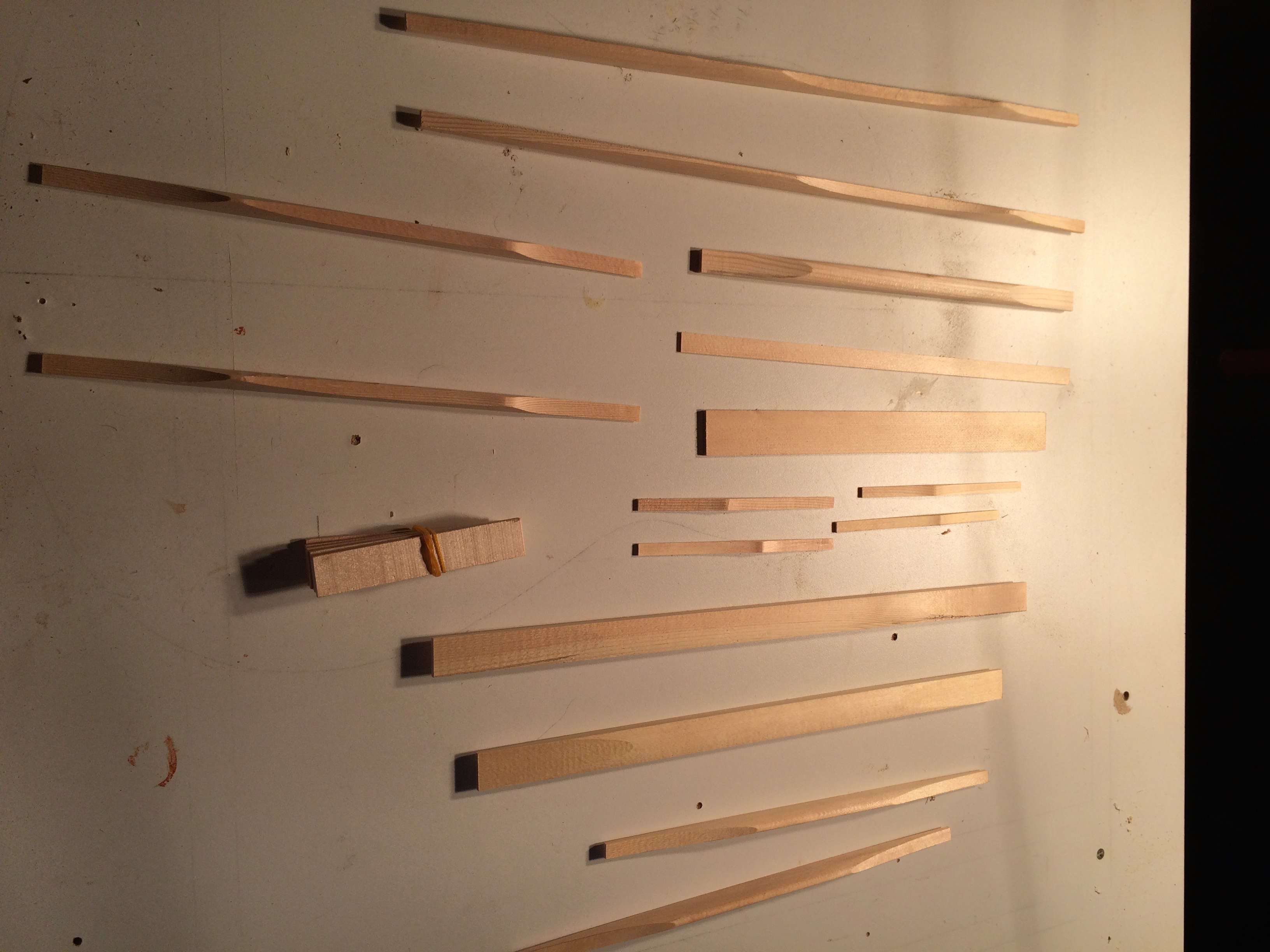

a pre cut set of braces bought on line, cost around $40.

IMG_1512

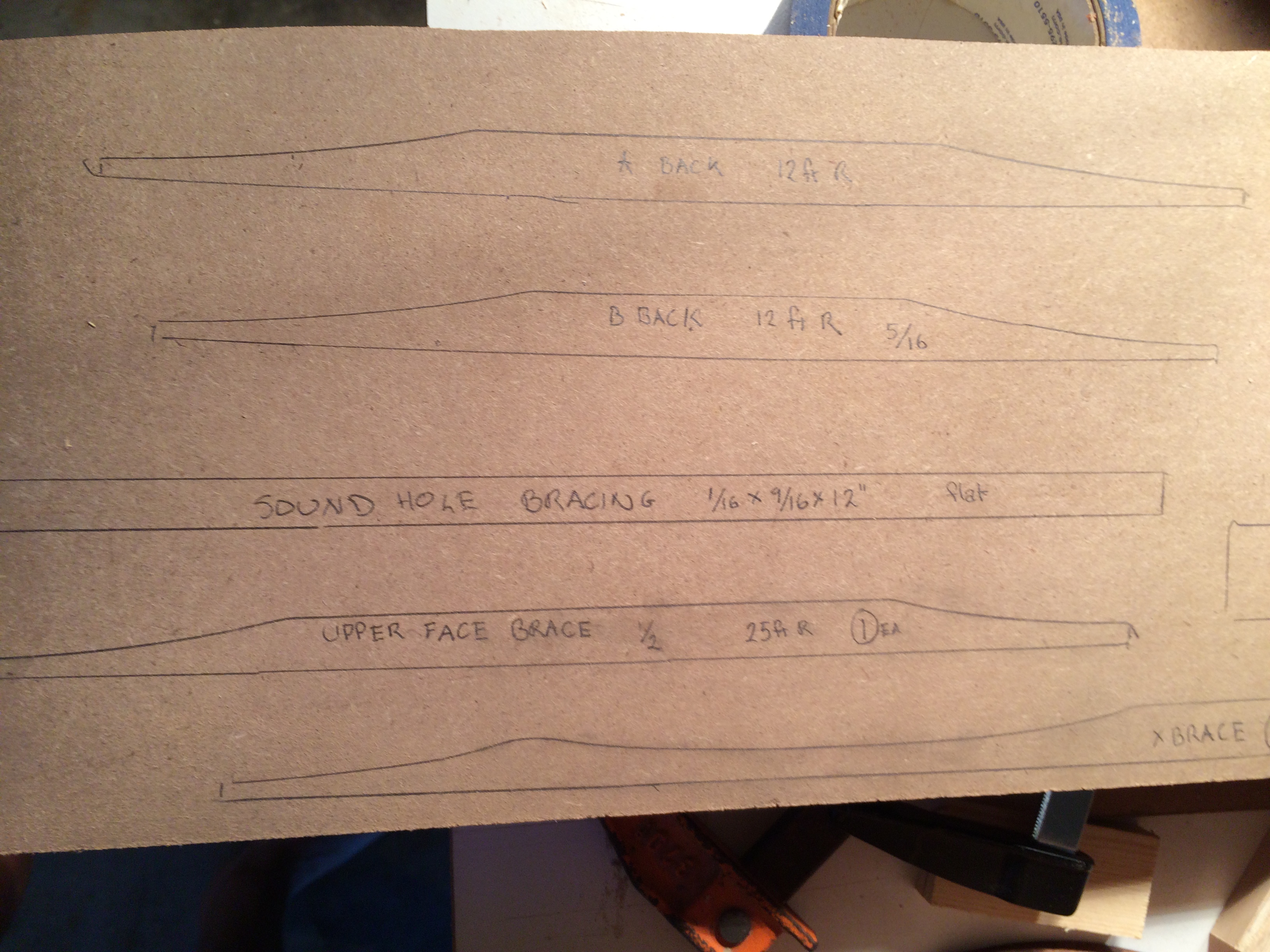

Traced out on 1/4 inch MDF.

IMG_1548

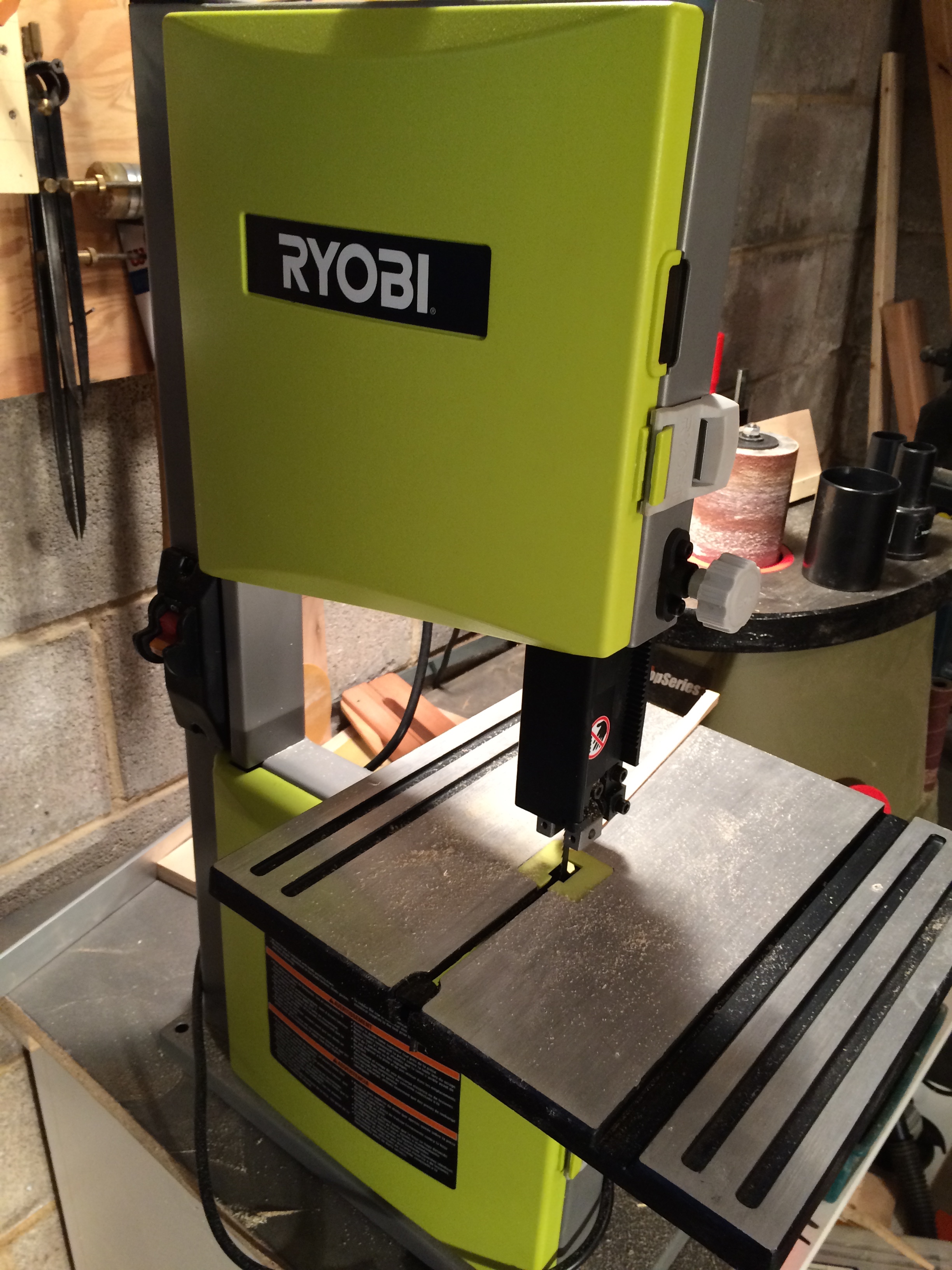

Using a small band saw cut out all the shapes.

IMG_1540

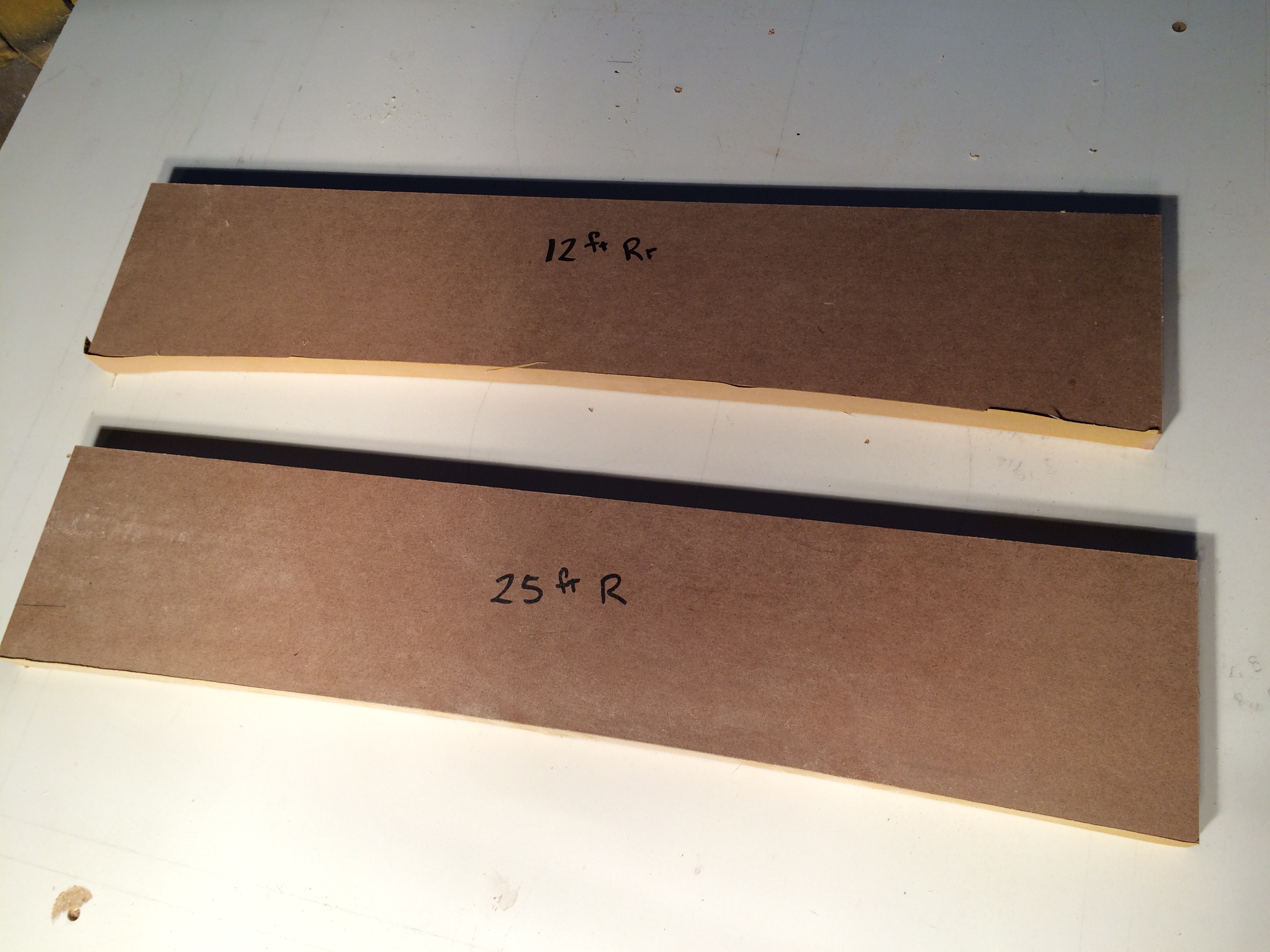

Using arched templates that my co-worker made for me,one at a 25 foot radius for the top and a 12 foot radius for the bottom. sand paper is applied to the curve and the template is sanded to a perfect radius. they will also be used to finish the braces.

IMG_1545

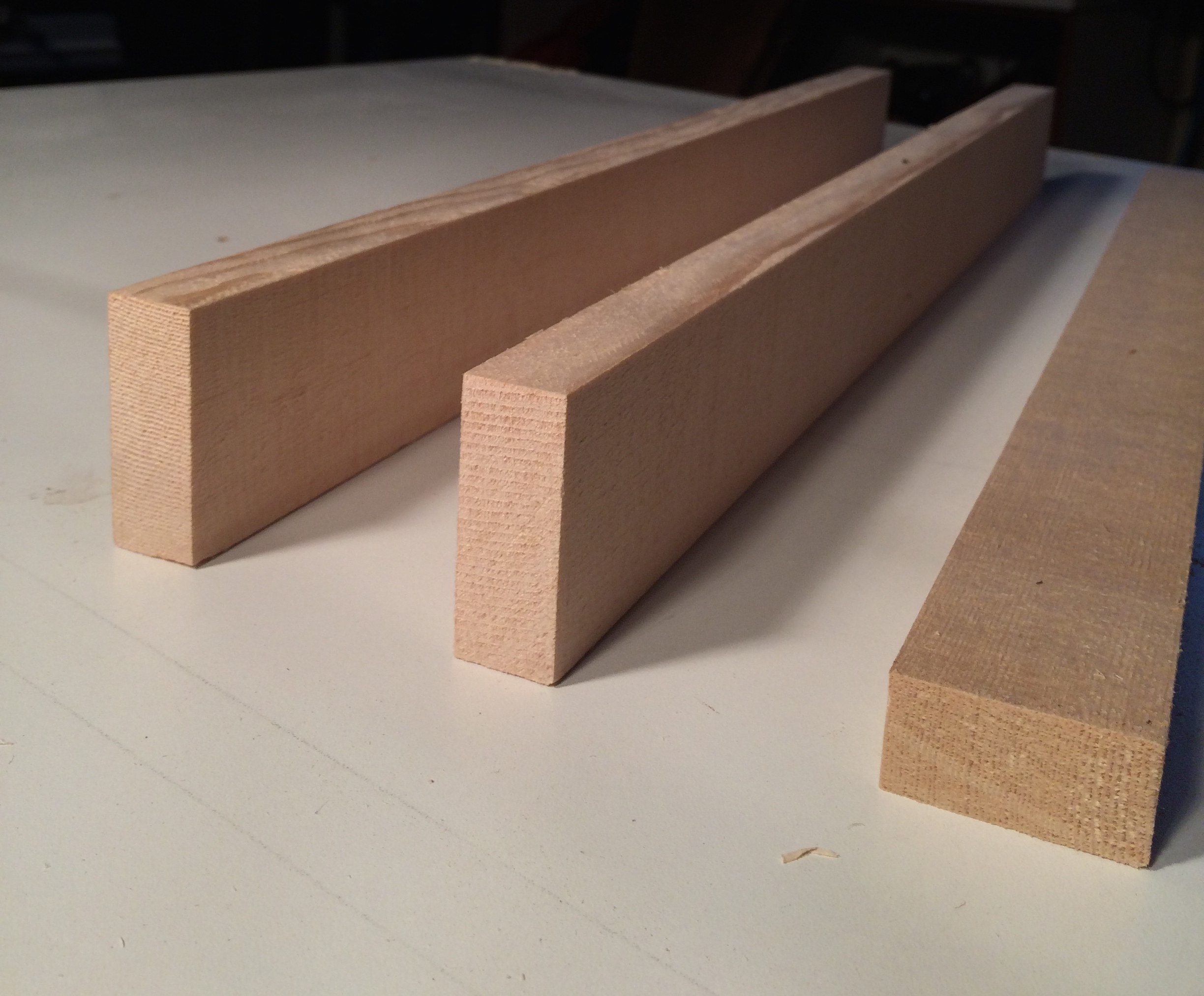

Sitka  spruce 1/4  sawn free from nots and then milled to dimension.

IMG_1517

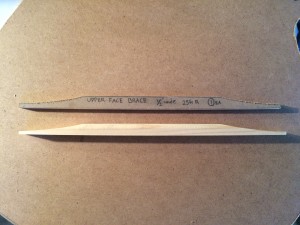

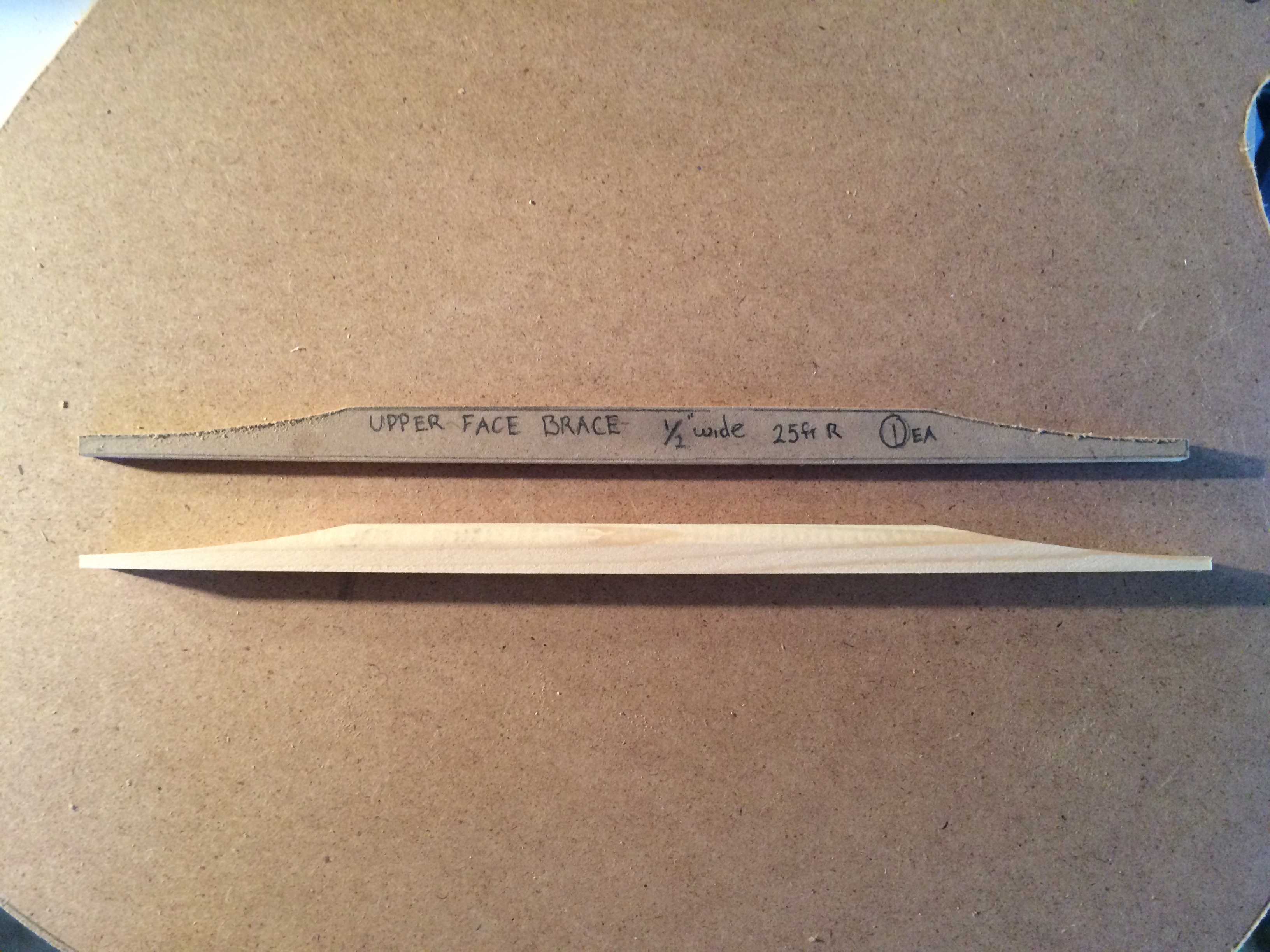

the spruce is cut and sanded to the shape of the template.

IMG_1551

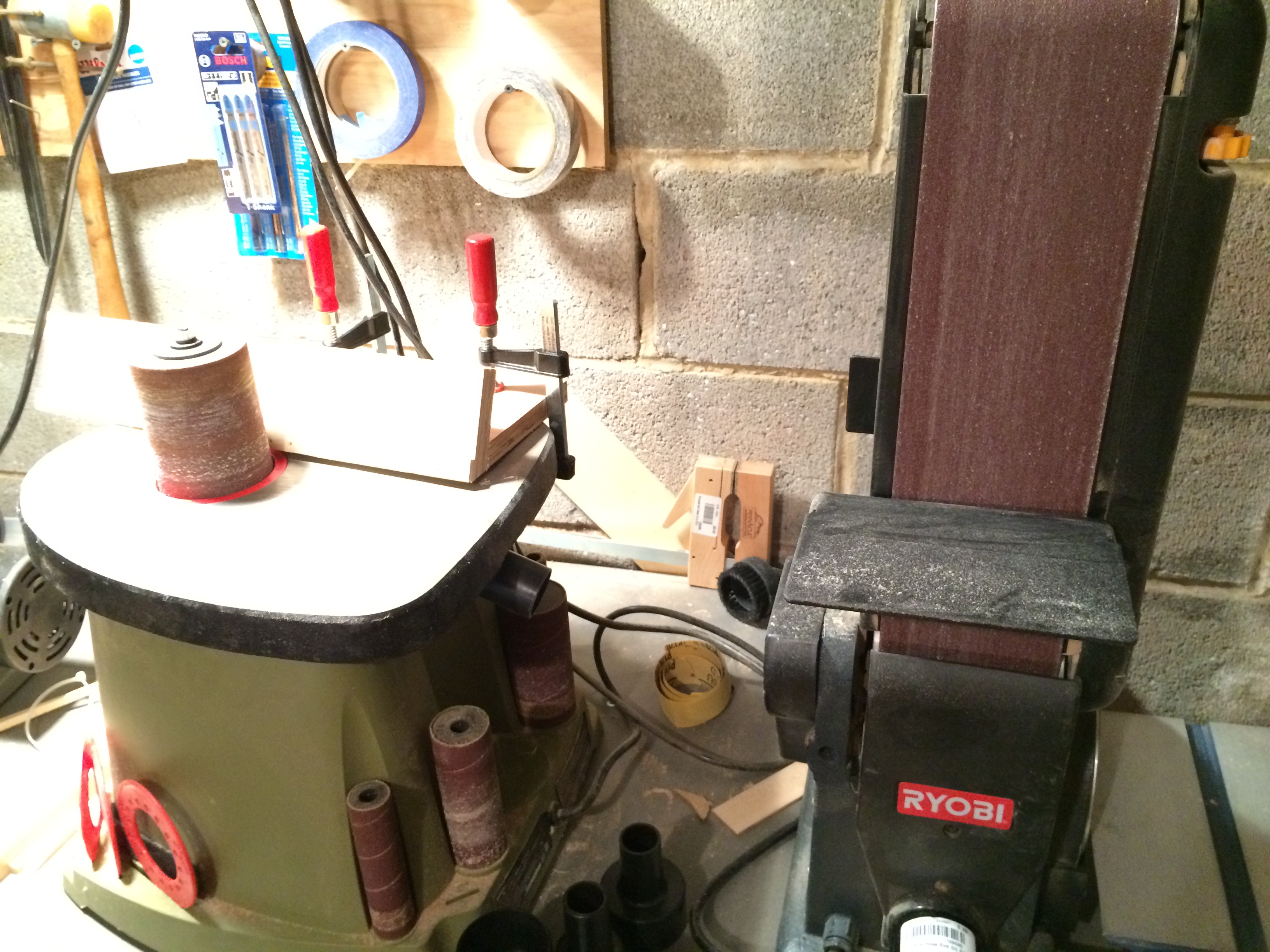

the belt sander used for convex and the spindle concave curves.

IMG_1552

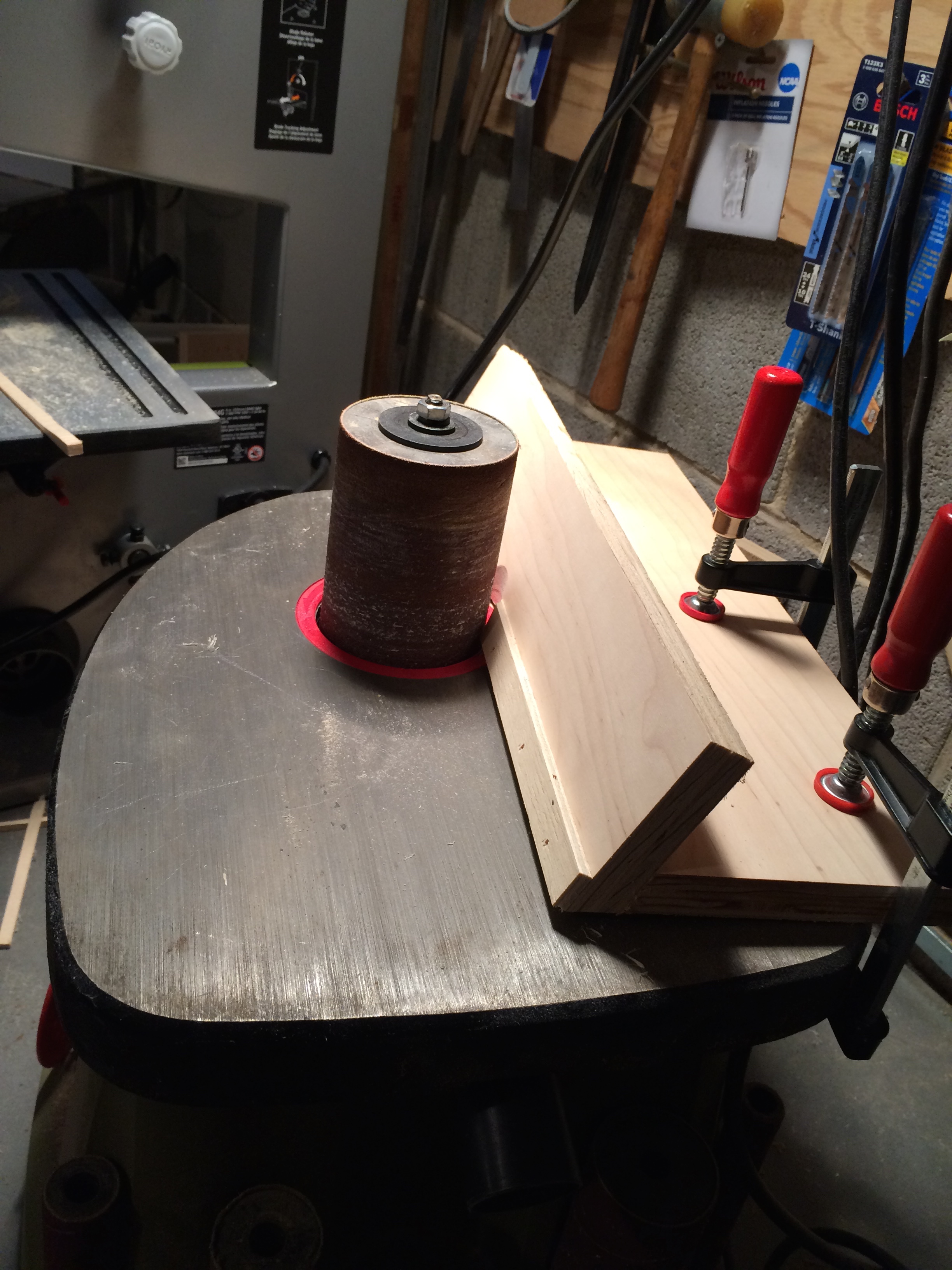

I made a bevel jig for the spindle sander at 22 degrees.

IMG_1549

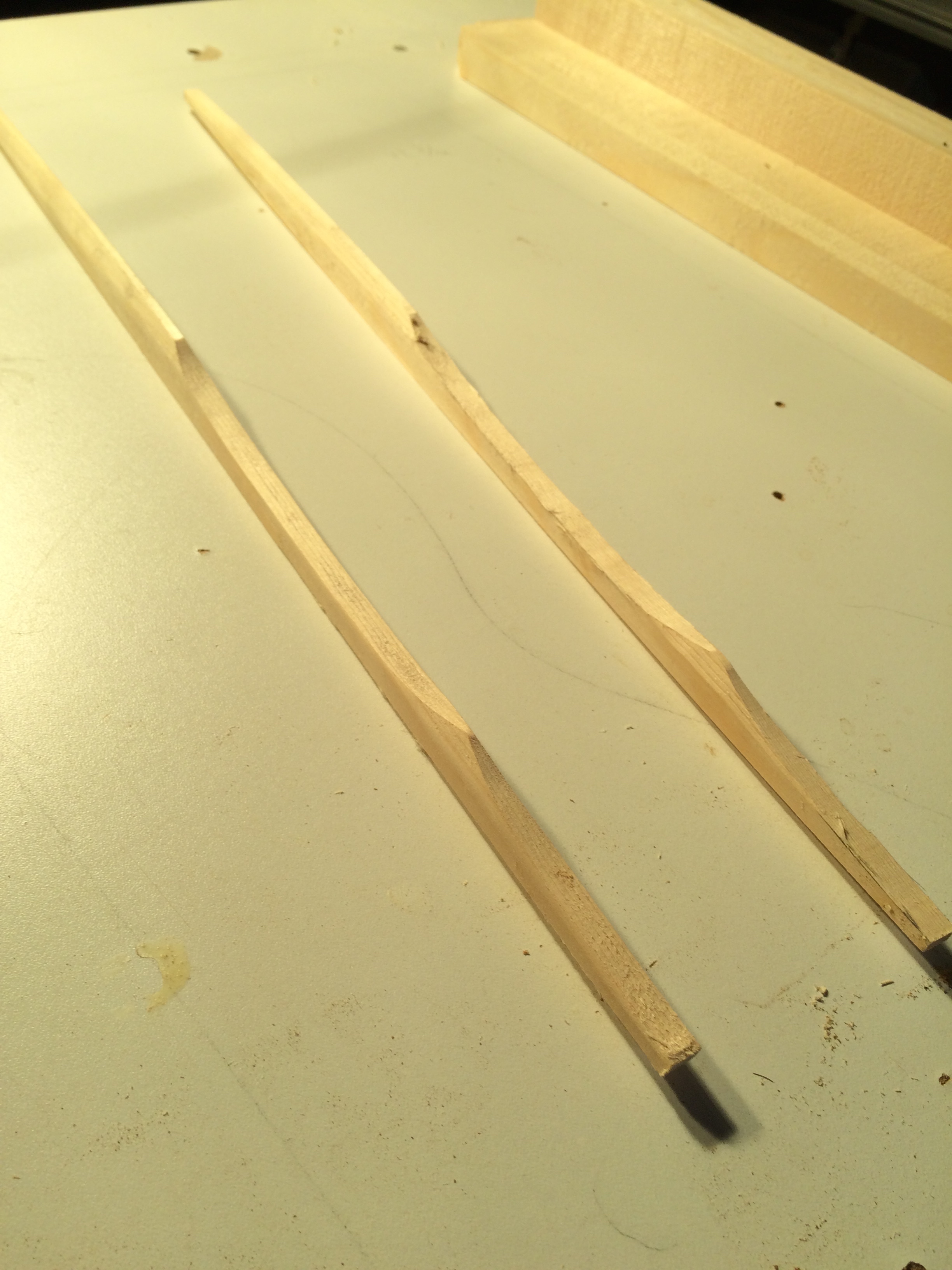

A little finish sanding

IMG_1542

IMG_1541

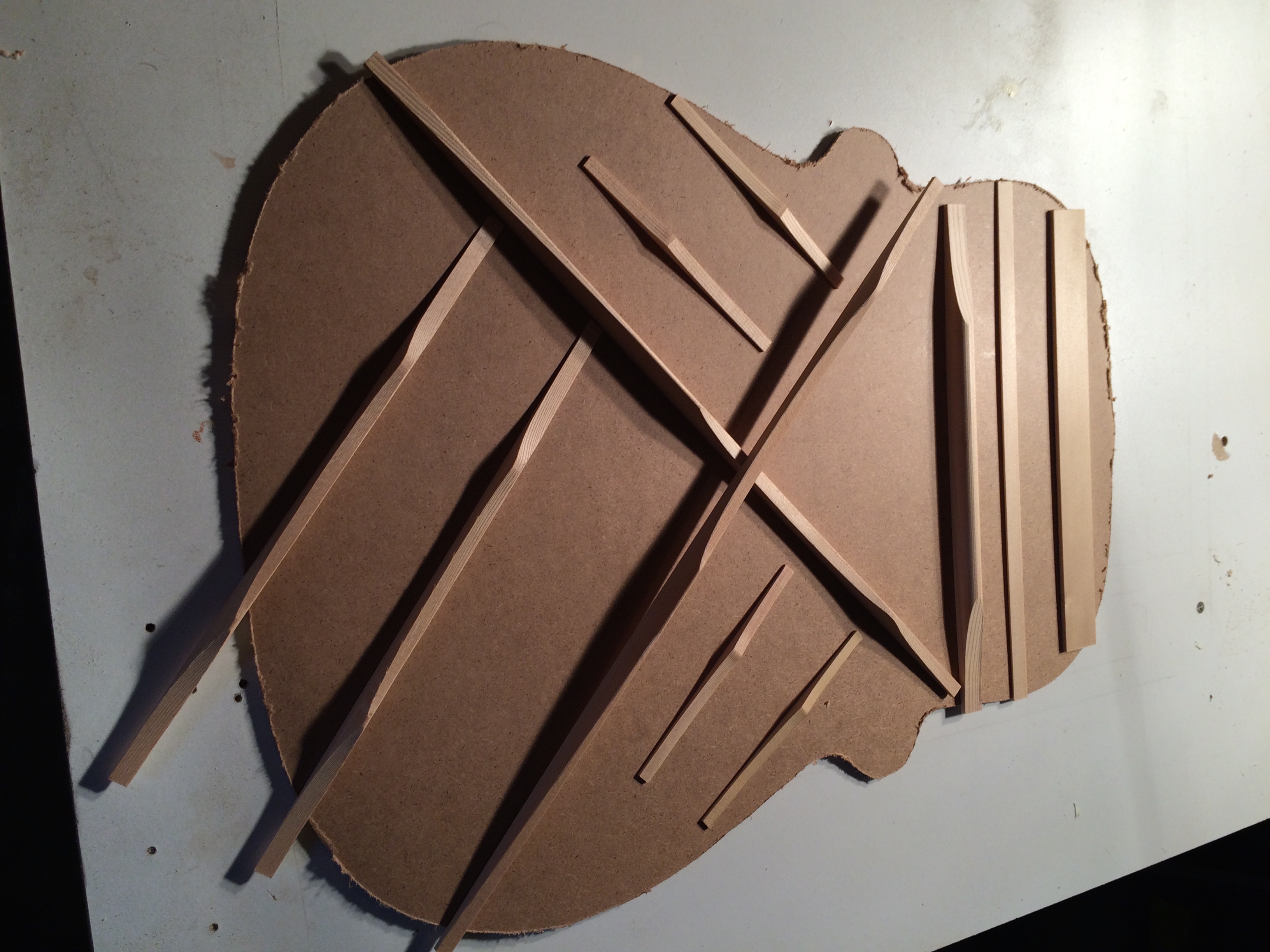

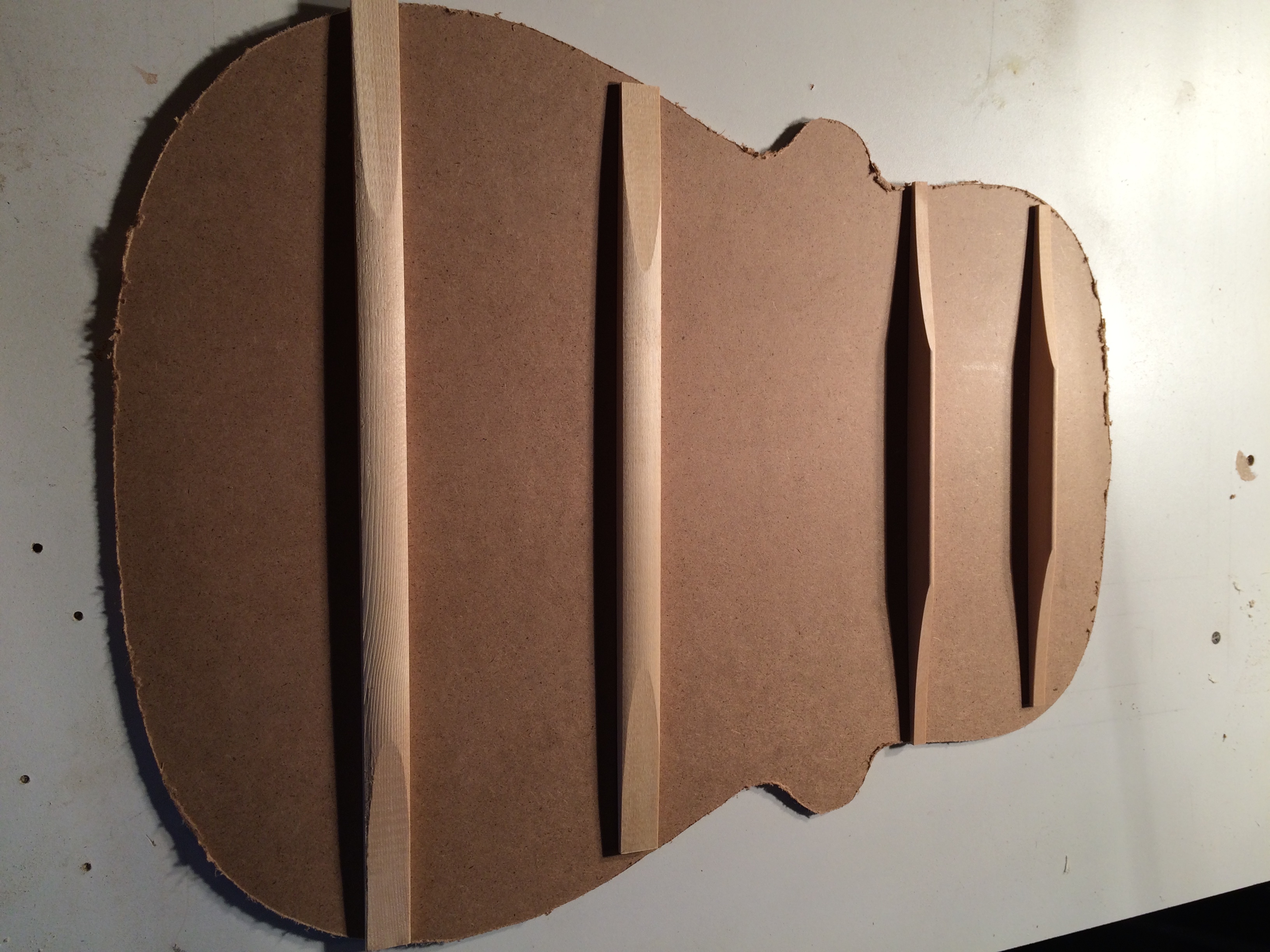

Now I can make complete sets at a fraction of the cost.
