Making a bridge

IMG_1072

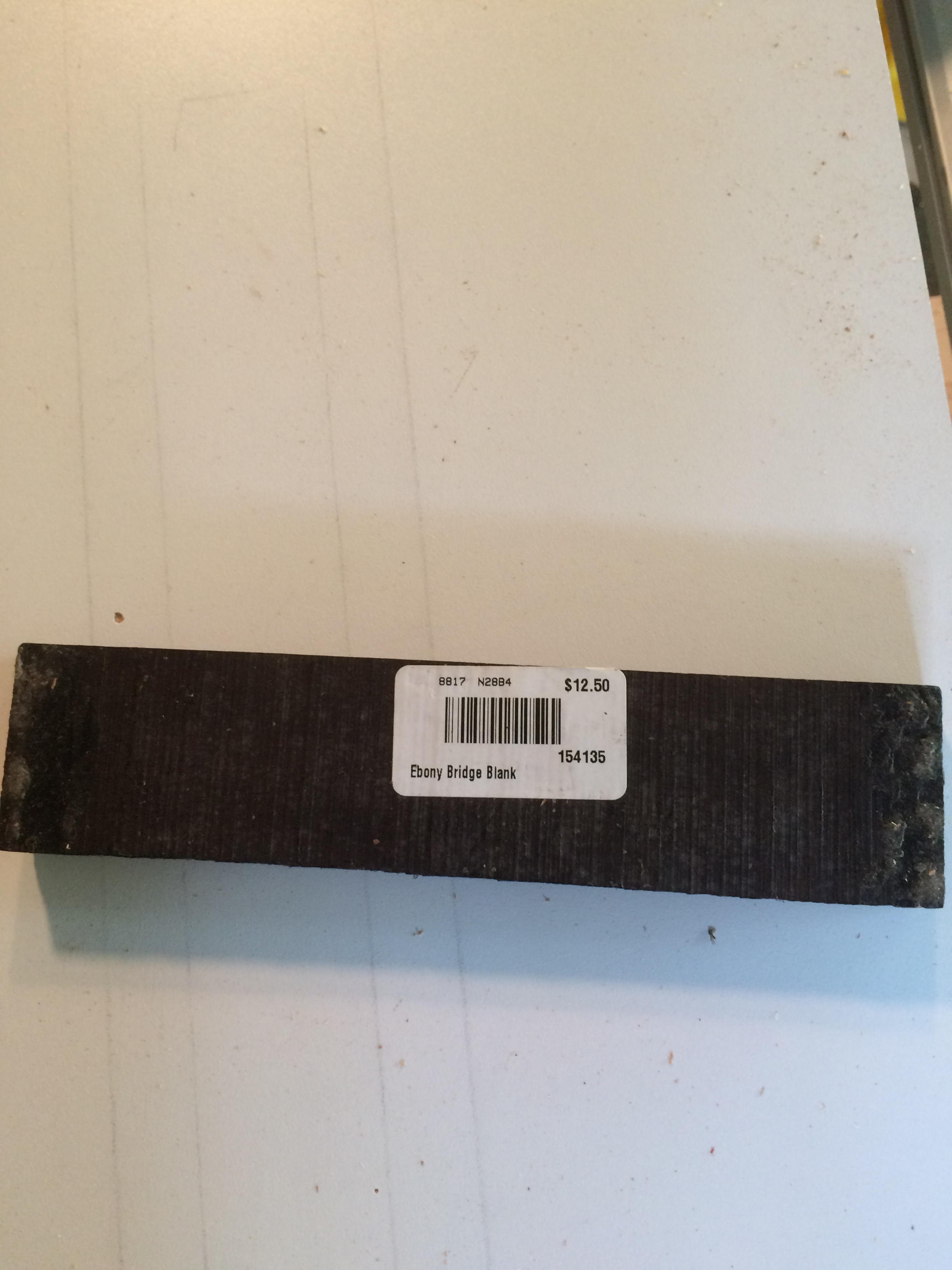

Starting with a piece of black ebony I bought from Woodcraft.

IMG_1265

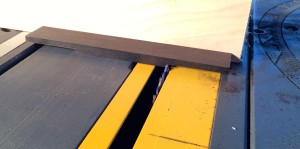

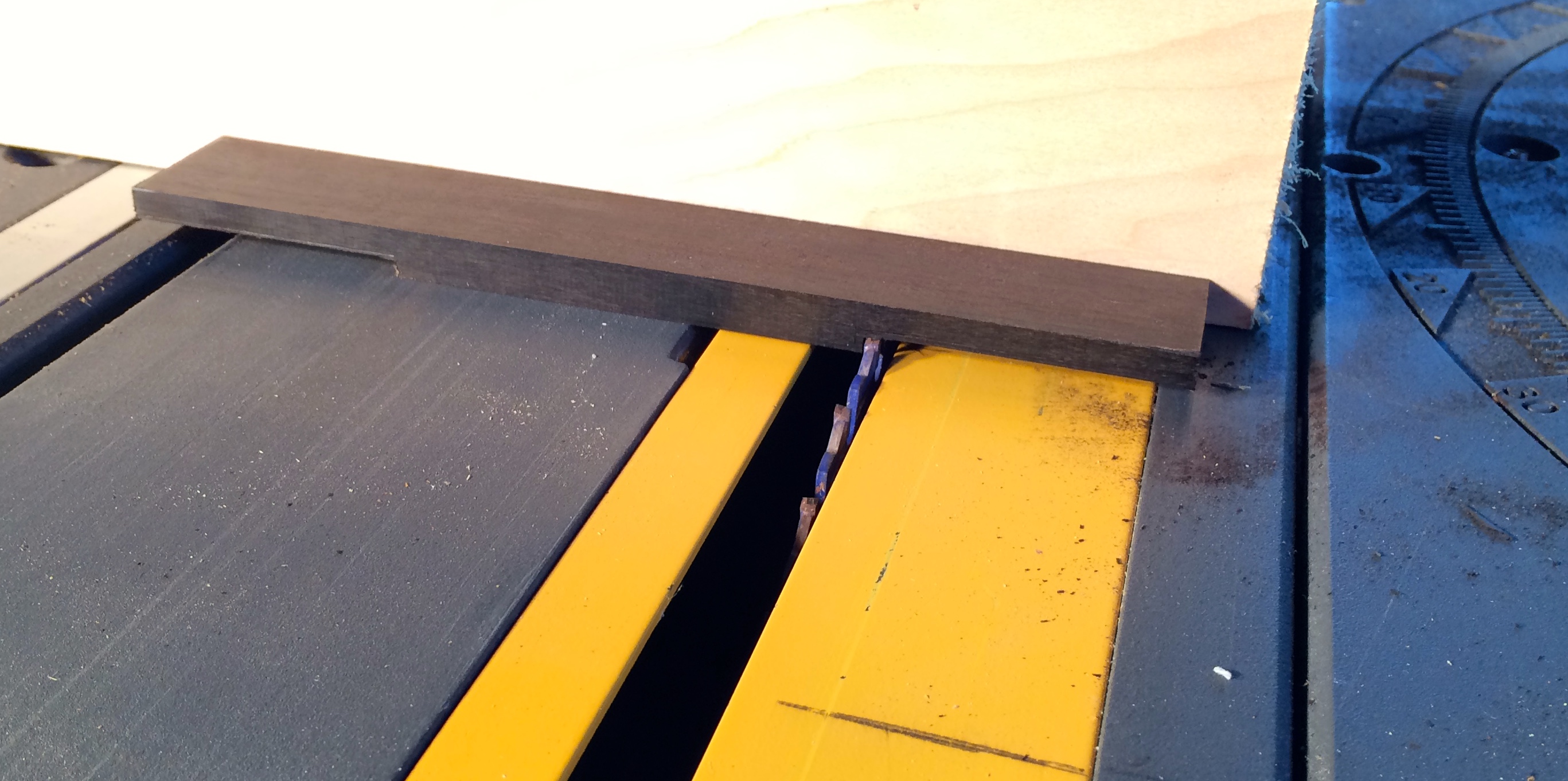

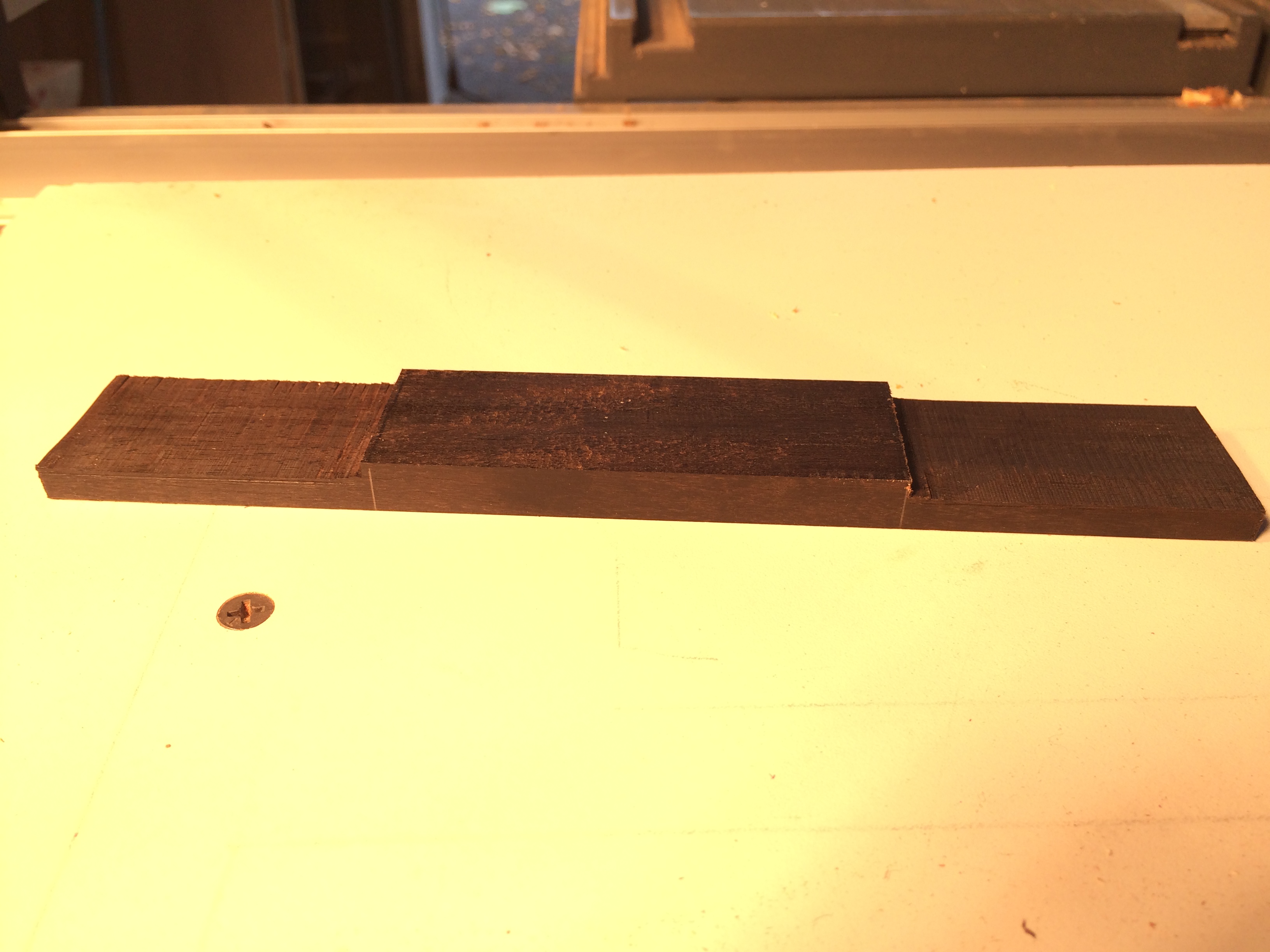

Cutting the shoulders on the table saw.

IMG_1266

IMG_1268

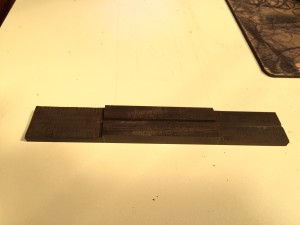

Make a slot on the table saw for the string ramp.

IMG_1272

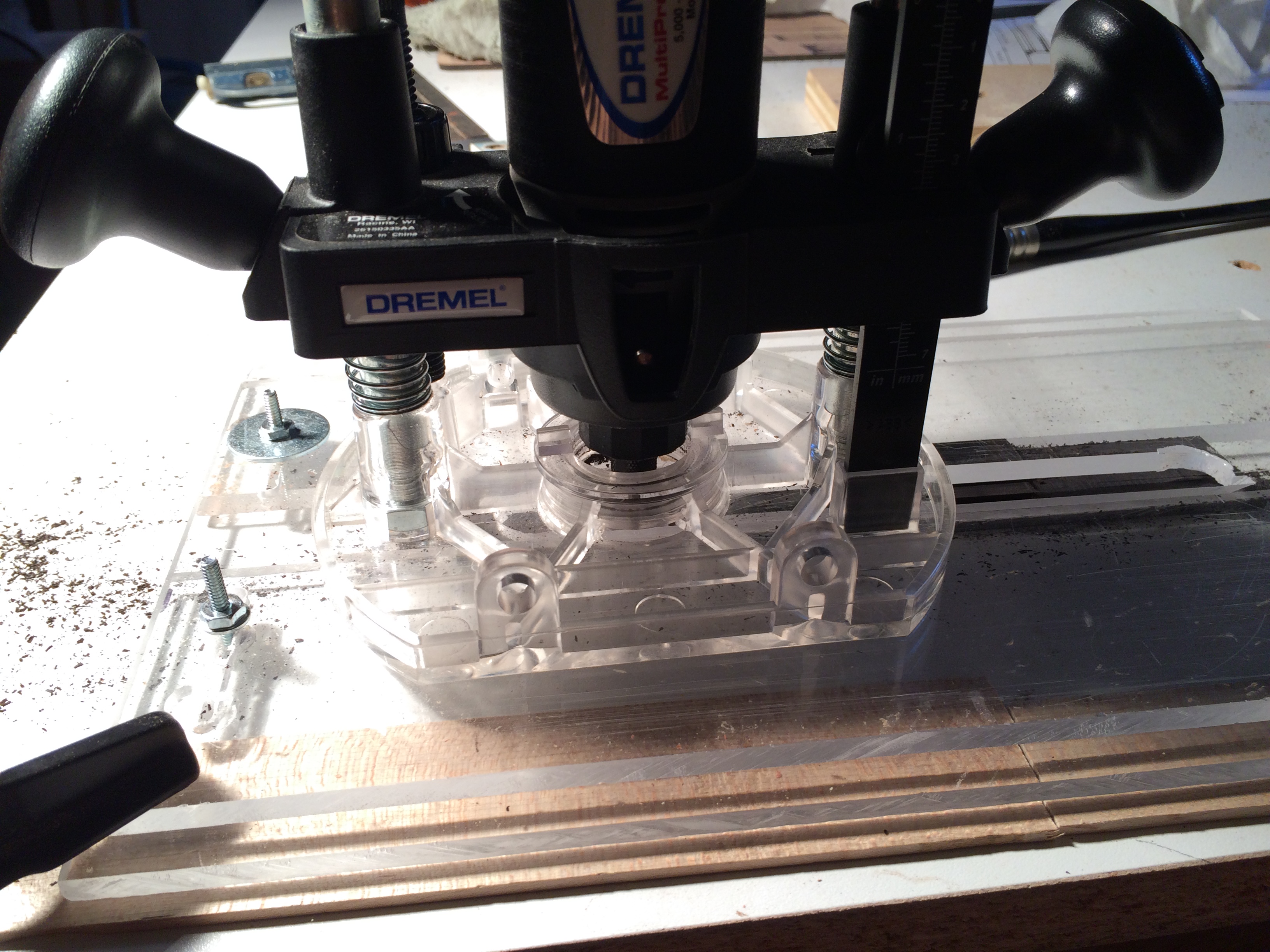

Using the router guide a 3/32nd slot is cut to fit the bridge.

IMG_1279

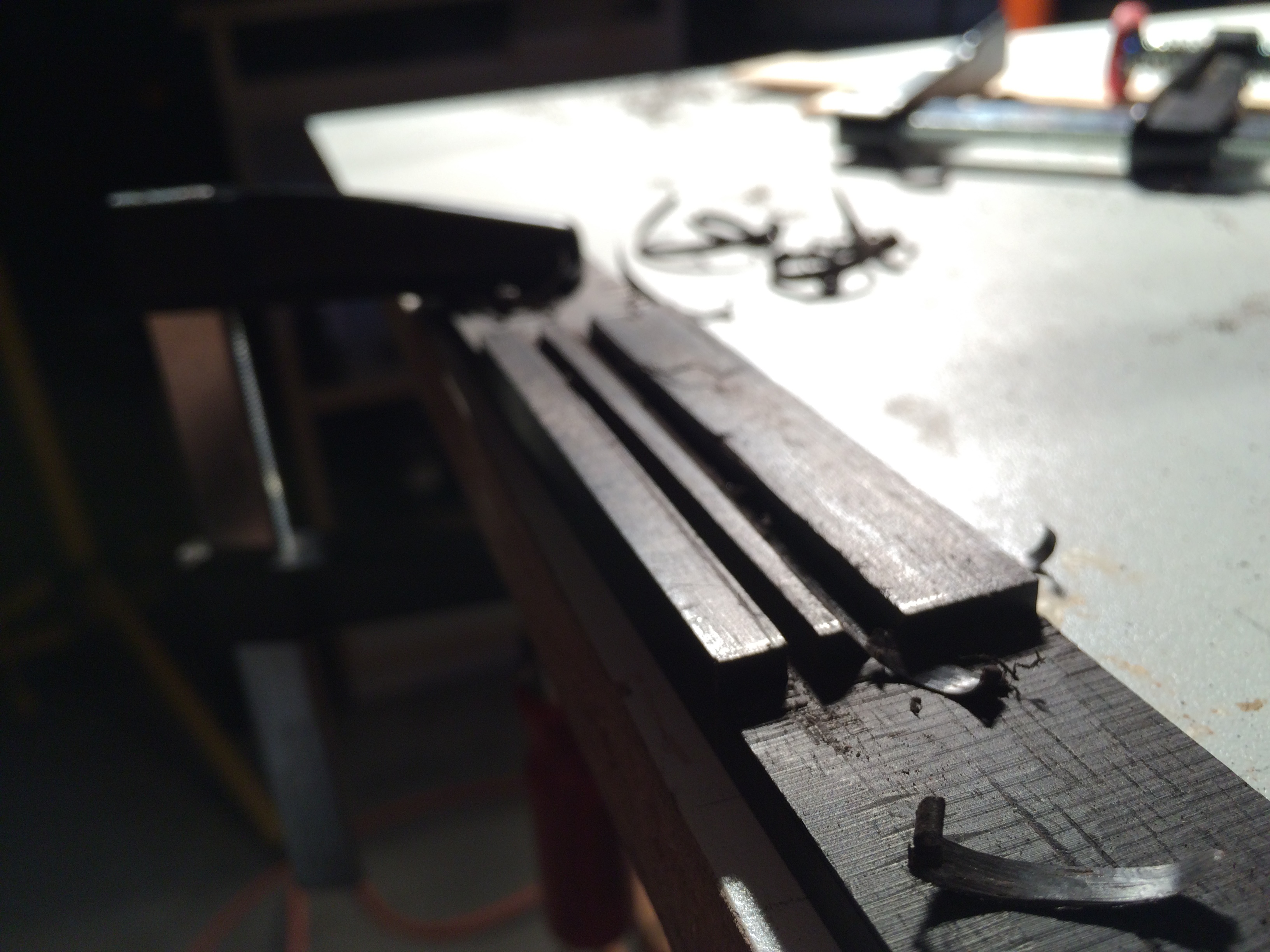

Next chisel the string ramp.

IMG_1282

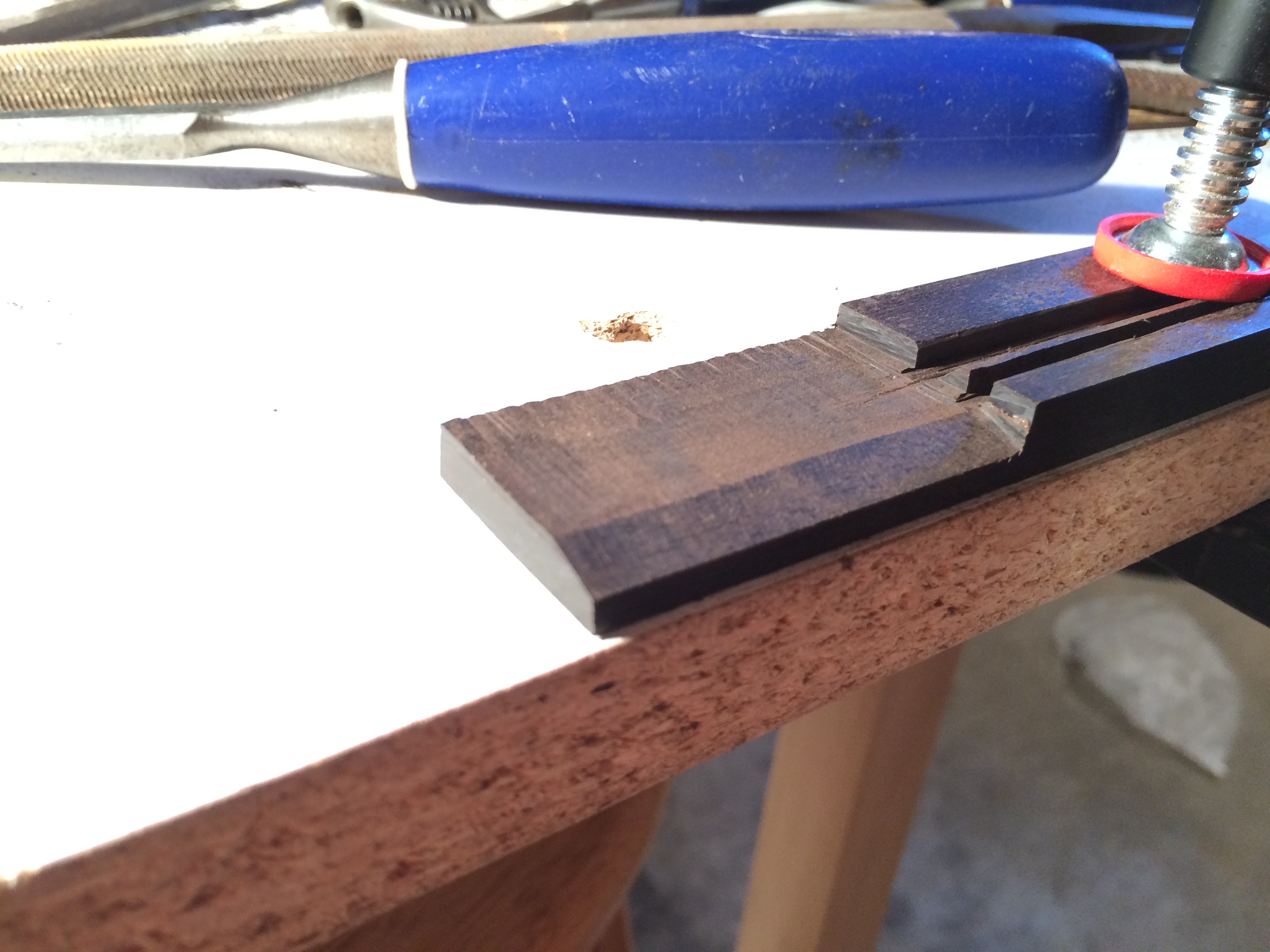

Starting a bevel that will round over to the other side.

IMG_1284

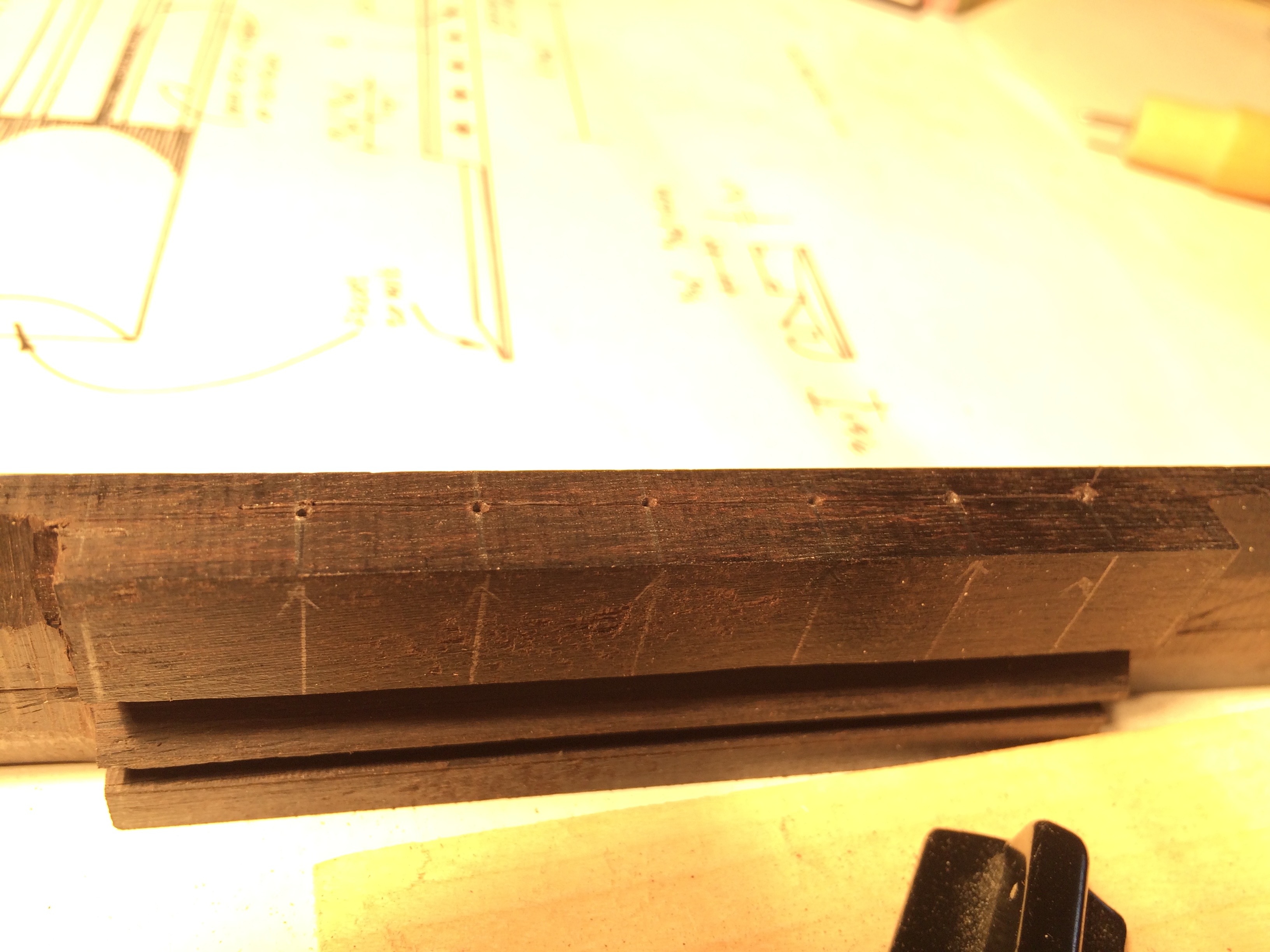

Lay out and drill string holes.

IMG_1291

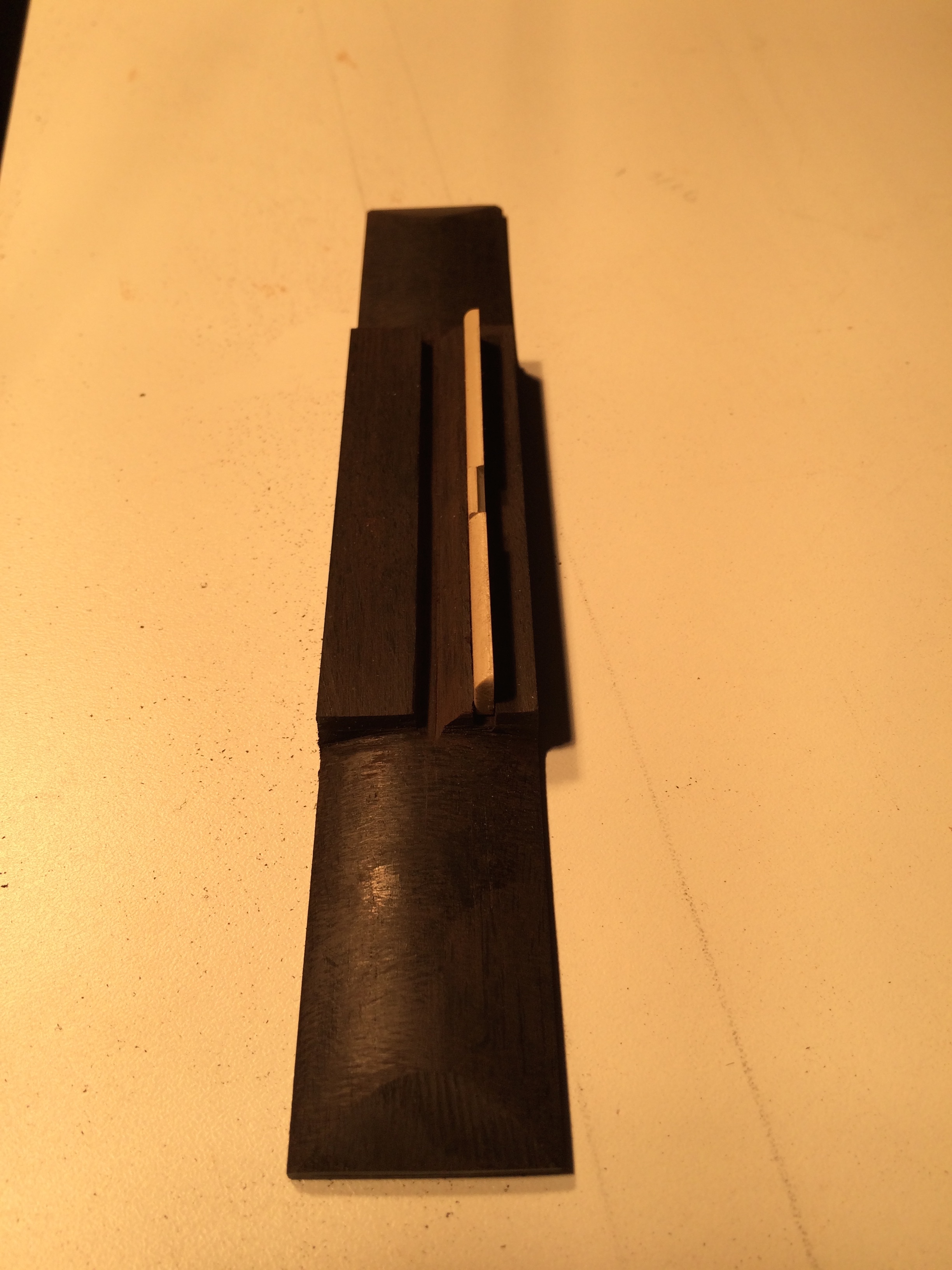

Finish by chiseling, scraping and sanding.

IMG_1292

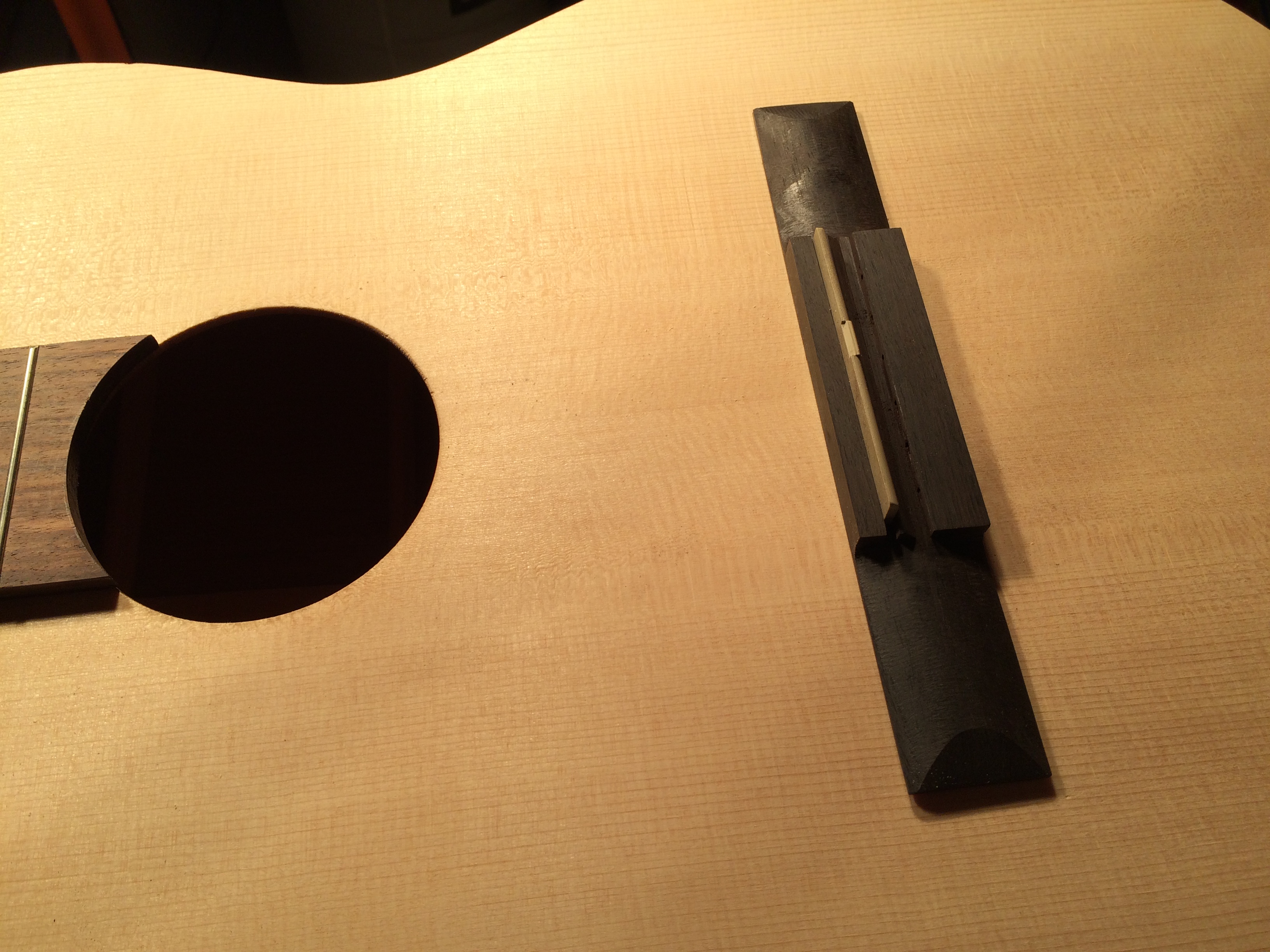

Showing approximately where it will go on the guitar.

IMG_1305

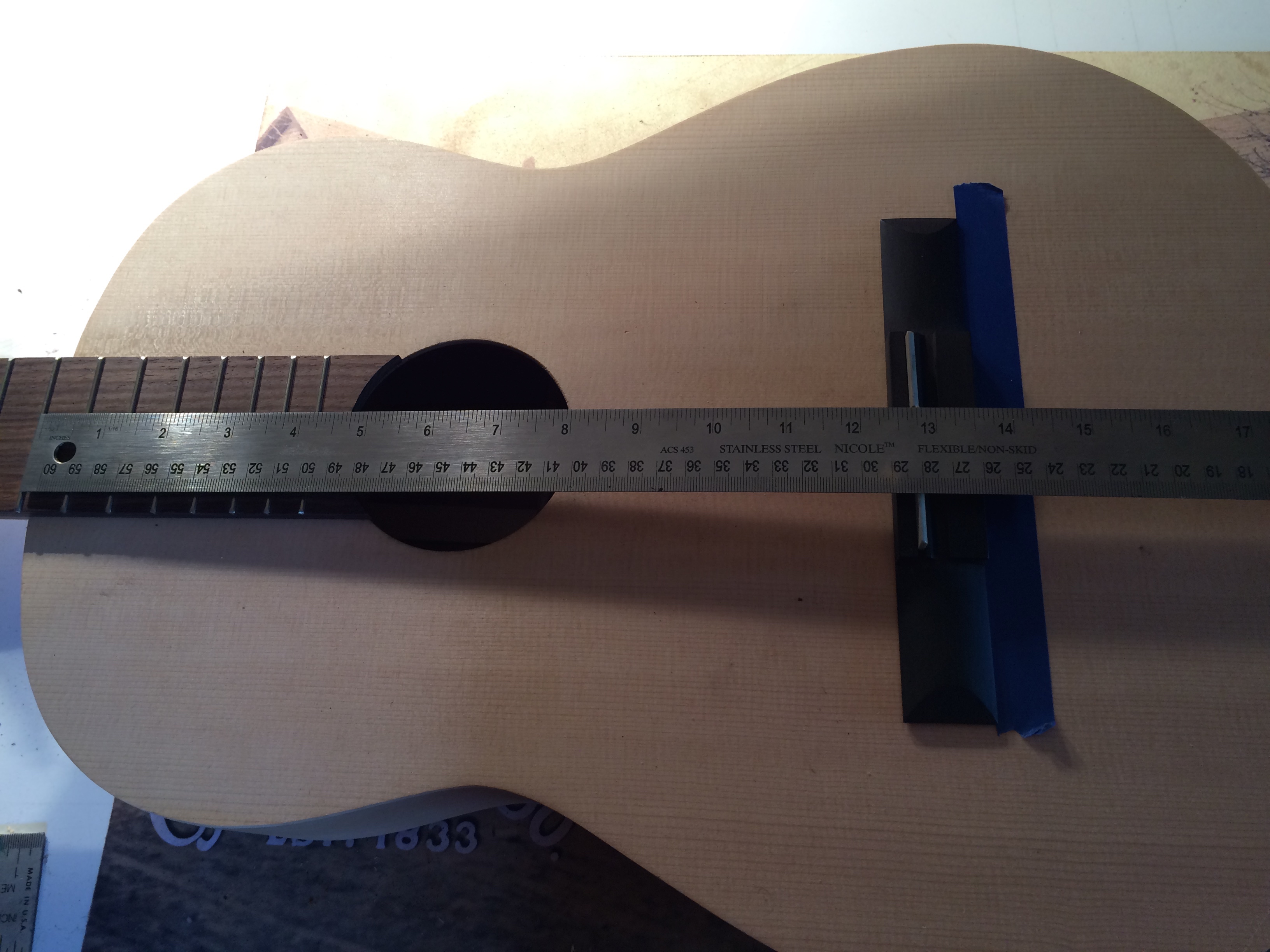

Finding the distance from the  12th fret to the bridge.

IMG_1309

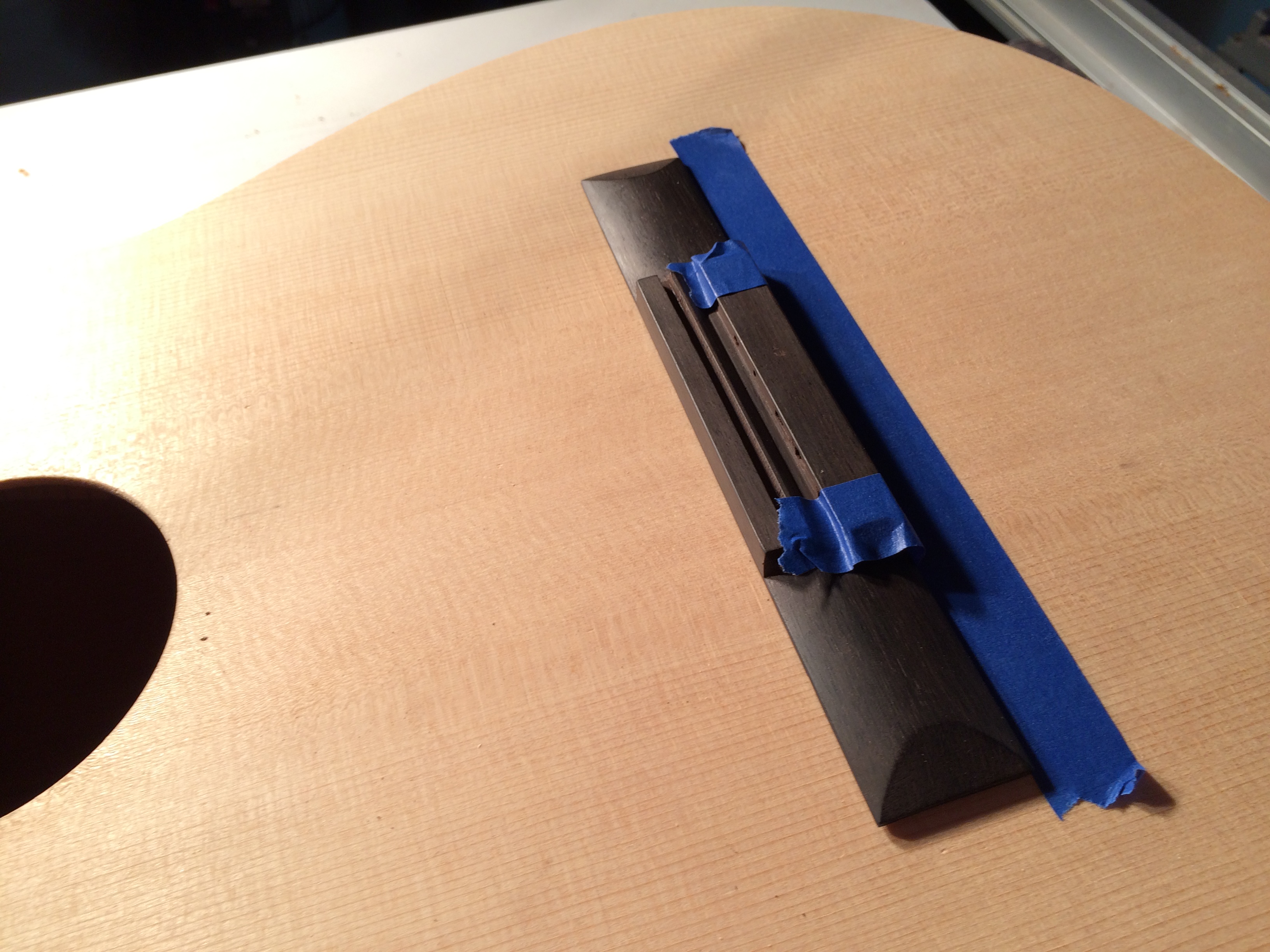

Using strait edges to center the saddle.

IMG_1313

Gluing the saddle.
