Pin template

IMG_0960

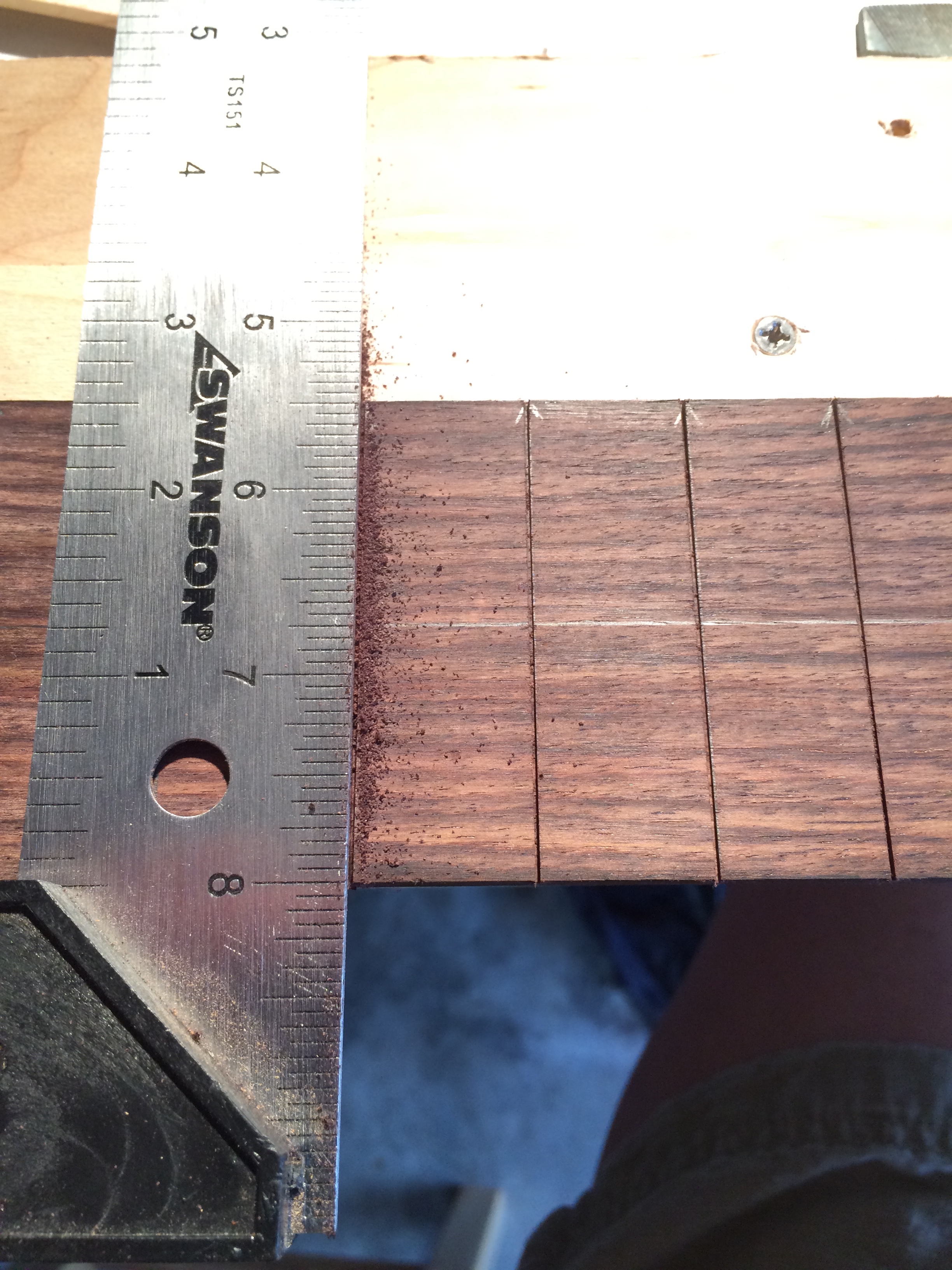

While the fret board is still square,the fret slots are laid out and cut.

IMG_0962

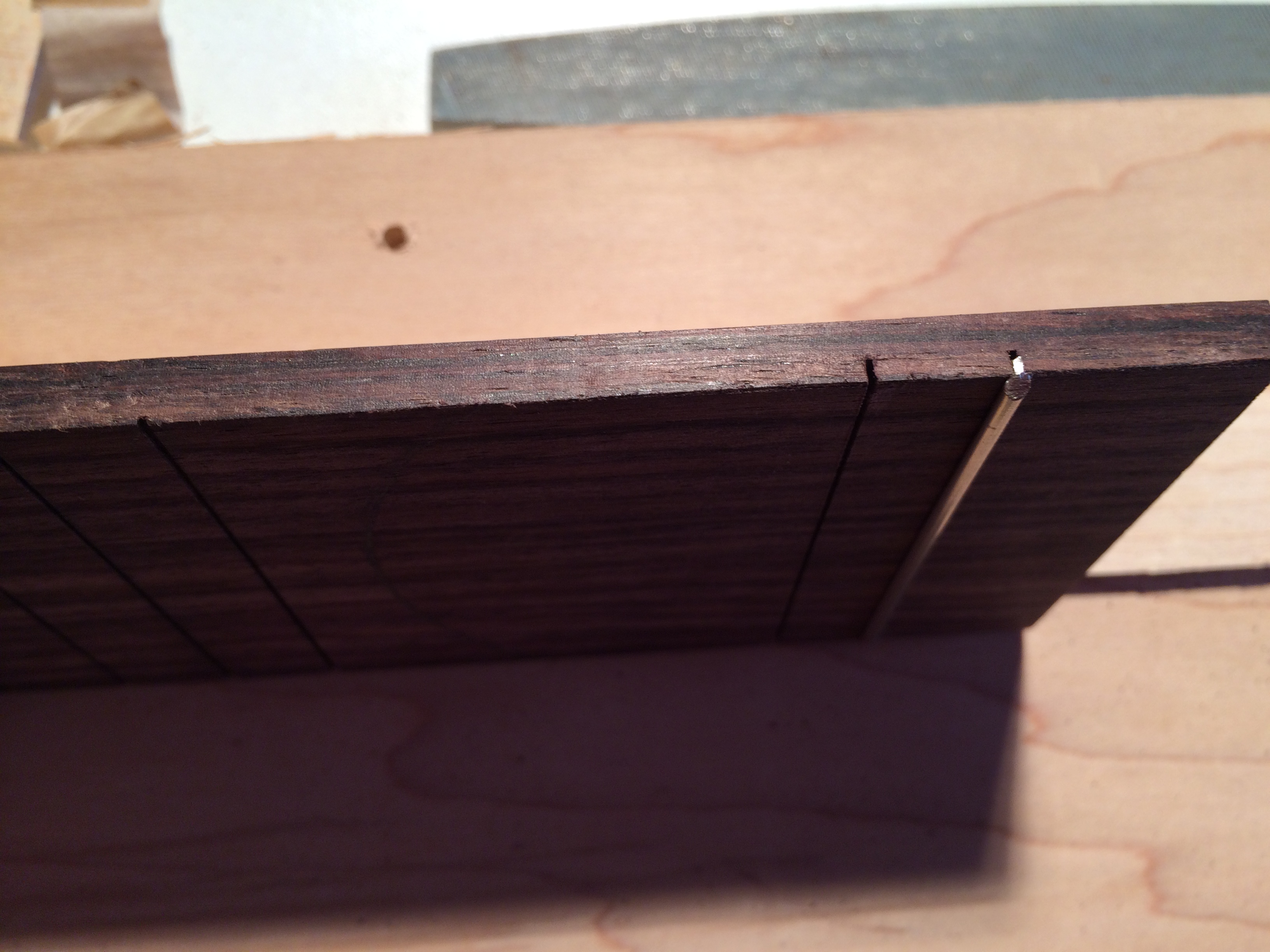

The slots are recut to a stopped depth and checked with a sample fret wire.

IMG_0973

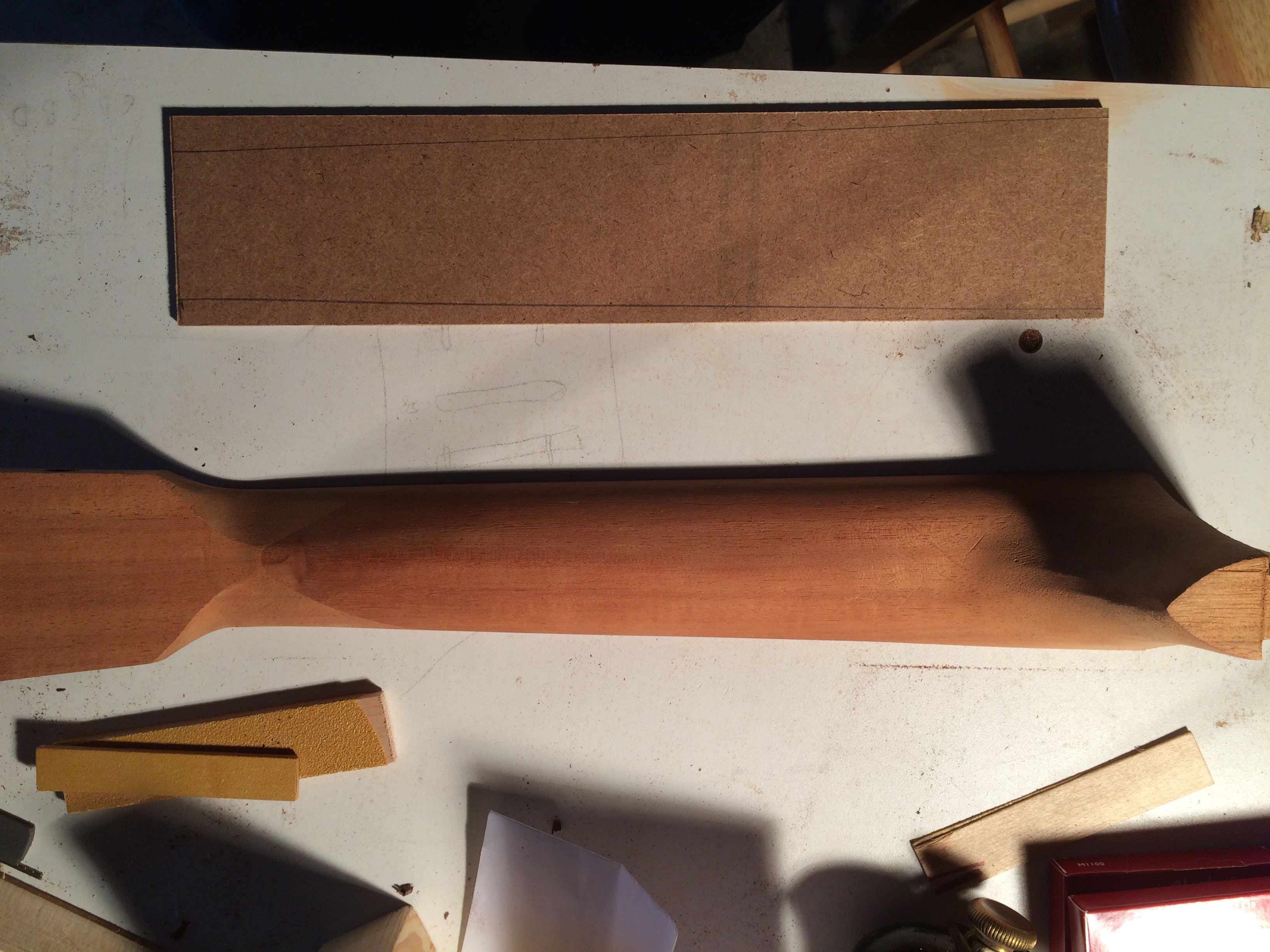

Then a template is laid out to match the neck.

IMG_0977

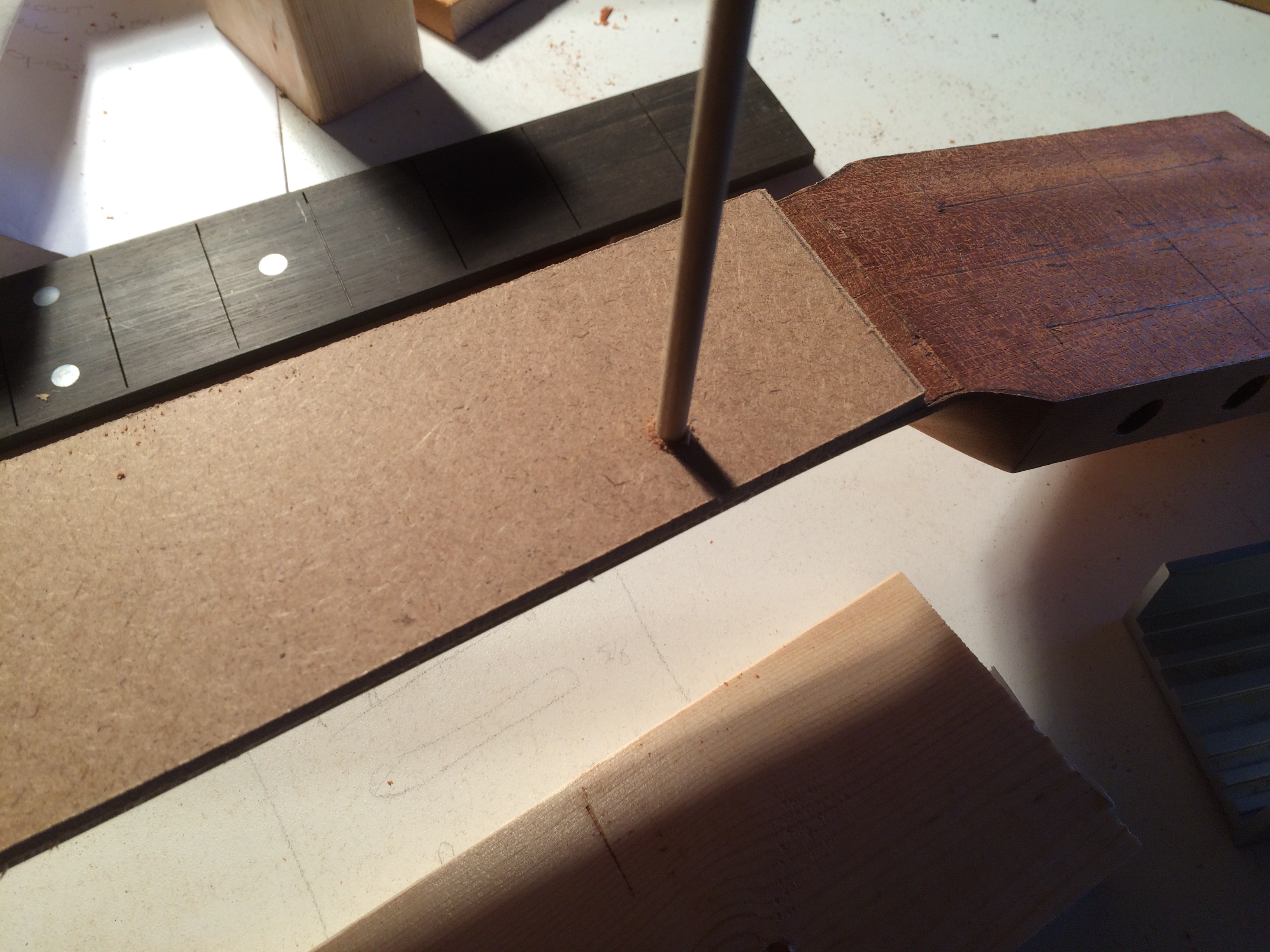

A wood dowel is drilled through the template into the neck.

IMG_0980

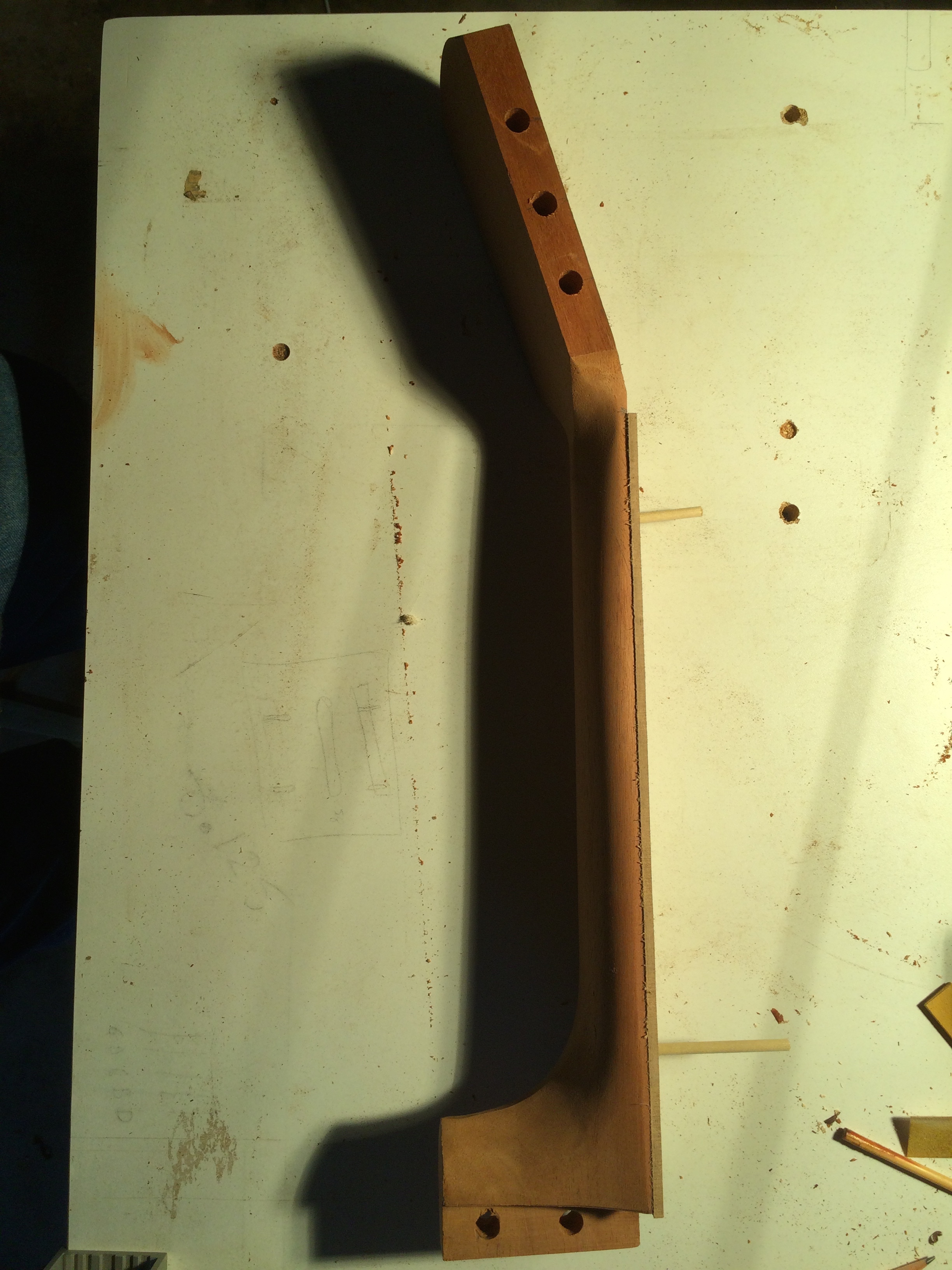

A second dowel is drilled in and the template is shaped to the neck.

IMG_0985

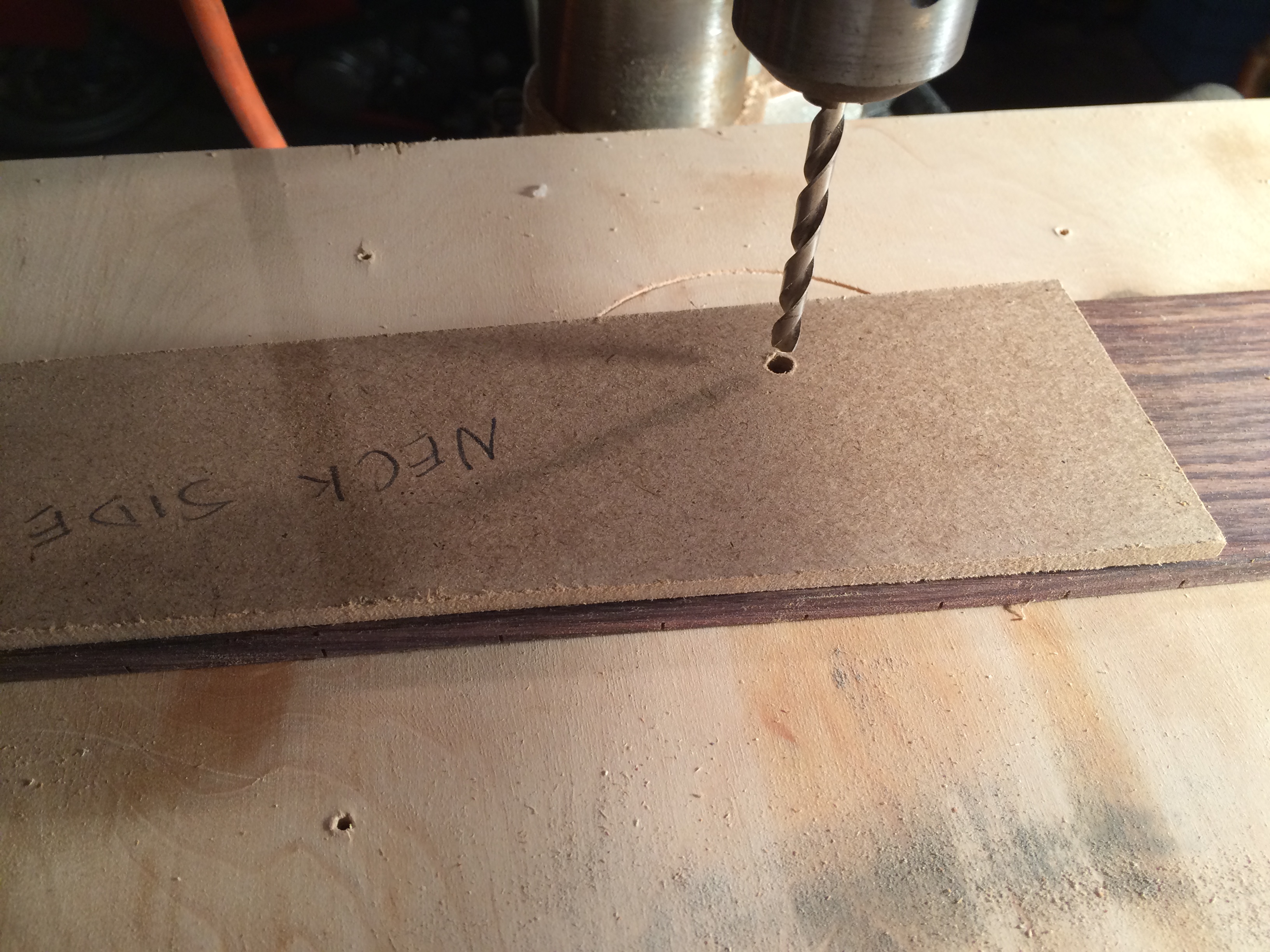

Next  the templet is used to drill a pin hole to about 1/16th of an inch.

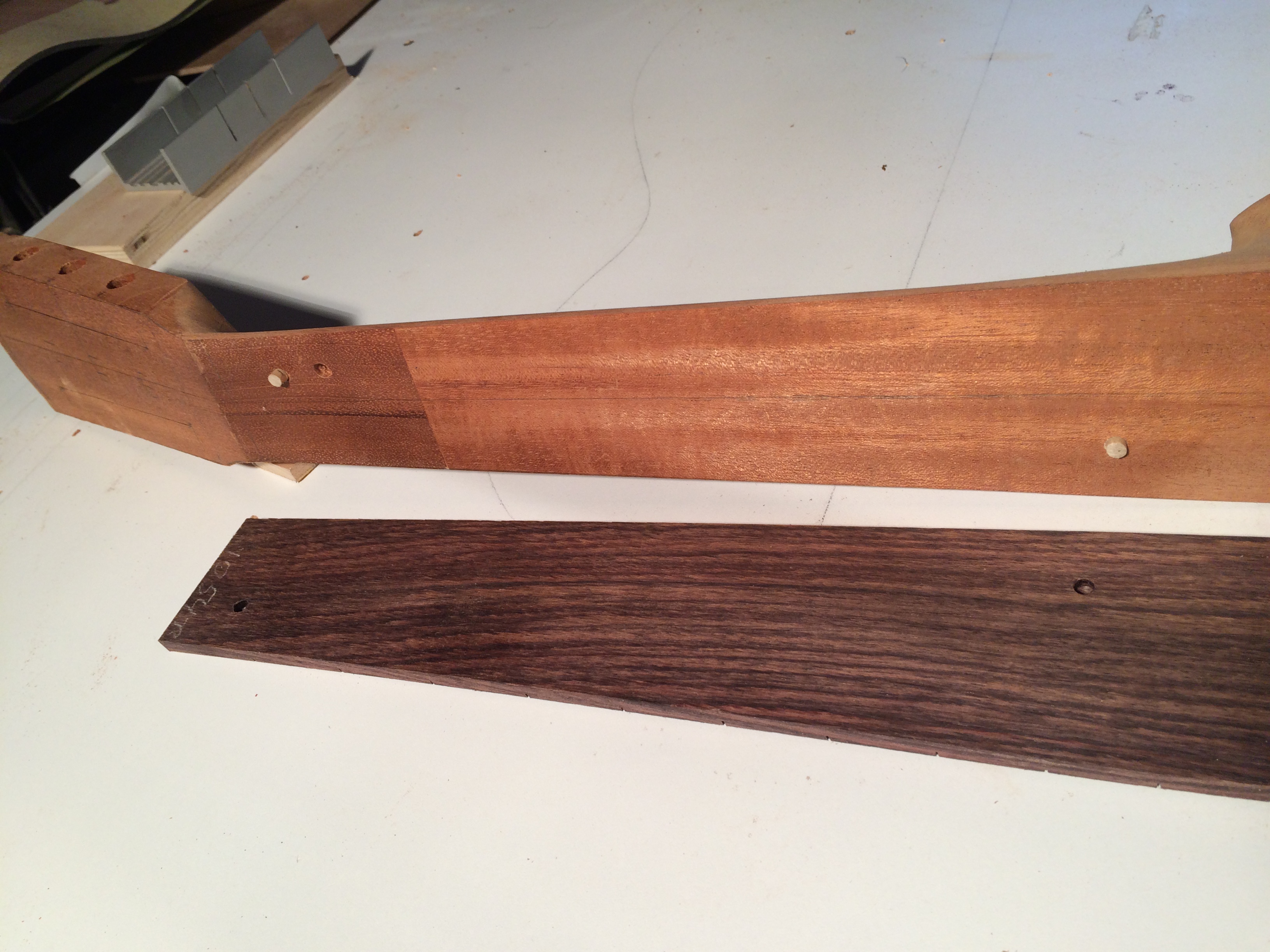

IMG_0998

Now the pins match both the neck and the fret board.

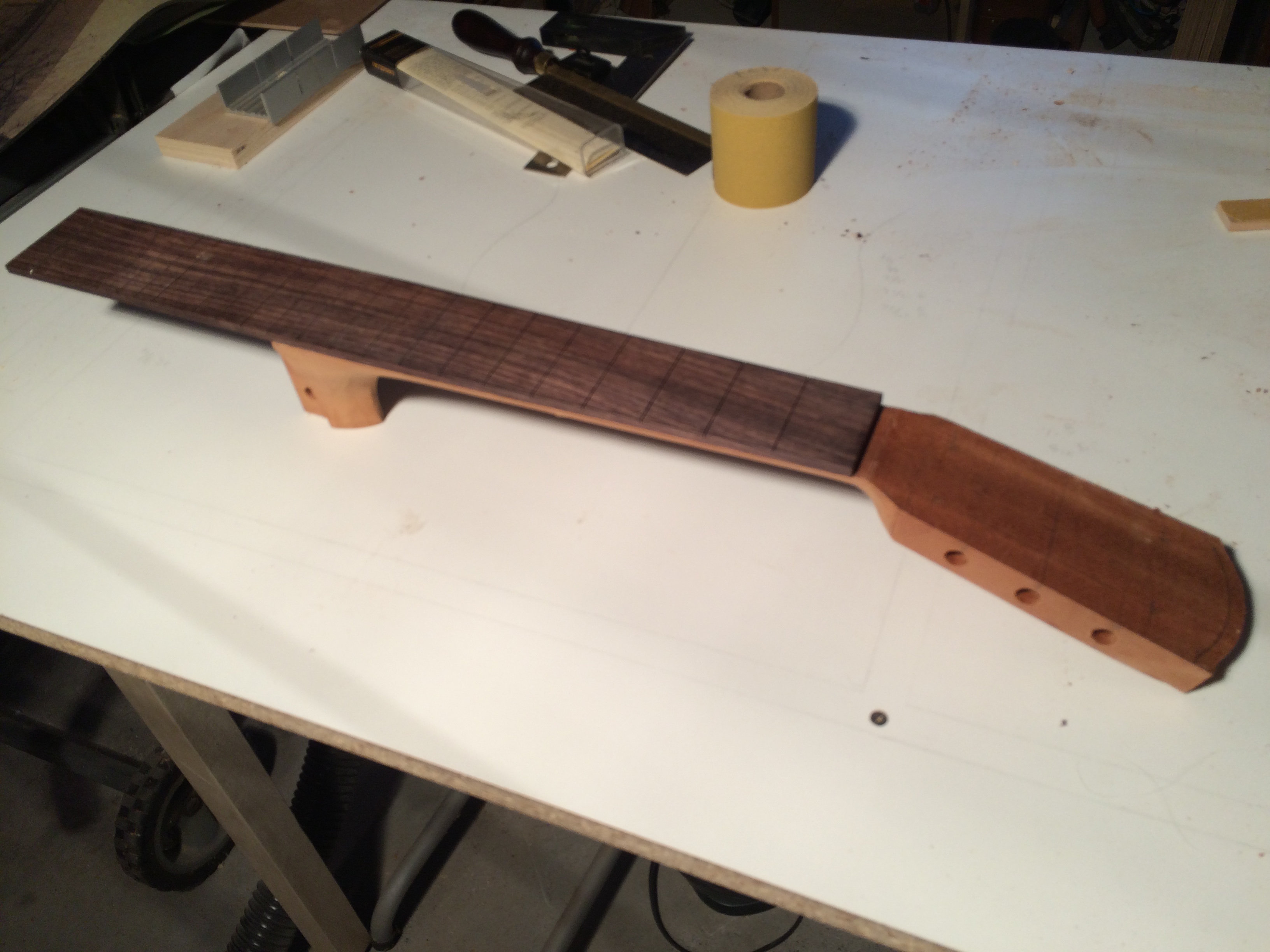

IMG_0989

 The fret board can now be shaped to fit the neck.

IMG_1033

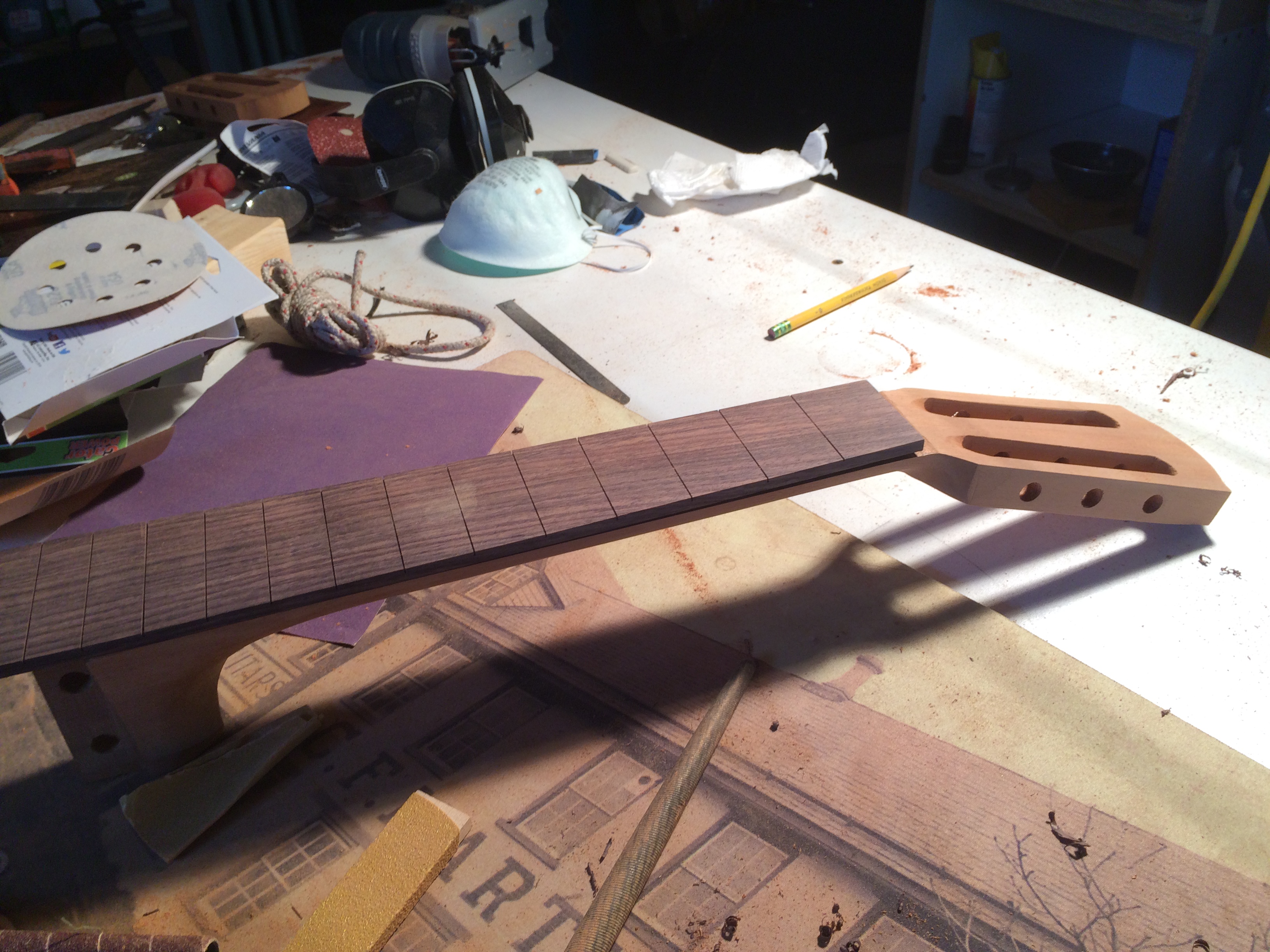

The fret board trimmed and sanded.

IMG_1035

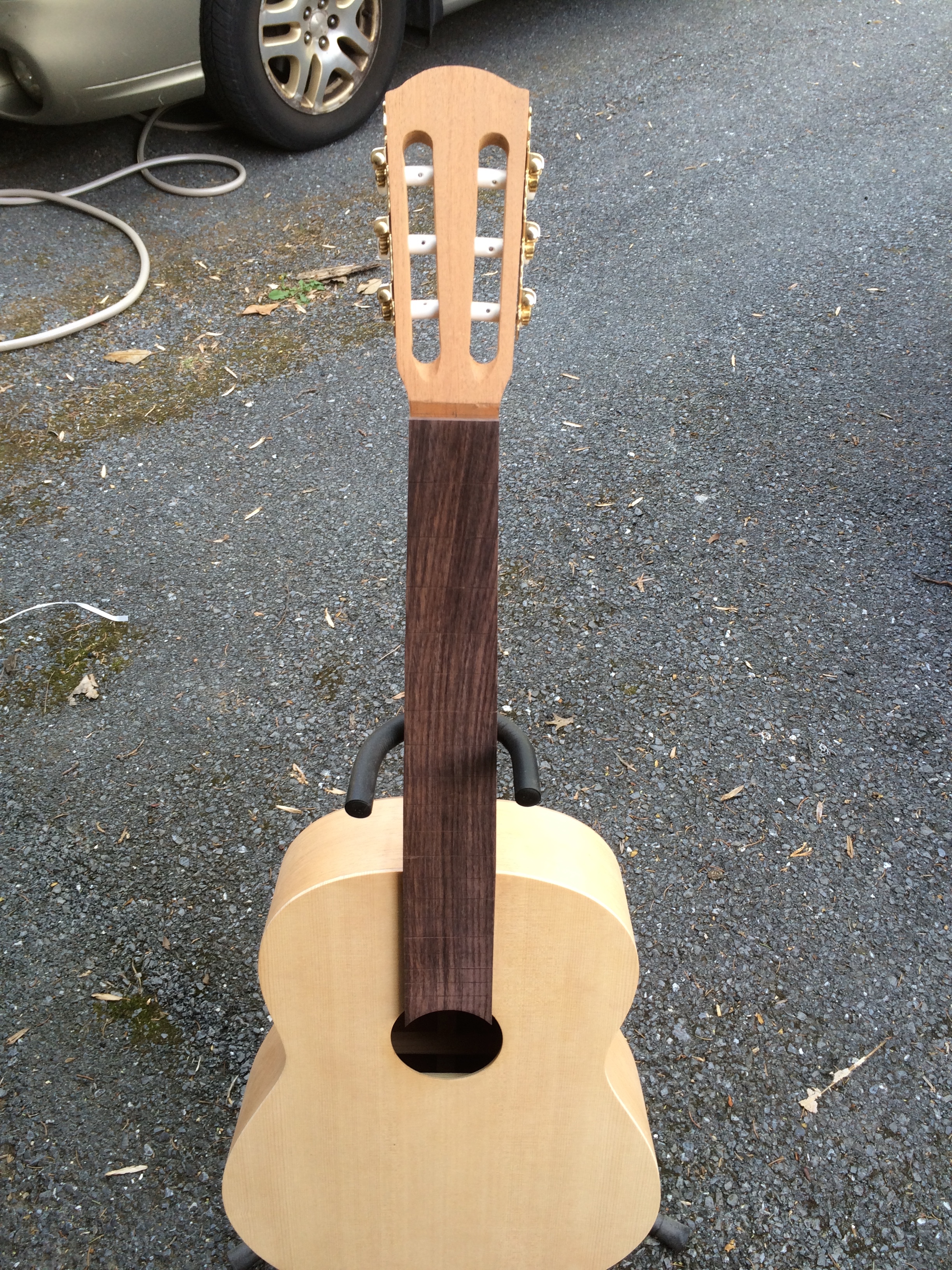

Next inlay the fret wire.
