Glue Board

IMG_0776

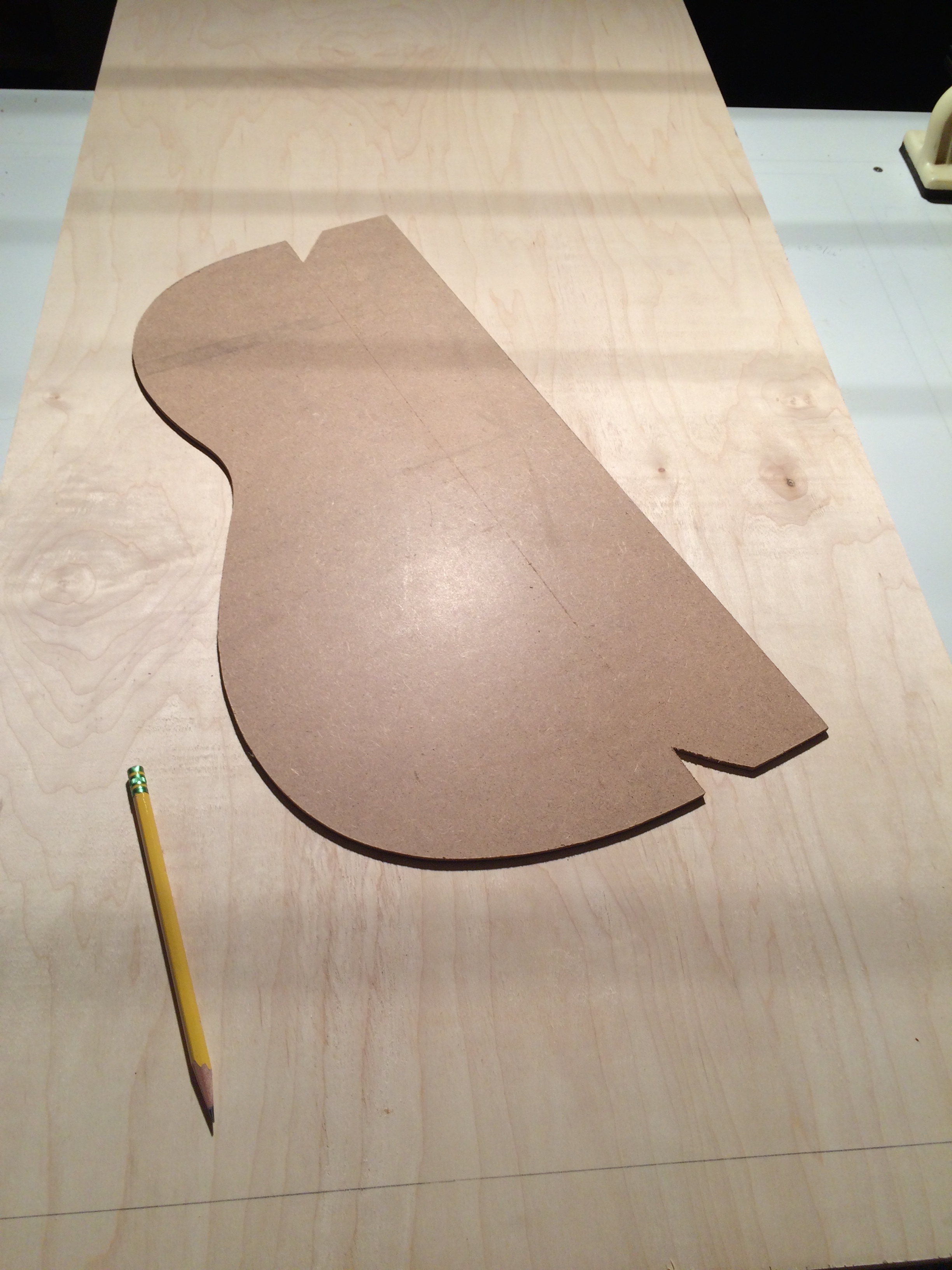

Lay out on 3/4 inch ply wood.

IMG_0778

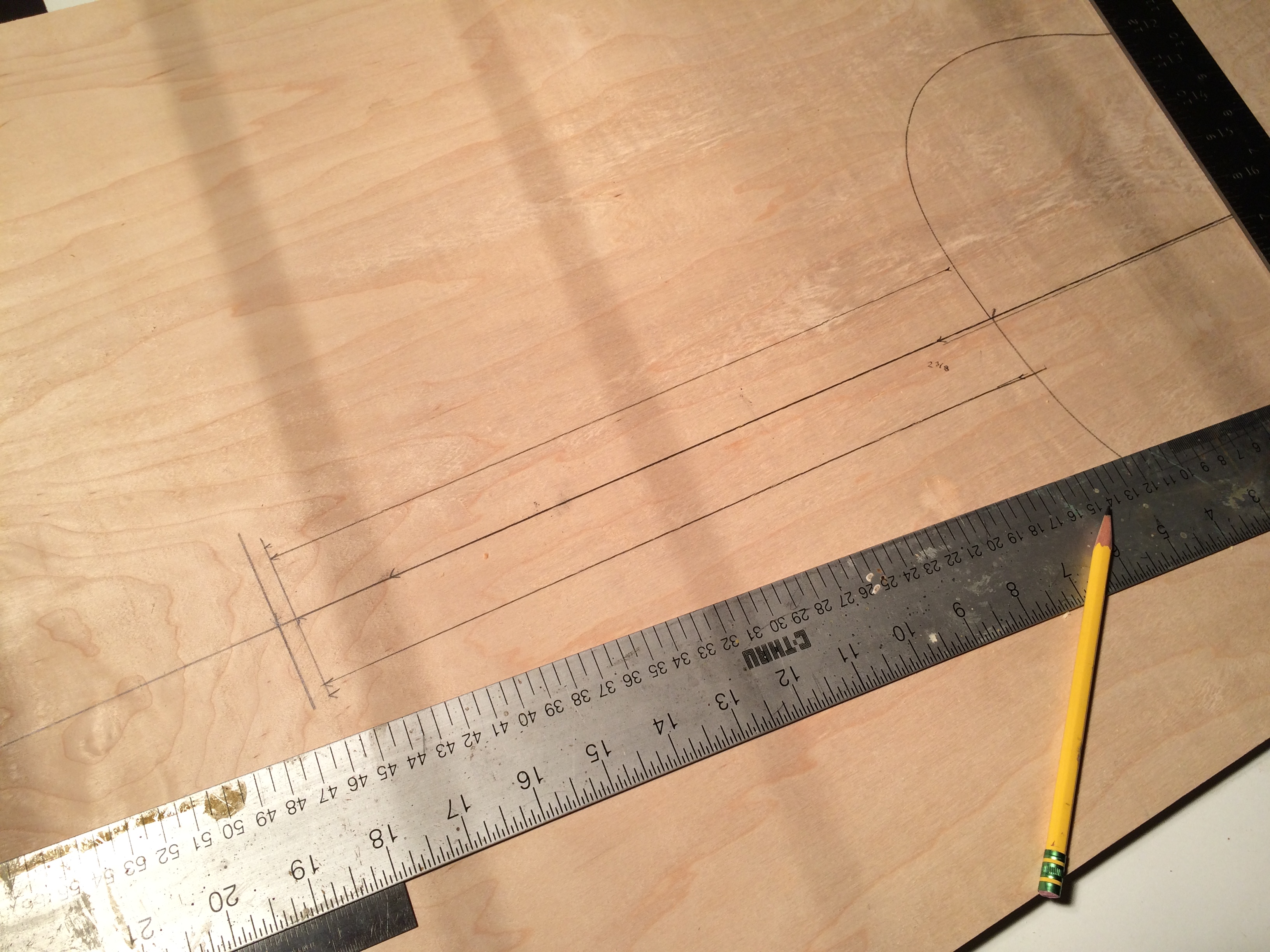

I’m  adding the neck to make sure i get the alinement nice and strait.

IMG_0781

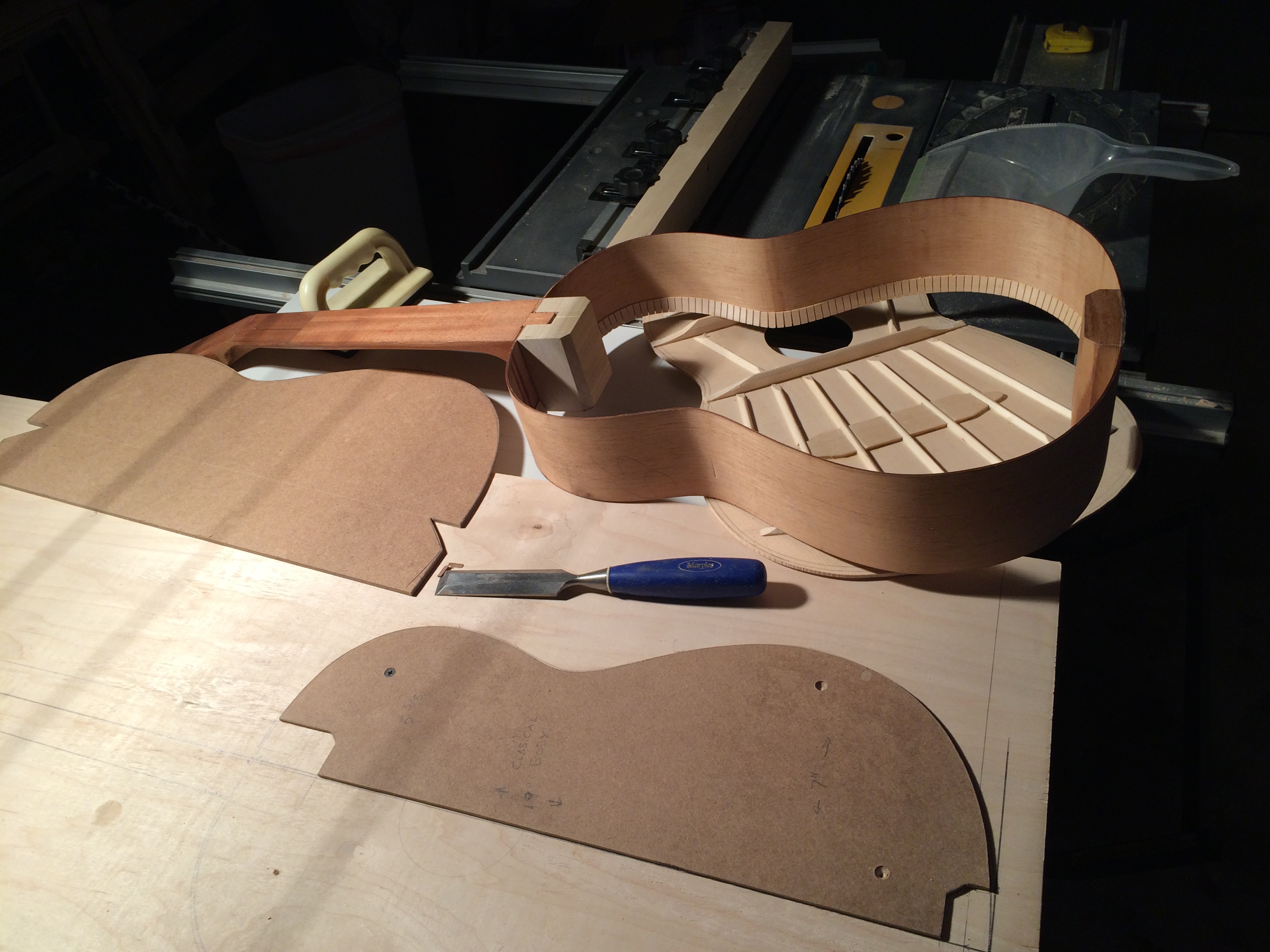

The side is used to trace out a second line.

IMG_0784

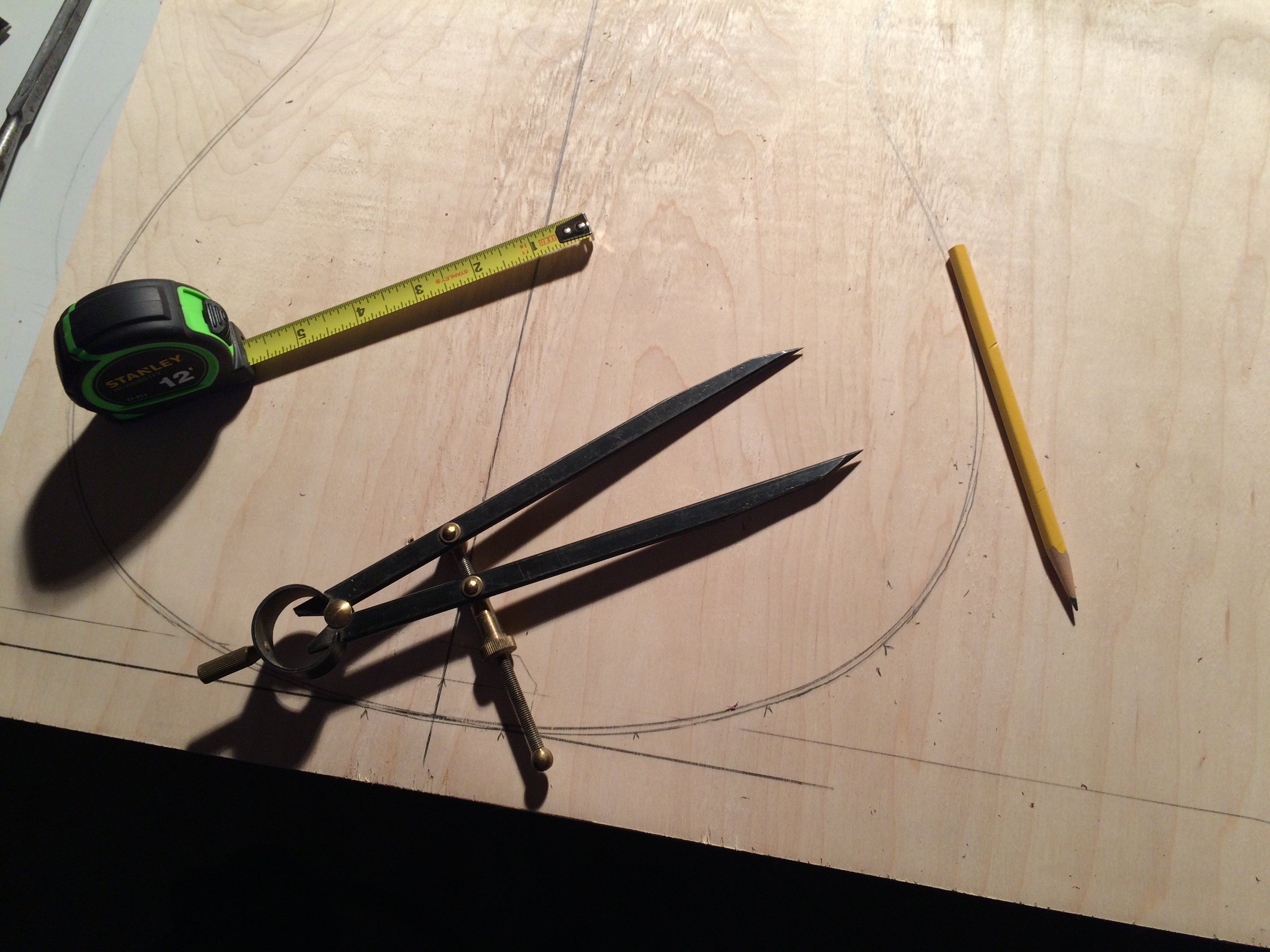

Dividers are used to mark off 7/8th increments around the perimeter.

IMG_0803

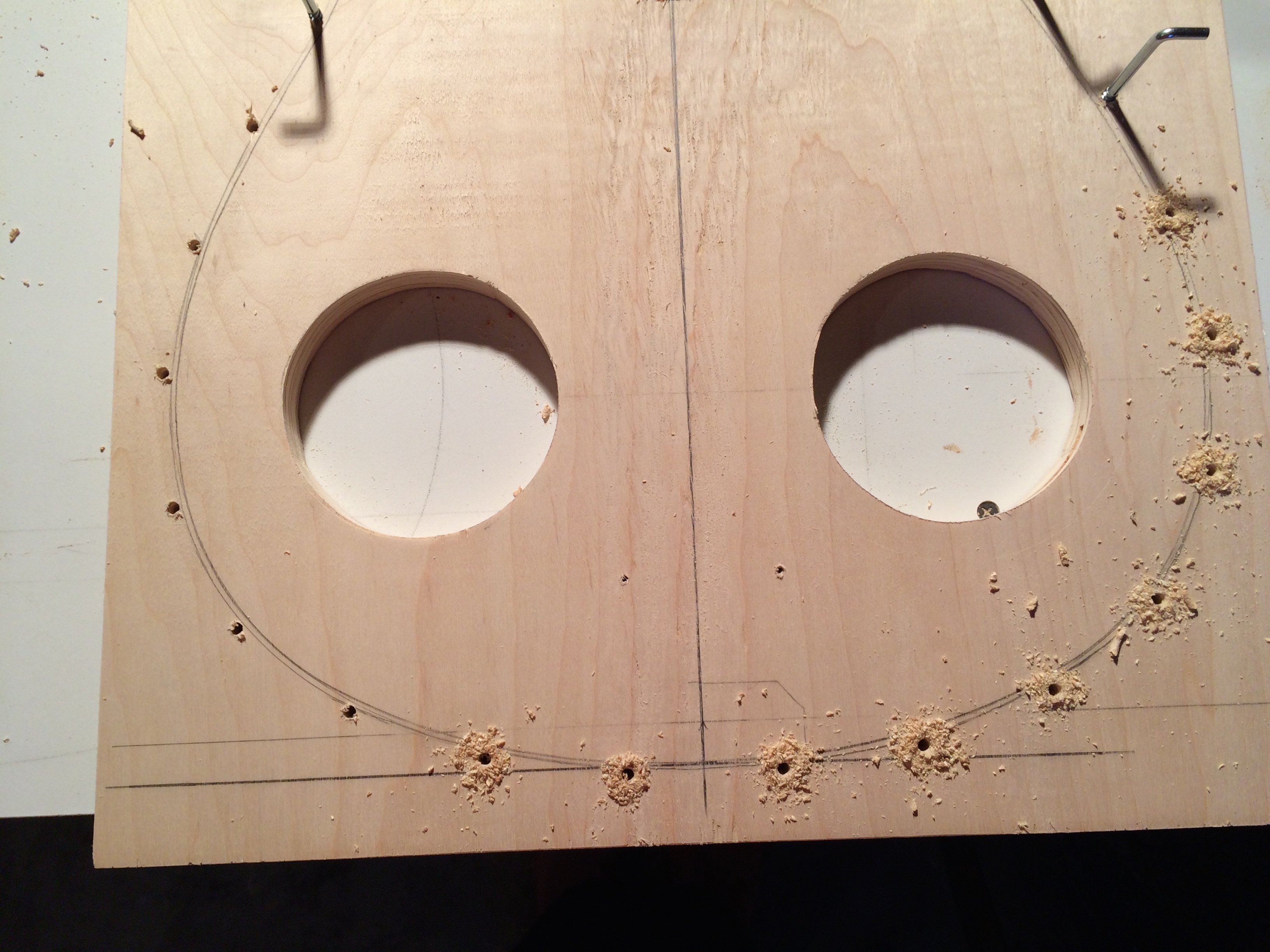

4 inch holes are cut and small holes are drilled.

IMG_0807

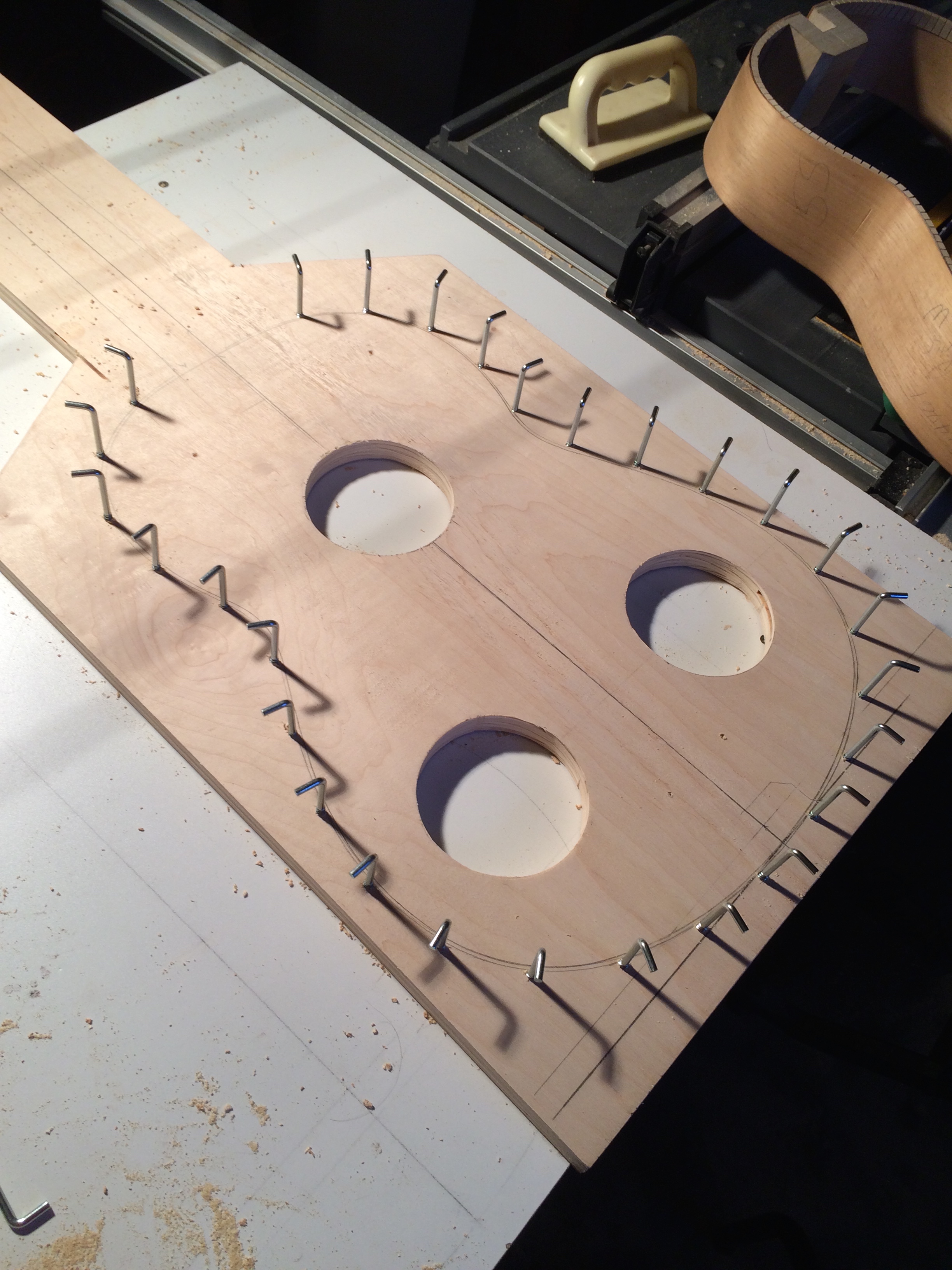

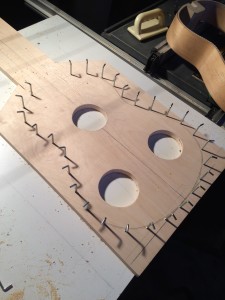

L hooks are screwed in.

IMG_0809

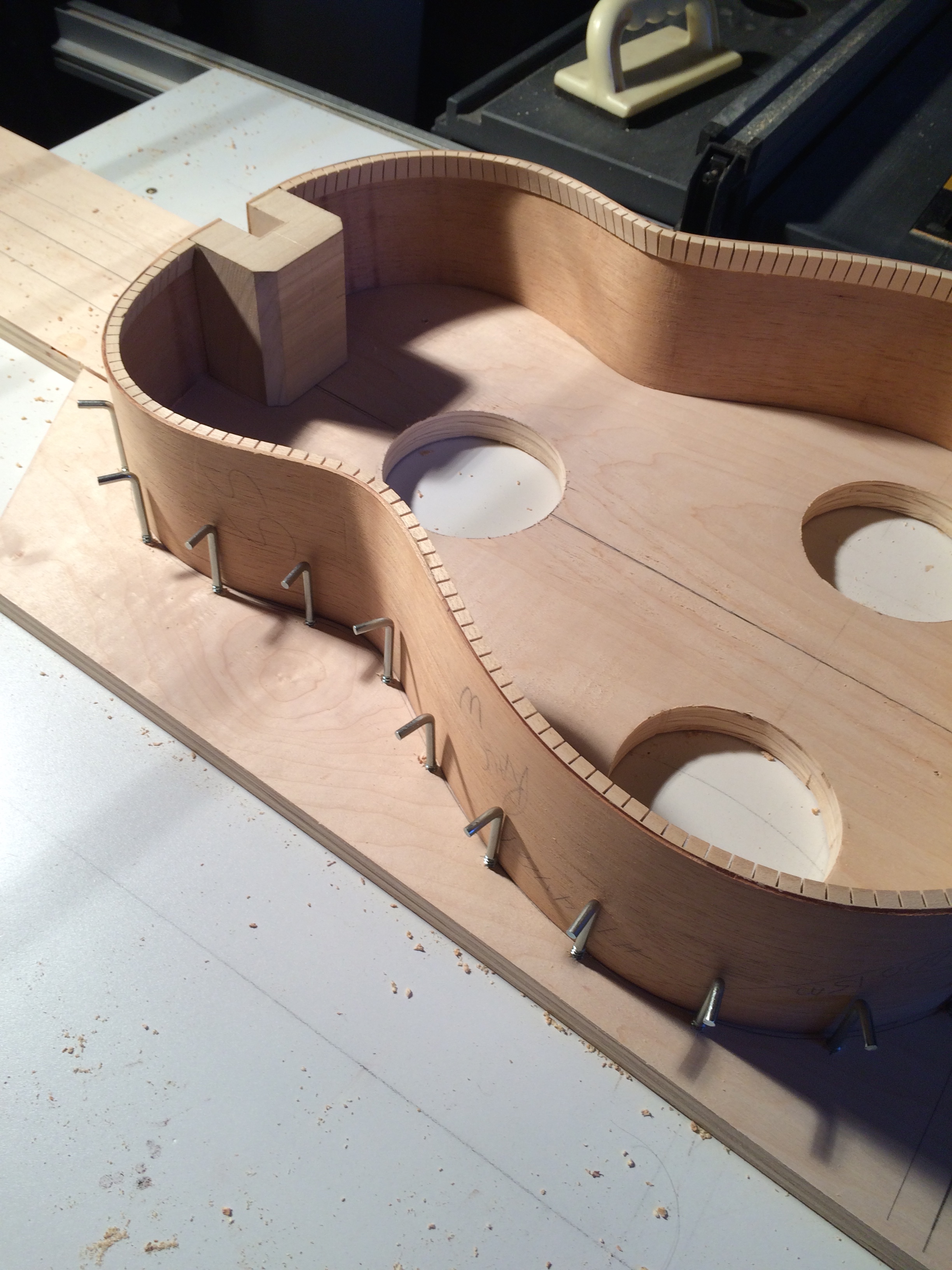

The L hooks now keep the sides in a place ensuring symmetry.

IMG_0810

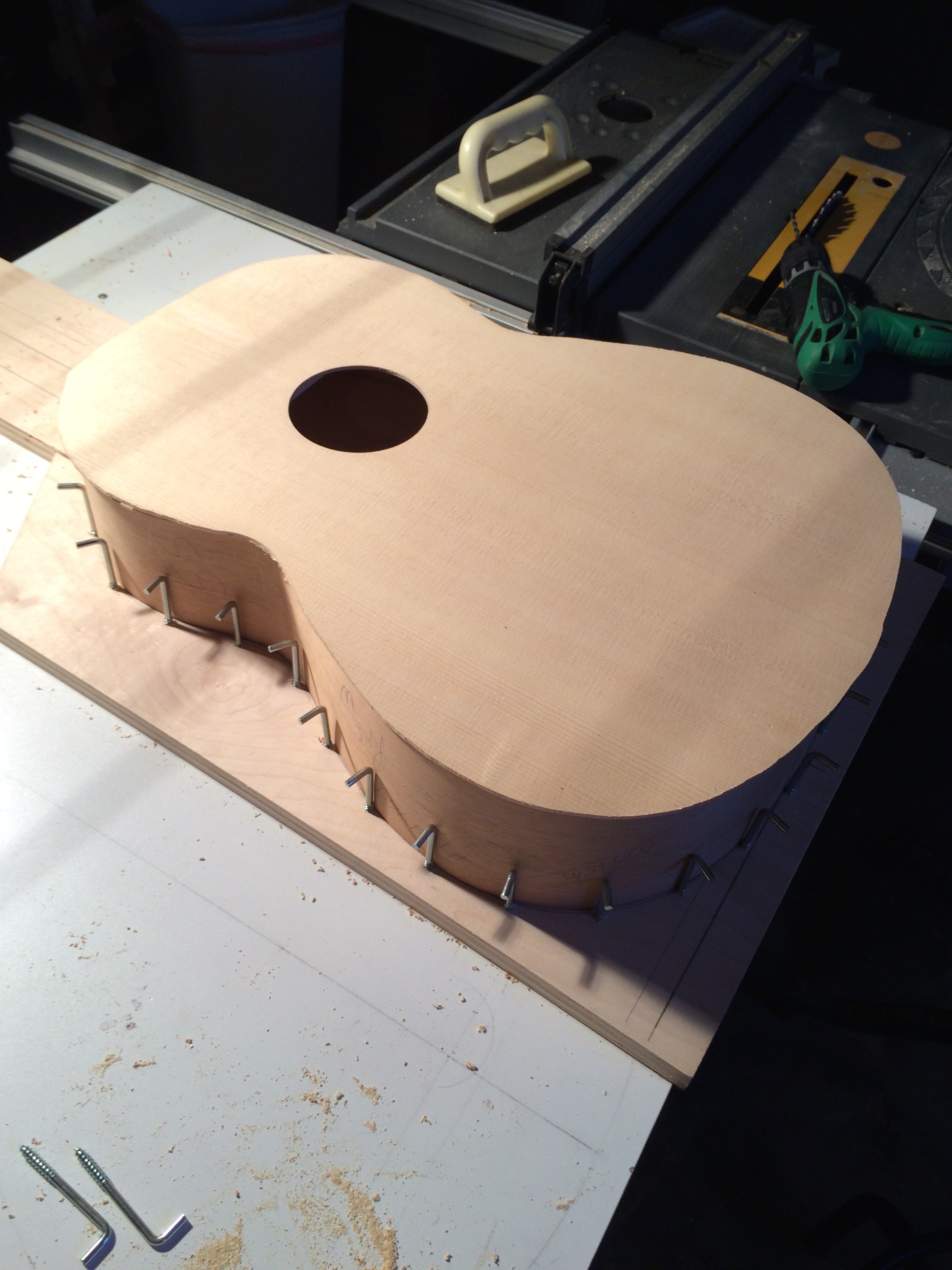

Top in place.

IMG_0813

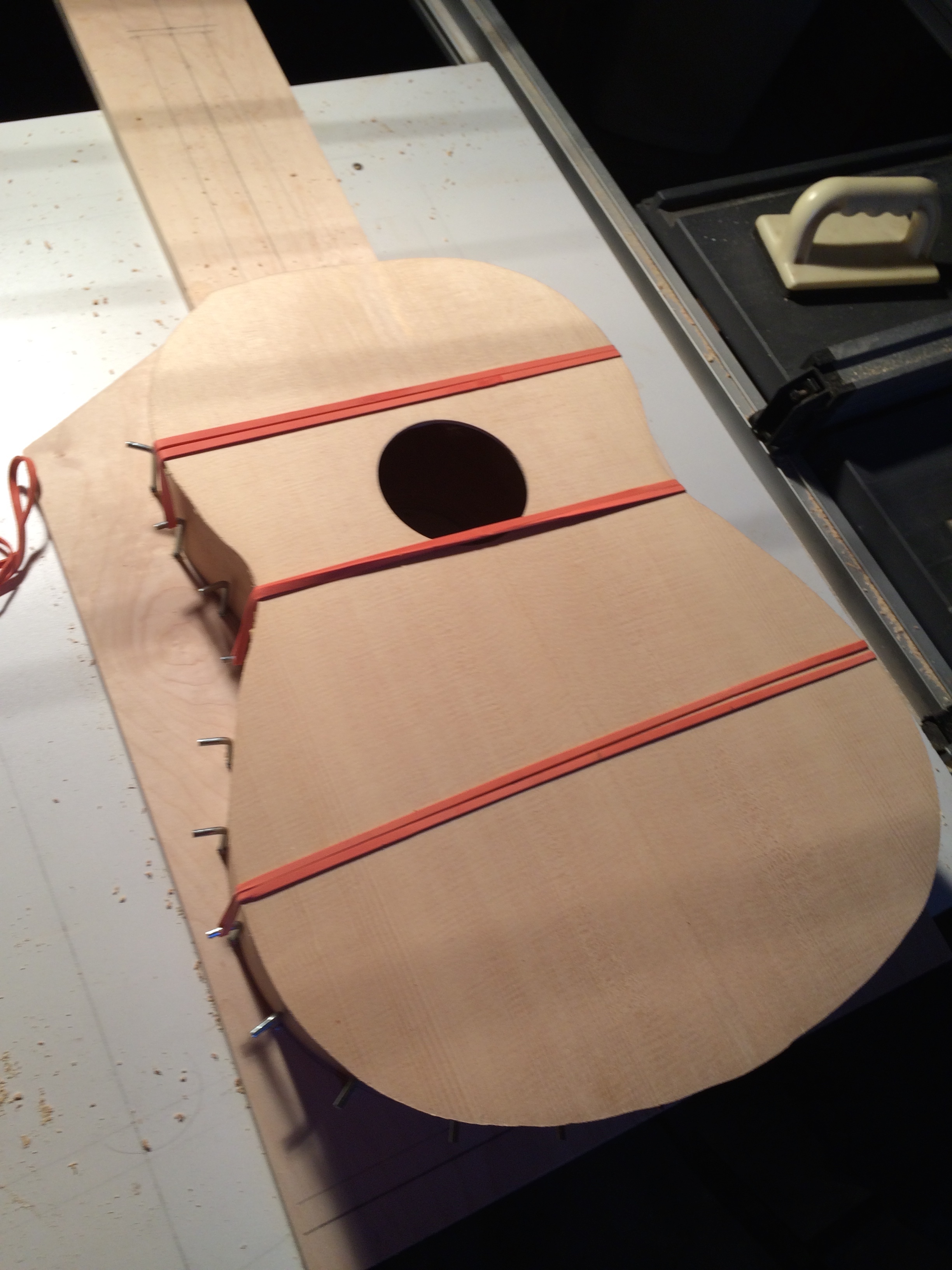

Just a few rubber bans hold it nicely in place.

IMG_0786

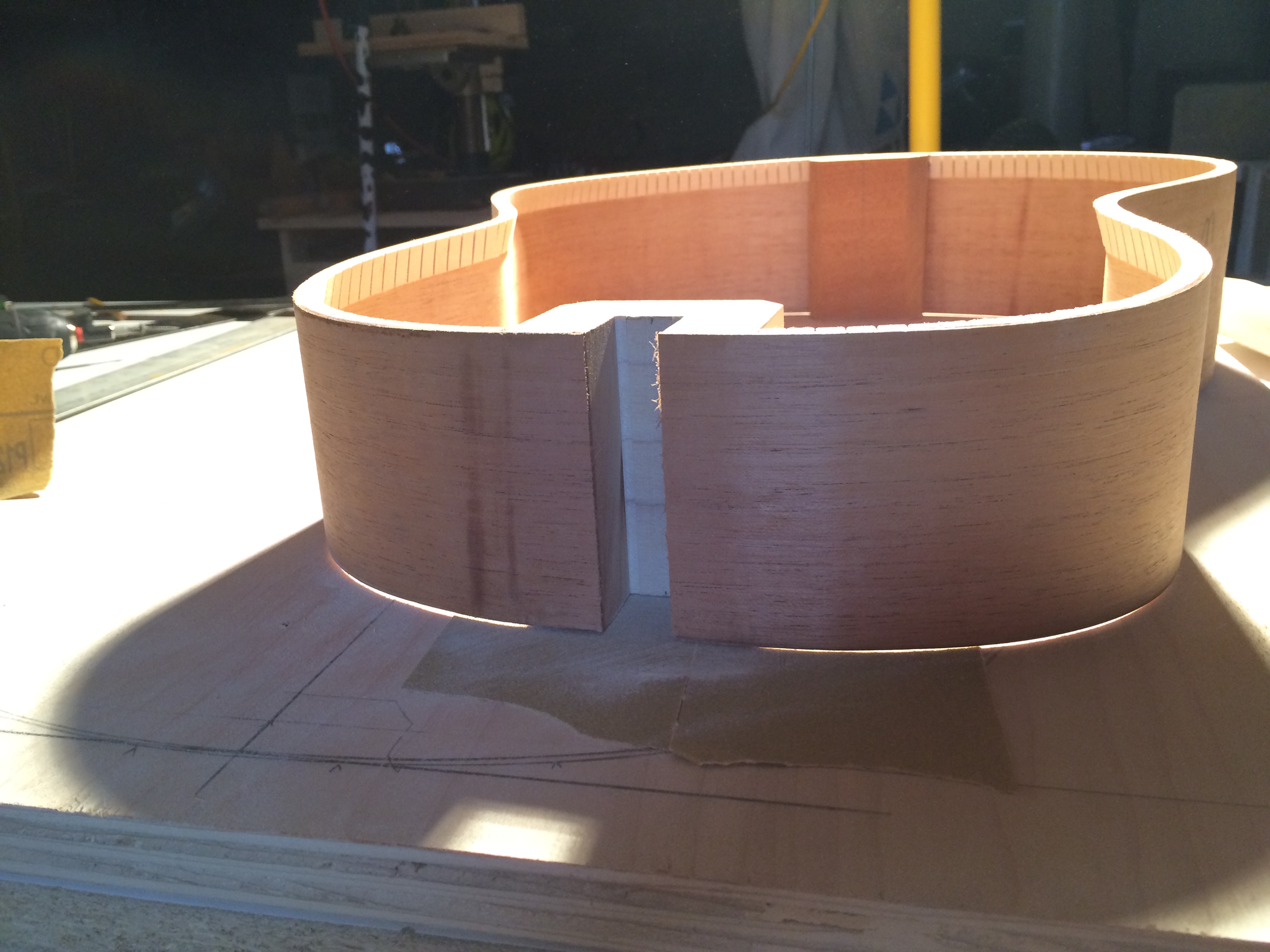

This is a good time to do a little flattening.The light  show’s what needs to be done.

Sand paper on the board until you are dead flat.

IMG_0819

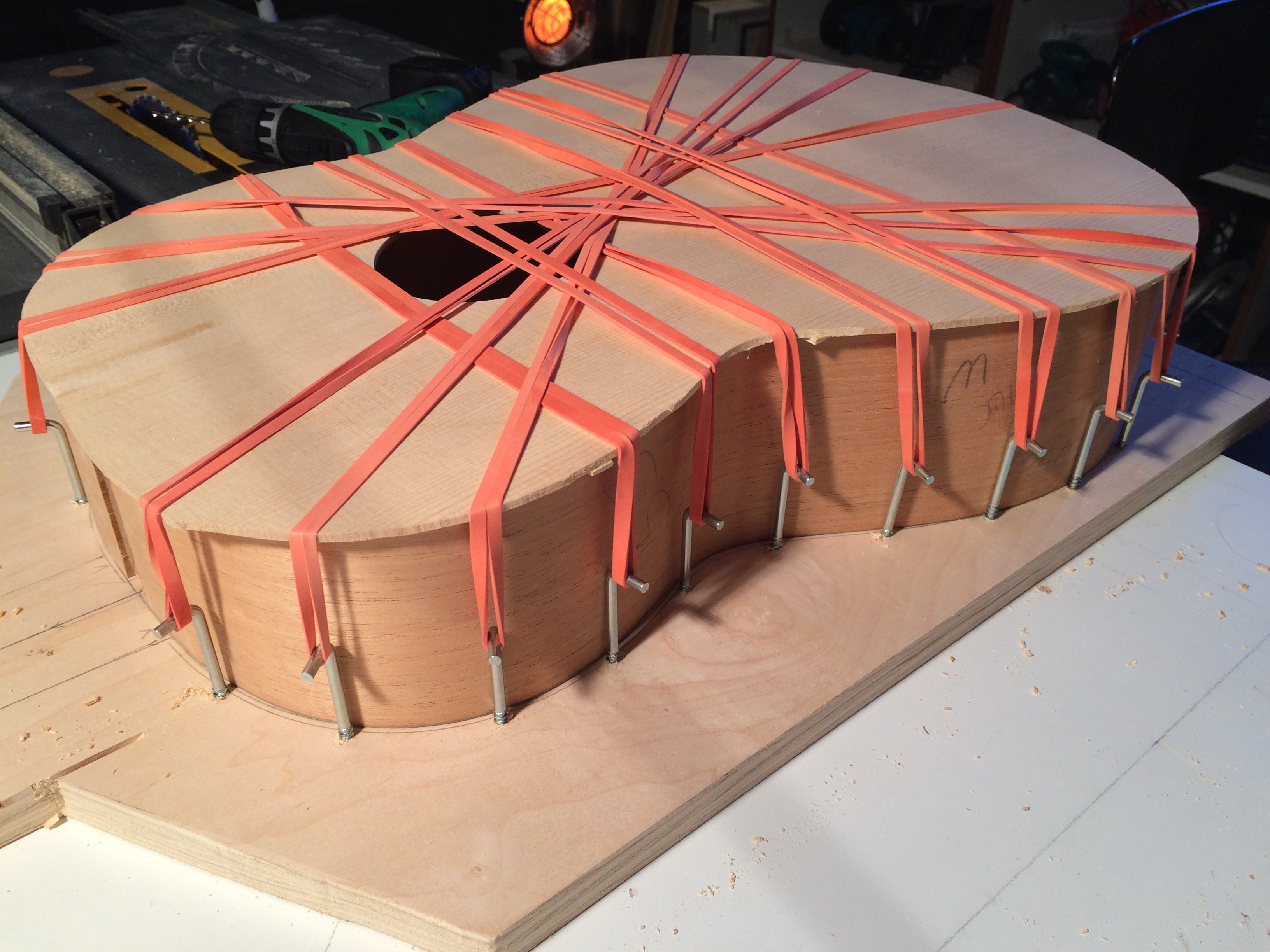

More rubberbands.

IMG_0825

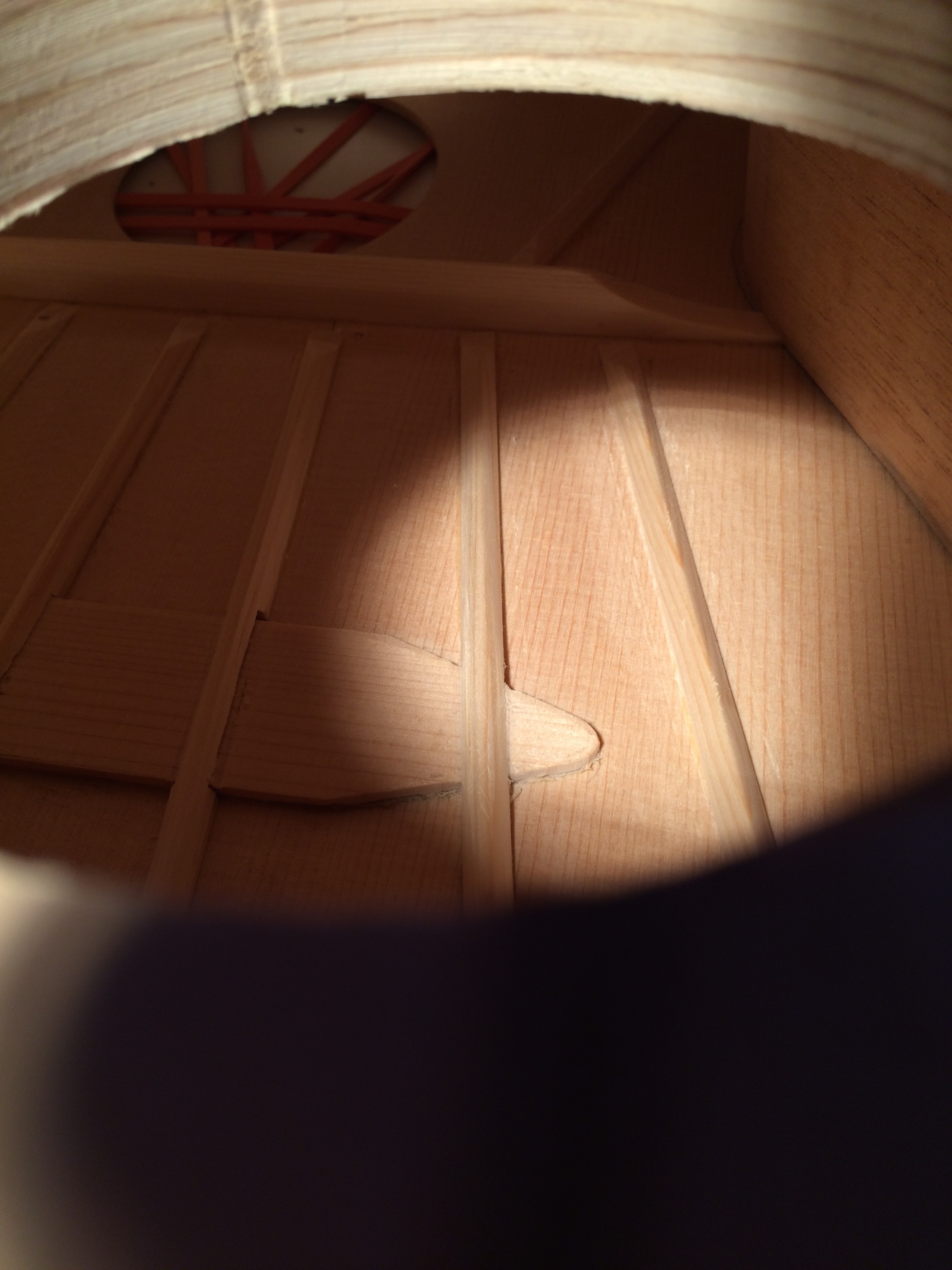

Access holes let me see whats going on inside.
