bracing with a radius dish

IMG_2841

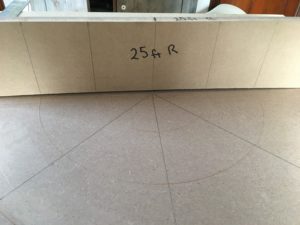

staring with a 25 foot radius someone made for me on a CNC machine .

IMG_2908

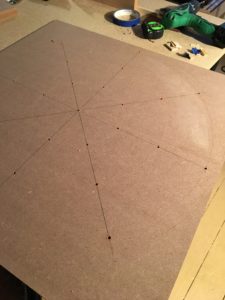

I lay the same pattern out on a piece of  3/4 and 1/4 MDF.

IMG_2851

using calculations and an article downloaded from the internet ,I figure out spacers.

IMG_2900

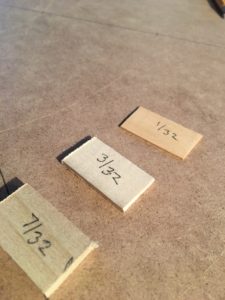

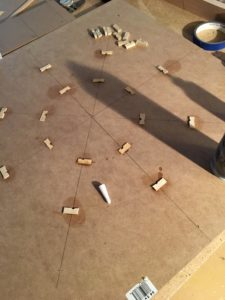

 next I drill holes and split the spacers

 IMG_2907

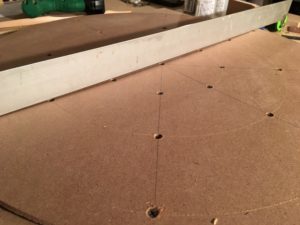

and glue them in place on the grid layout

IMG_2911

once screwed down it creates the 25 foot radius

 IMG_2912

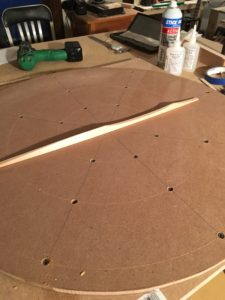

the dish now has the same curve as the back of the brace

IMG_2949

now a full scale layout

IMG_3021

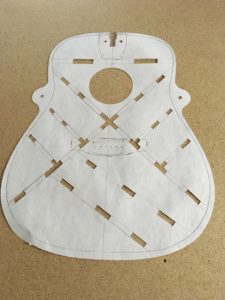

then cut outs are made to make a layout template

IMG_3023

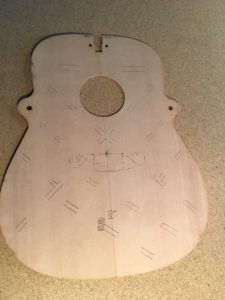

this transfers to the soundboard

IMG_3189

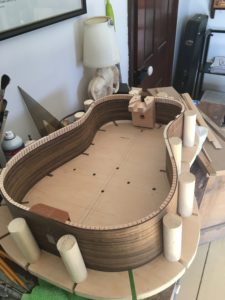

a homemade go-bar clamp I made a few weeks ago

IMG_3031

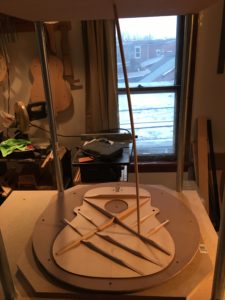

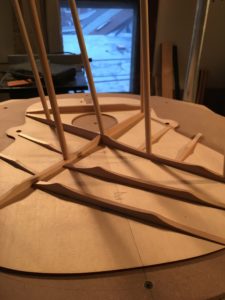

 3/8th dowels are spring loaded to glue braces in place

IMG_3032

I glue in a few sections at a time

IMG_3197

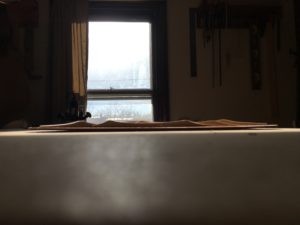

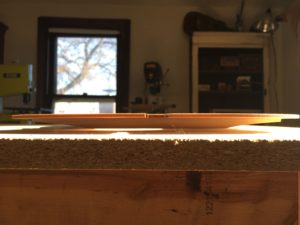

the arch is subtle

IMG_3203

the arch will add strength and tonal value

IMG_3223

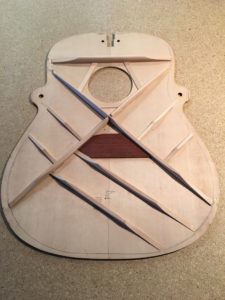

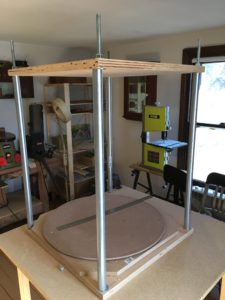

next I’ll set up a spindle clamp work board and glue the top on

IMG_3201
