Spindel work board

IMG_1579

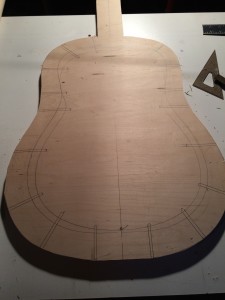

Cut a rough shape out of 3/4 inch ply wood and mark out equal spaces for slots.

IMG_1598

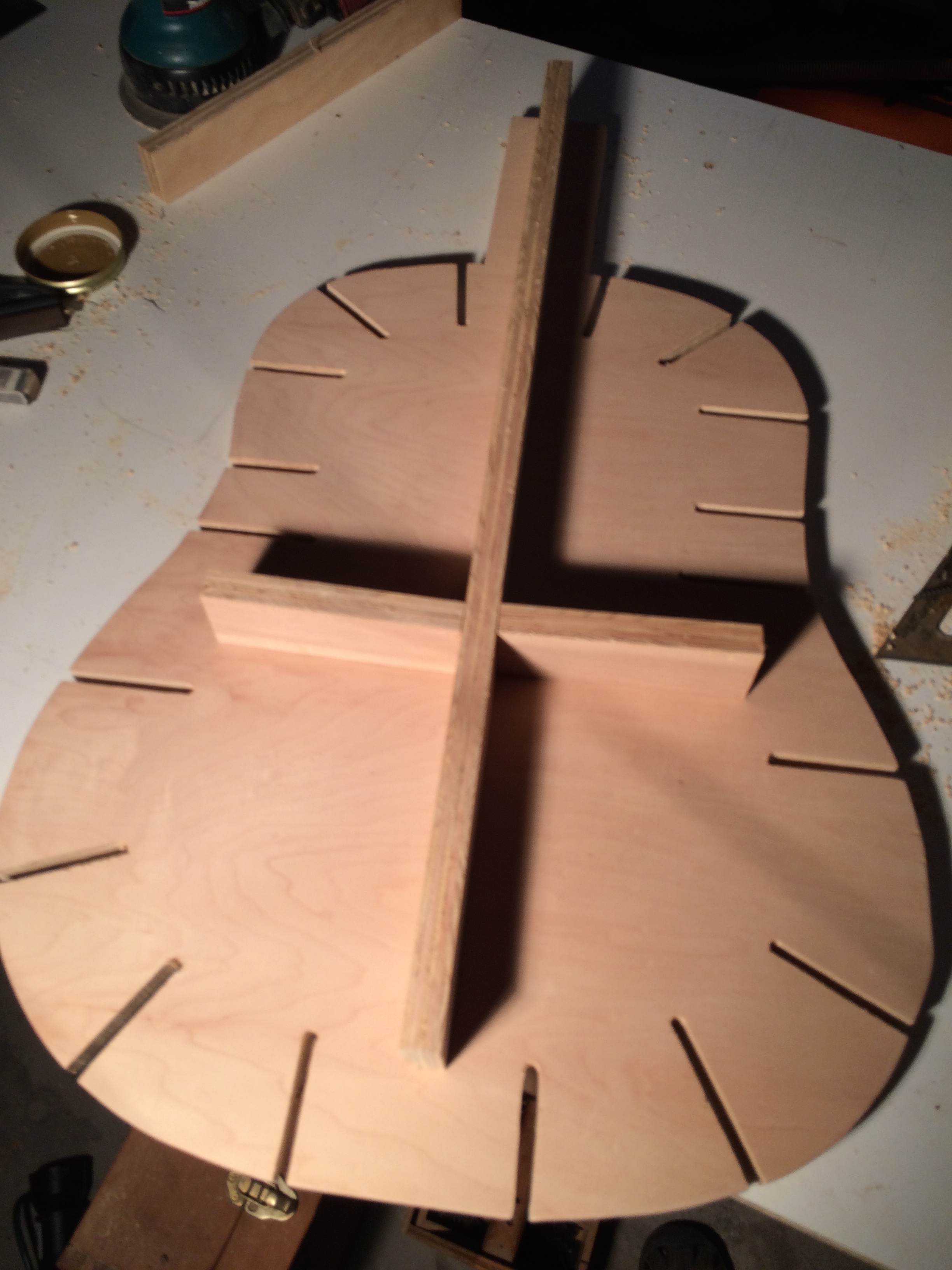

Drill holes and band saw out slots and make a T brace for the bottom.

IMG_1620

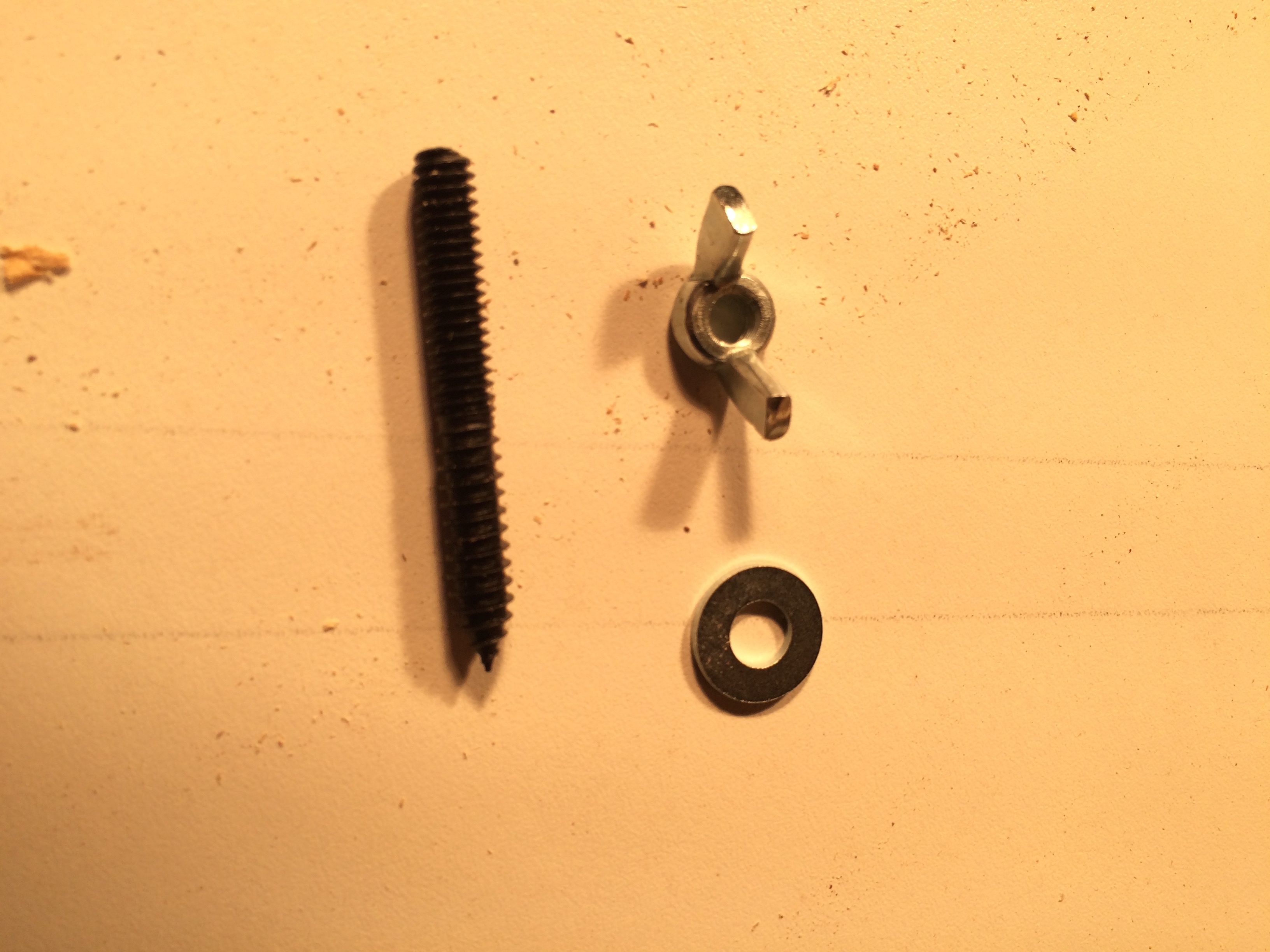

Some hardware for the spindles.

IMG_1592

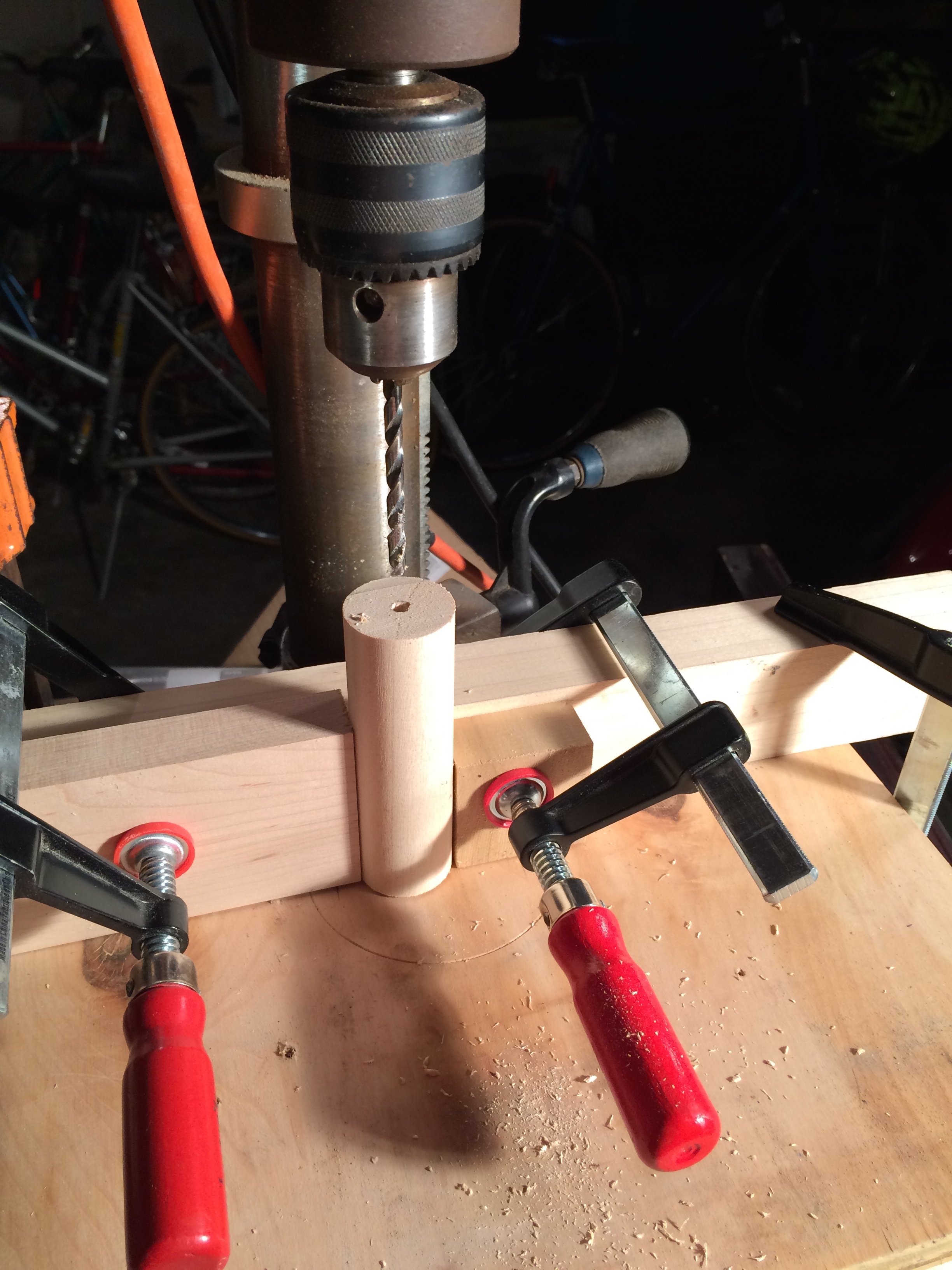

Set up on the drill press to center holes on  1 1/2 inch dowels.

IMG_1593

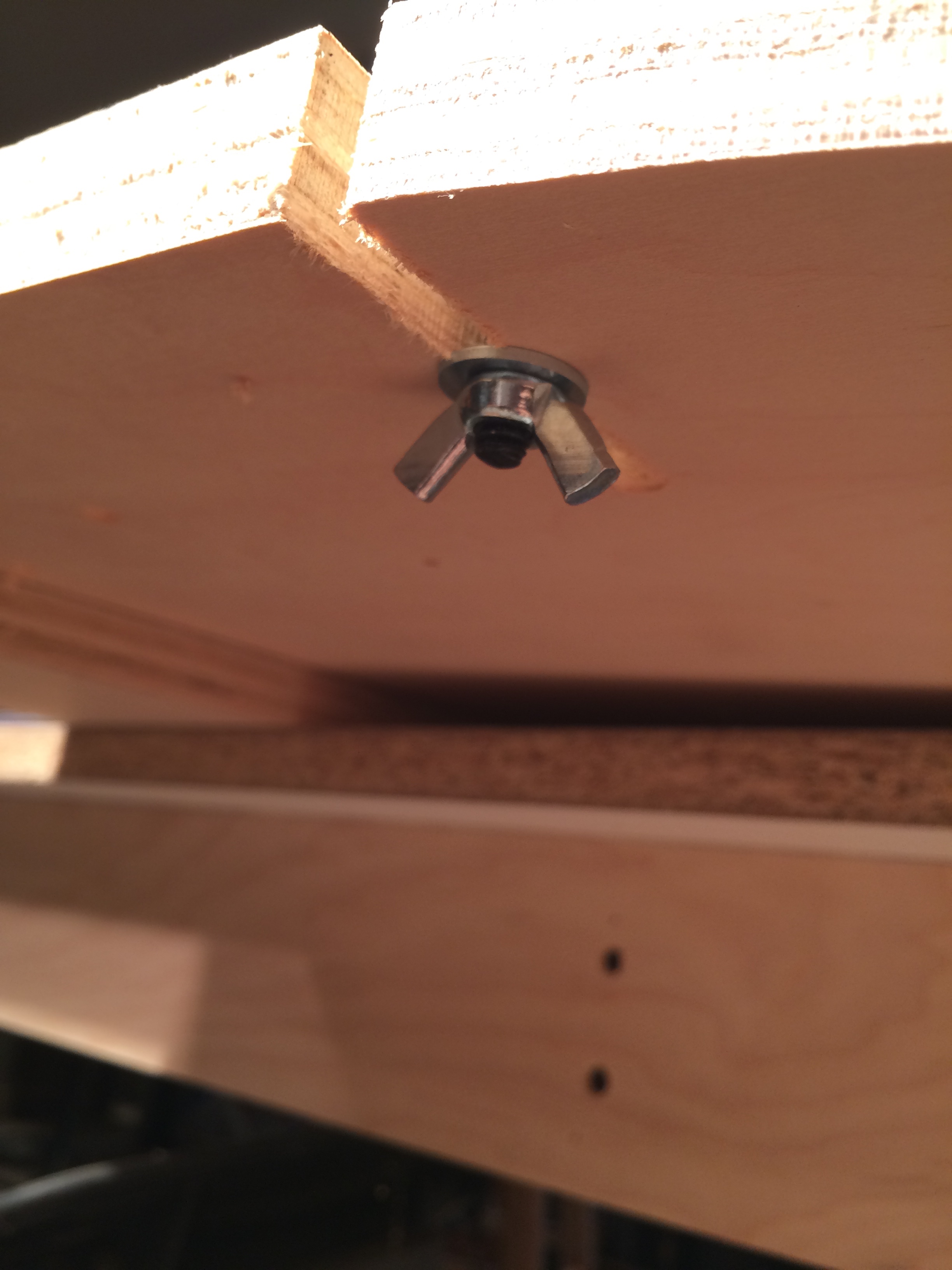

Wing nut and washer on the bottom.

IMG_1599

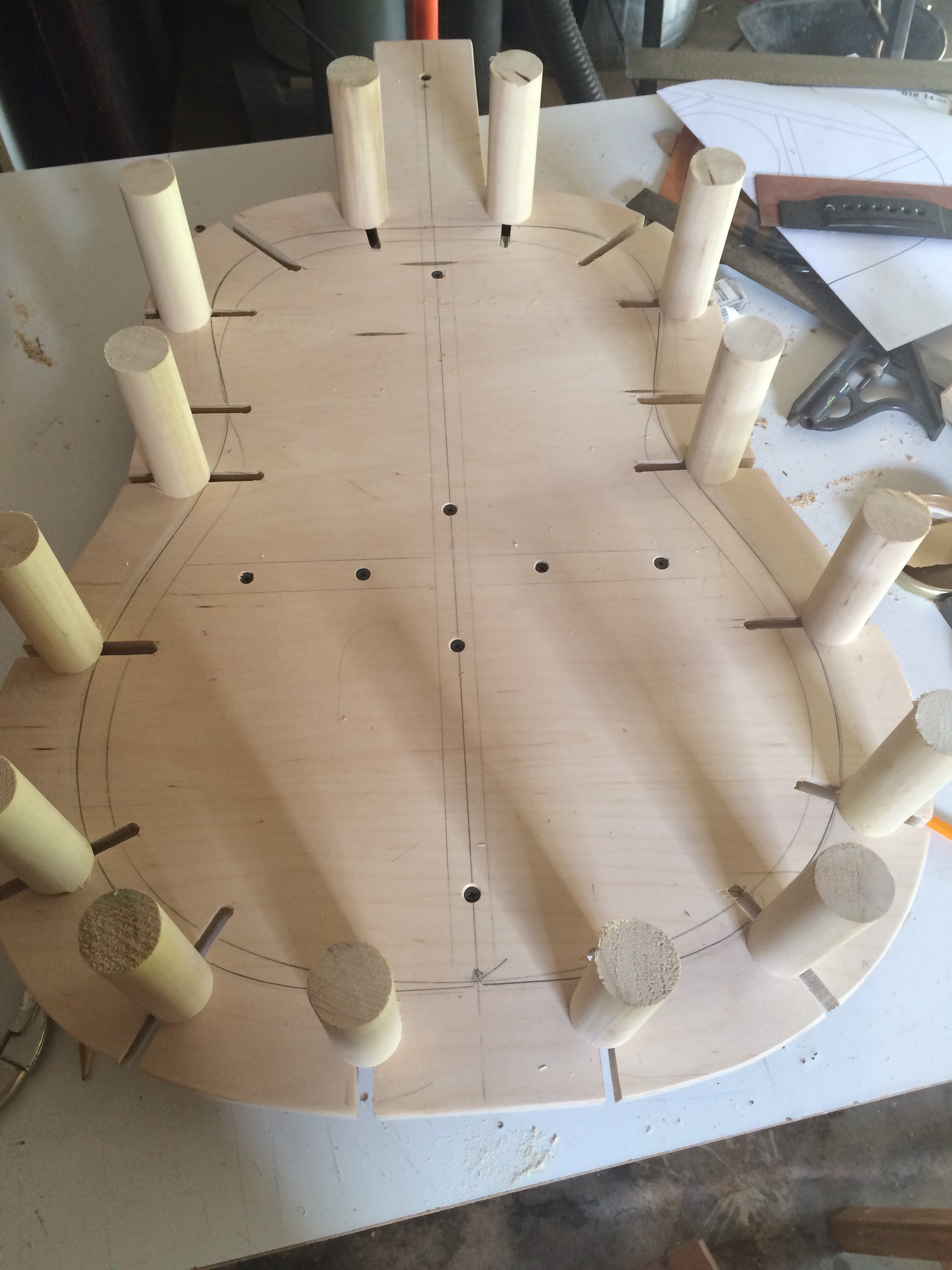

The spindles can be pushed in or out and locked into position.

IMG_1612

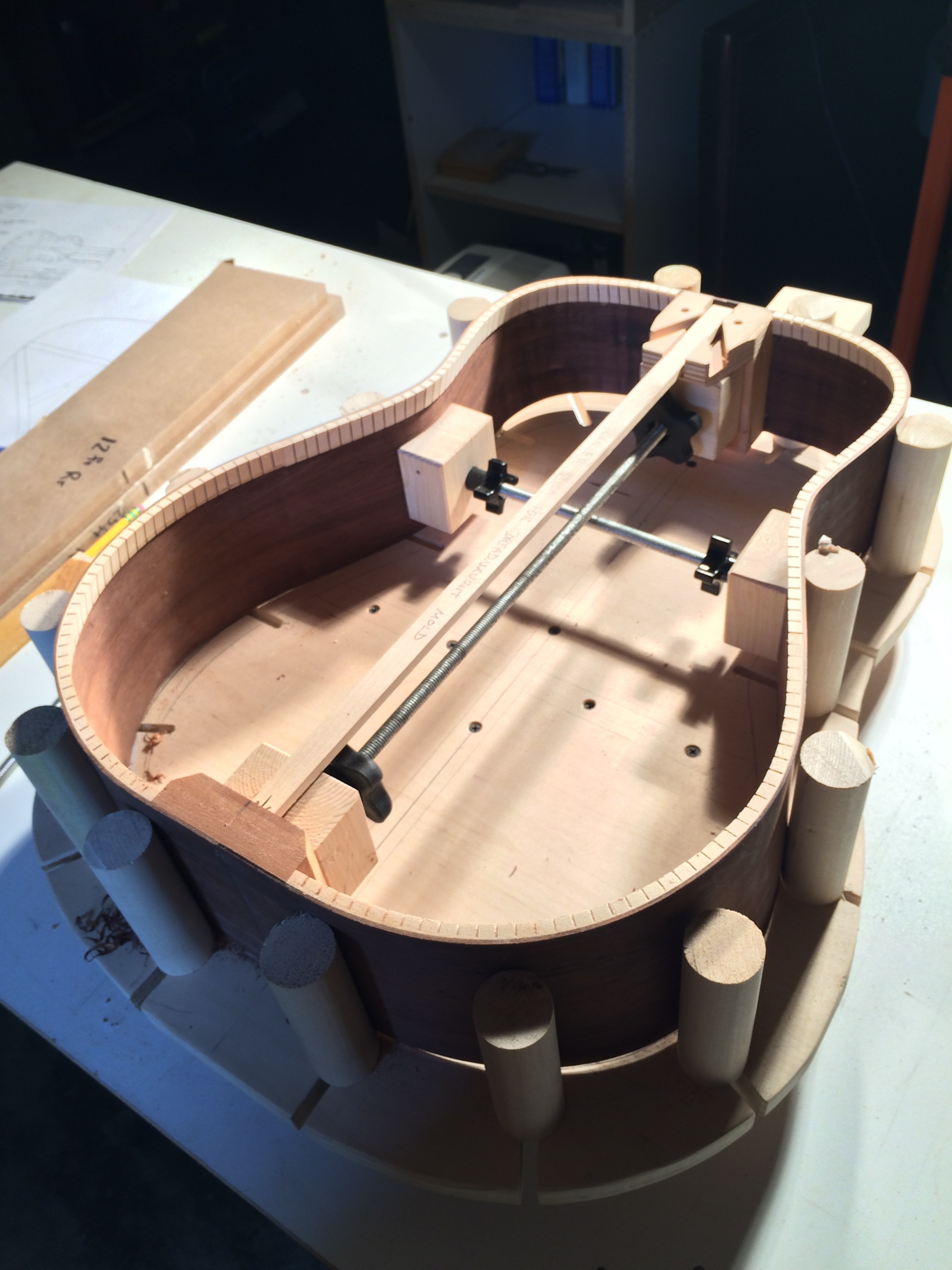

shown with guitar sides and spreaders.

The jig can be used for different glue up procedures and different size guitars.
