Saddle Routing Jig

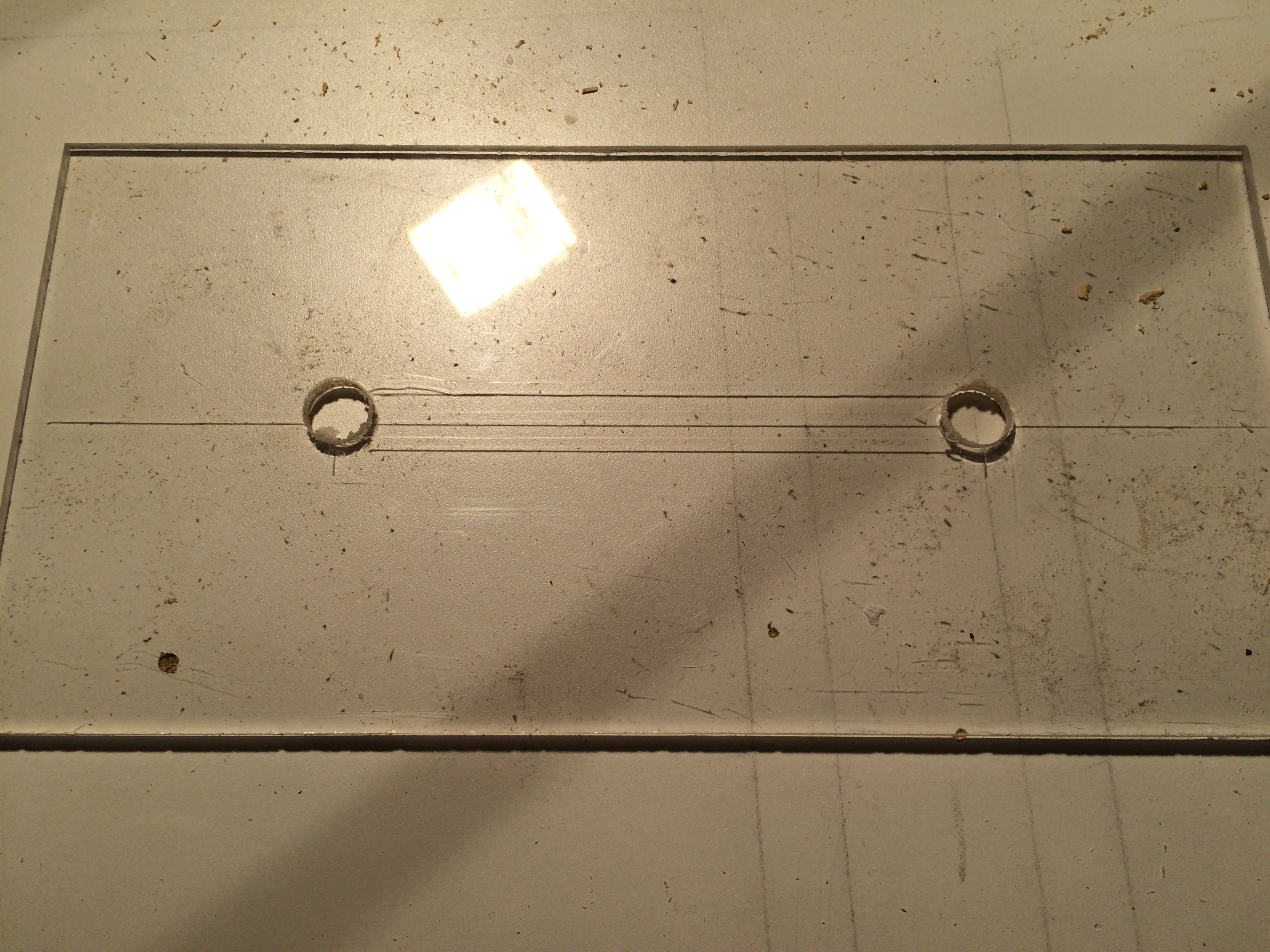

IMG_0837 Drilled 2 5/8 inch holes centered on a piece of 6 x 12, 1/4 inch plexiglas.

IMG_0839

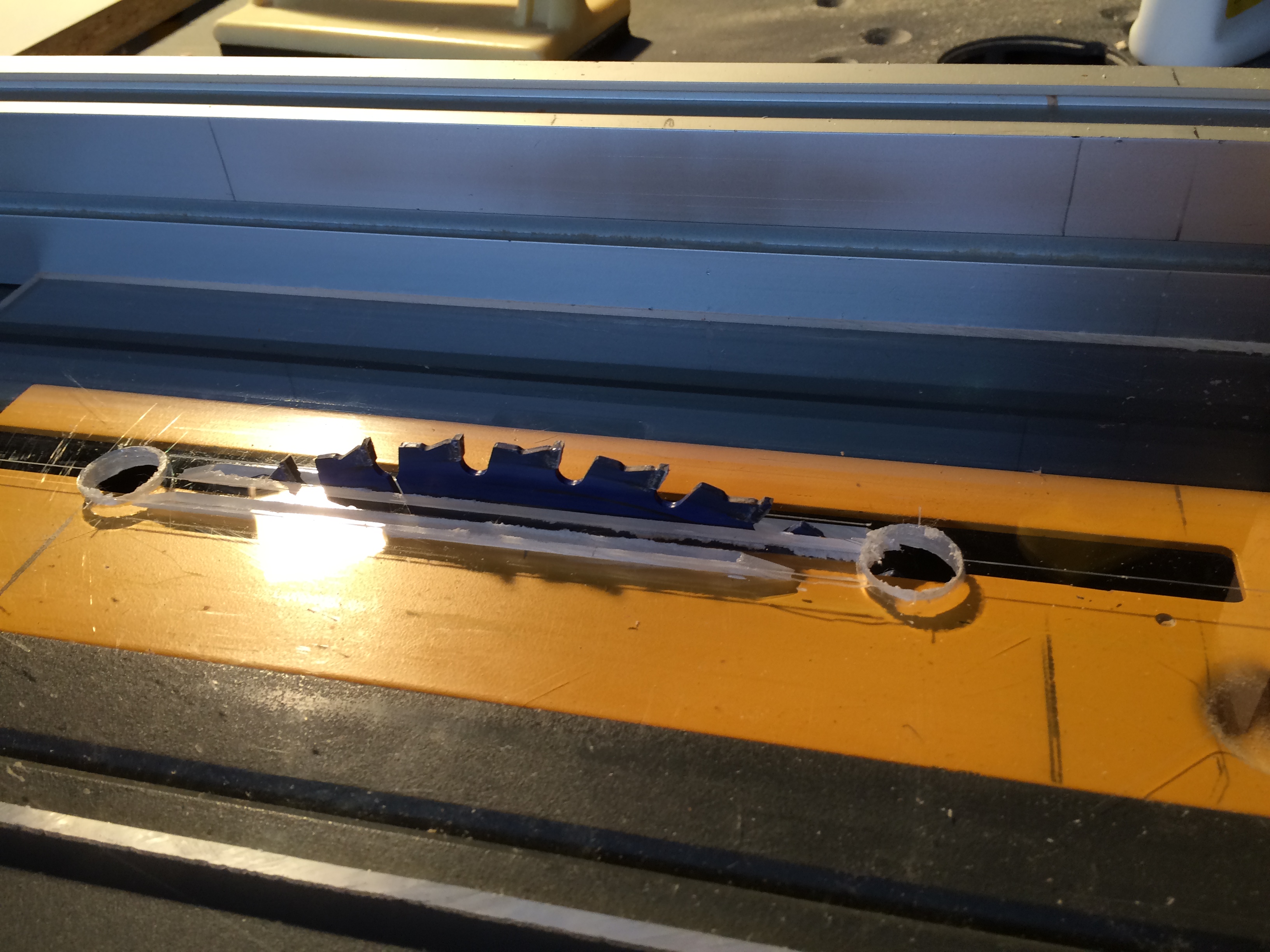

Very carefully! removed the waist on the table saw.

IMG_0862

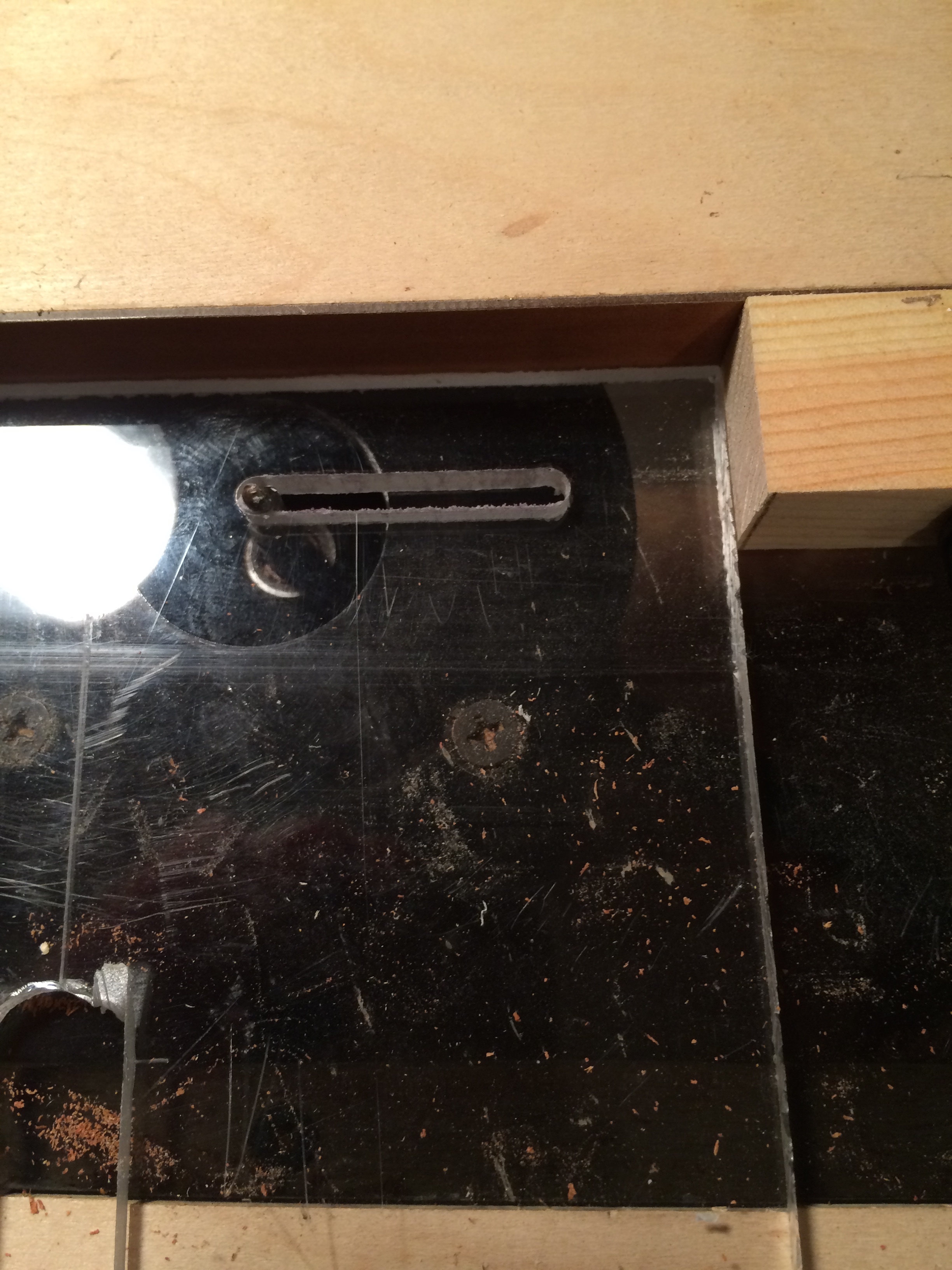

Routed out adjustment slots on a small router table.

IMG_0866

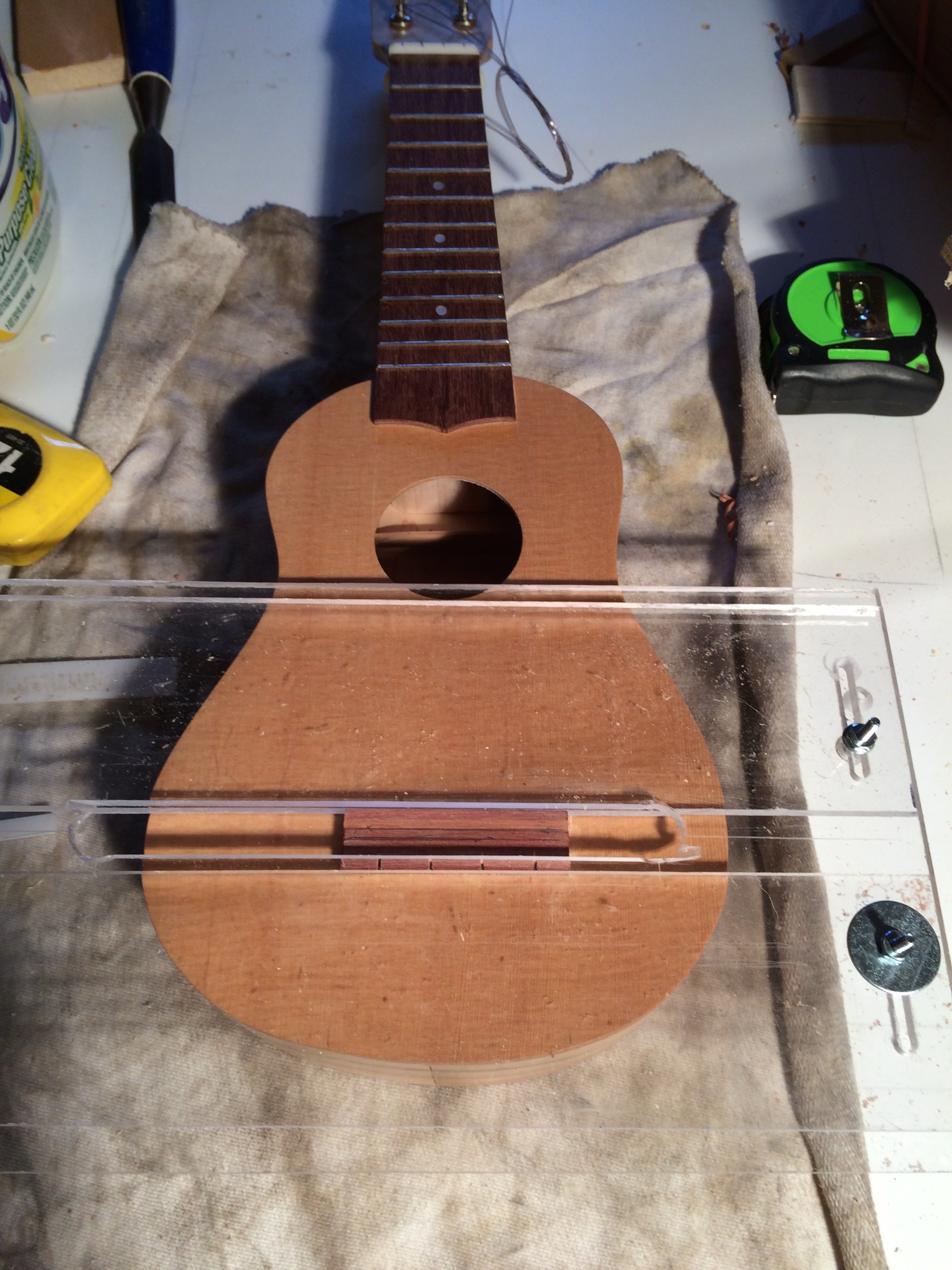

Attached 2 3 inch plates with small machine screws and nuts. Now I can set the correct position.

IMG_0864

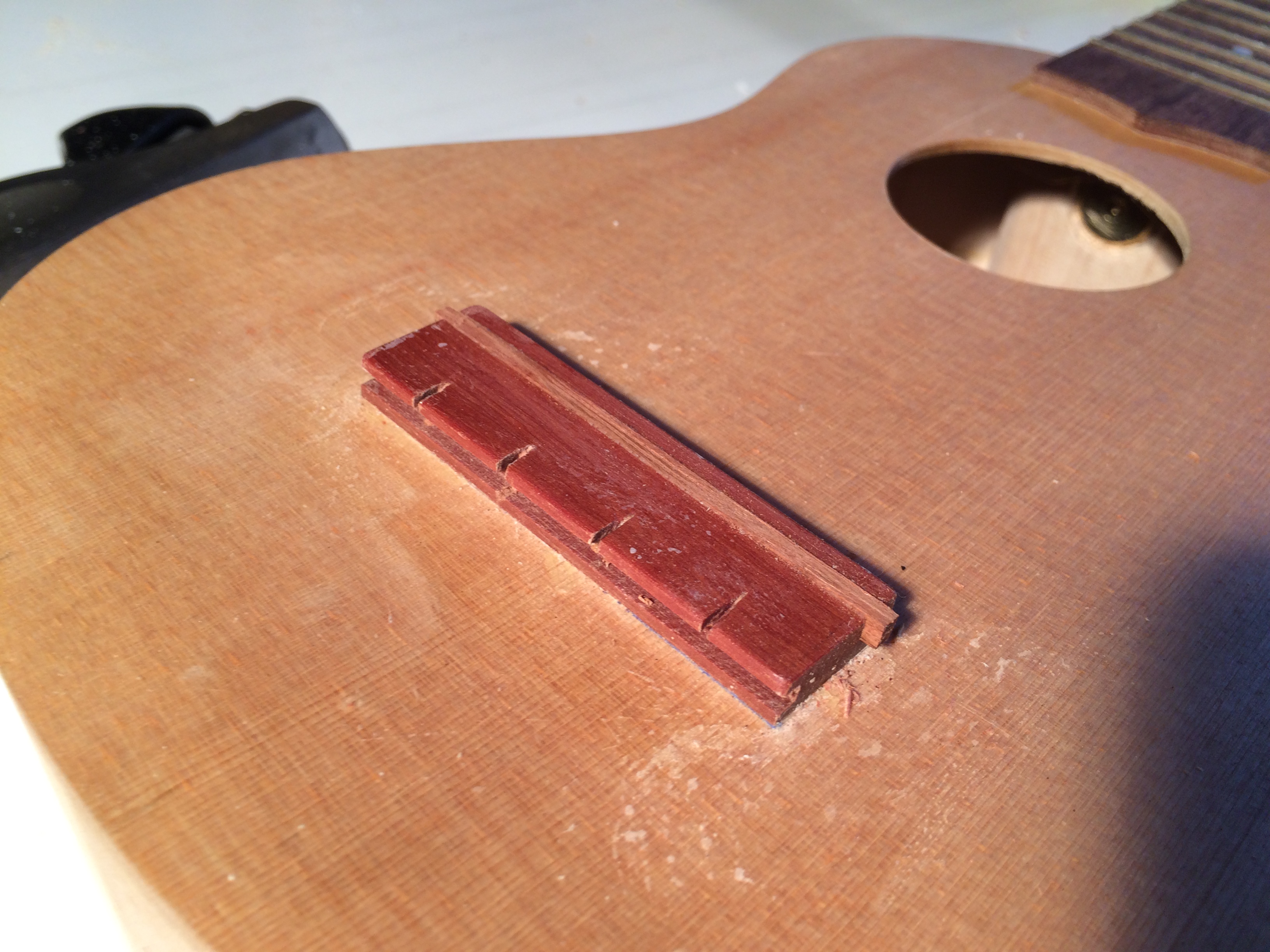

Filled the old slot ,that was in the wrong spot.

IMG_0867

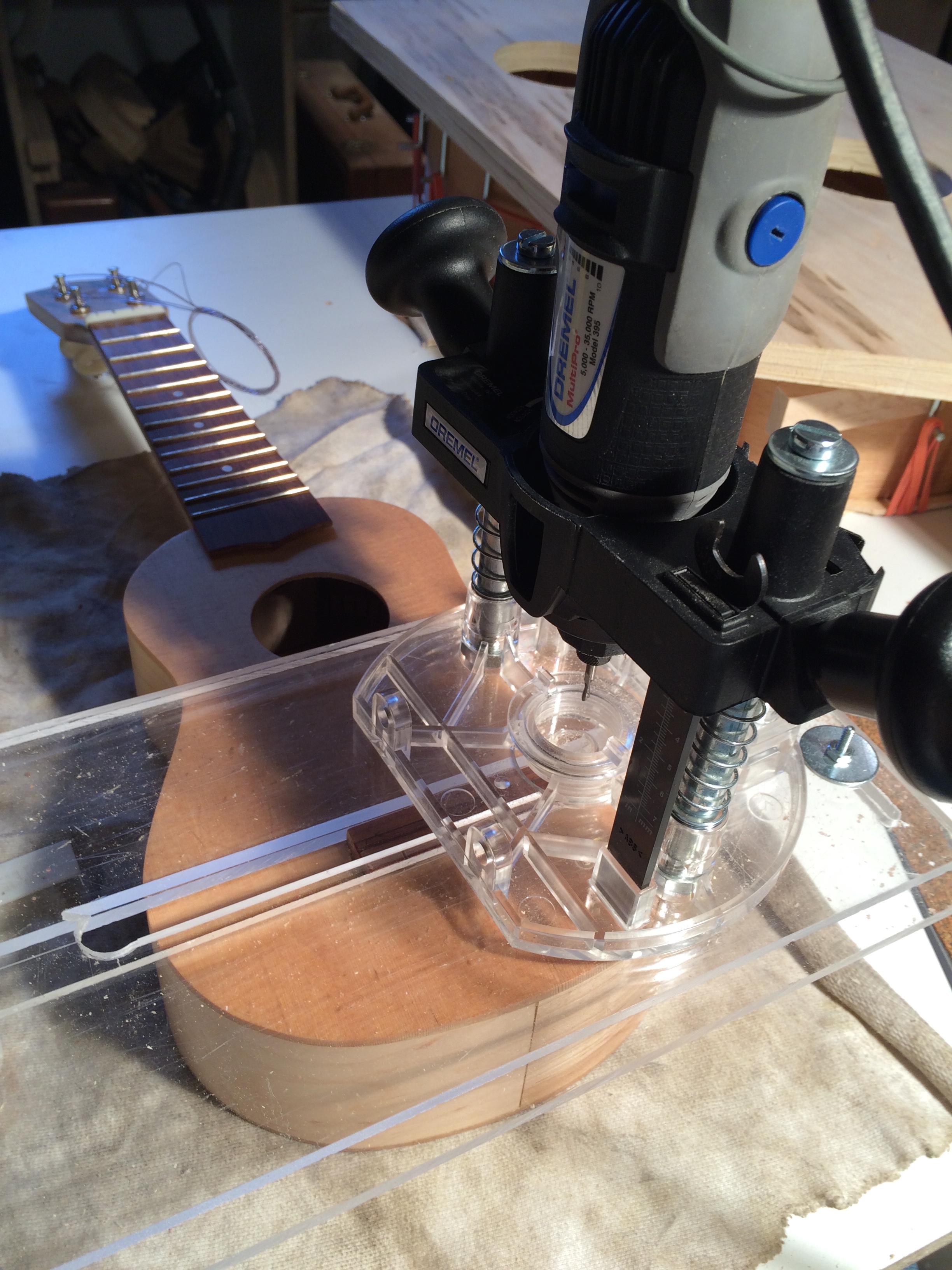

Using a Dremel with a plunge router base,the new slot is cut in.

IMG_0868

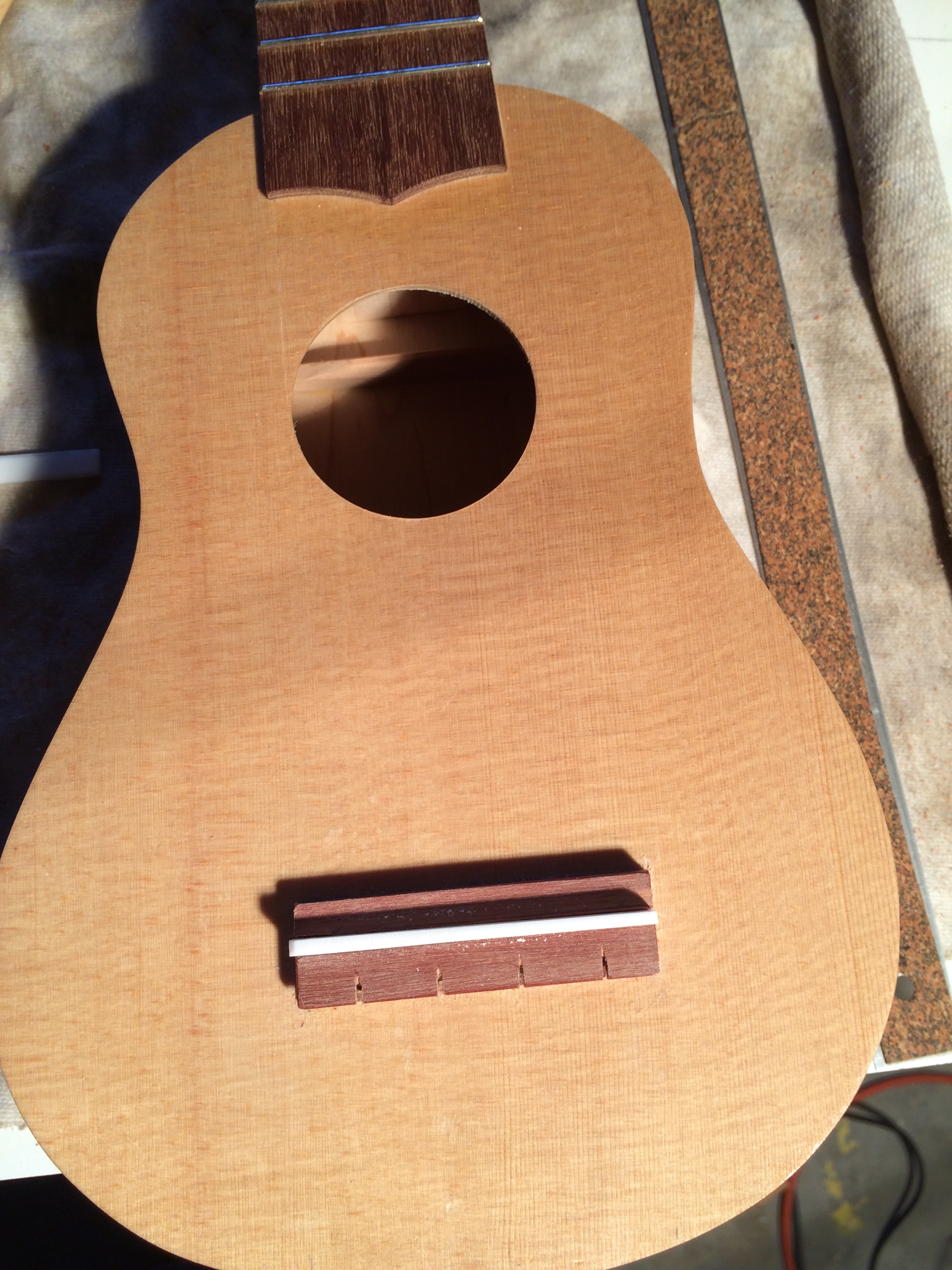

The bridge is now in the correct position.
