Homemade Guitar Clamp

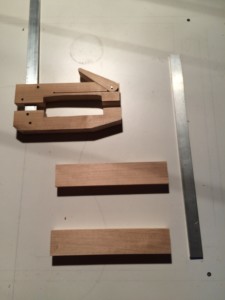

IMG_072913/16 inch maple blanks and 1/4 inch aluminium bar

IMG_0731

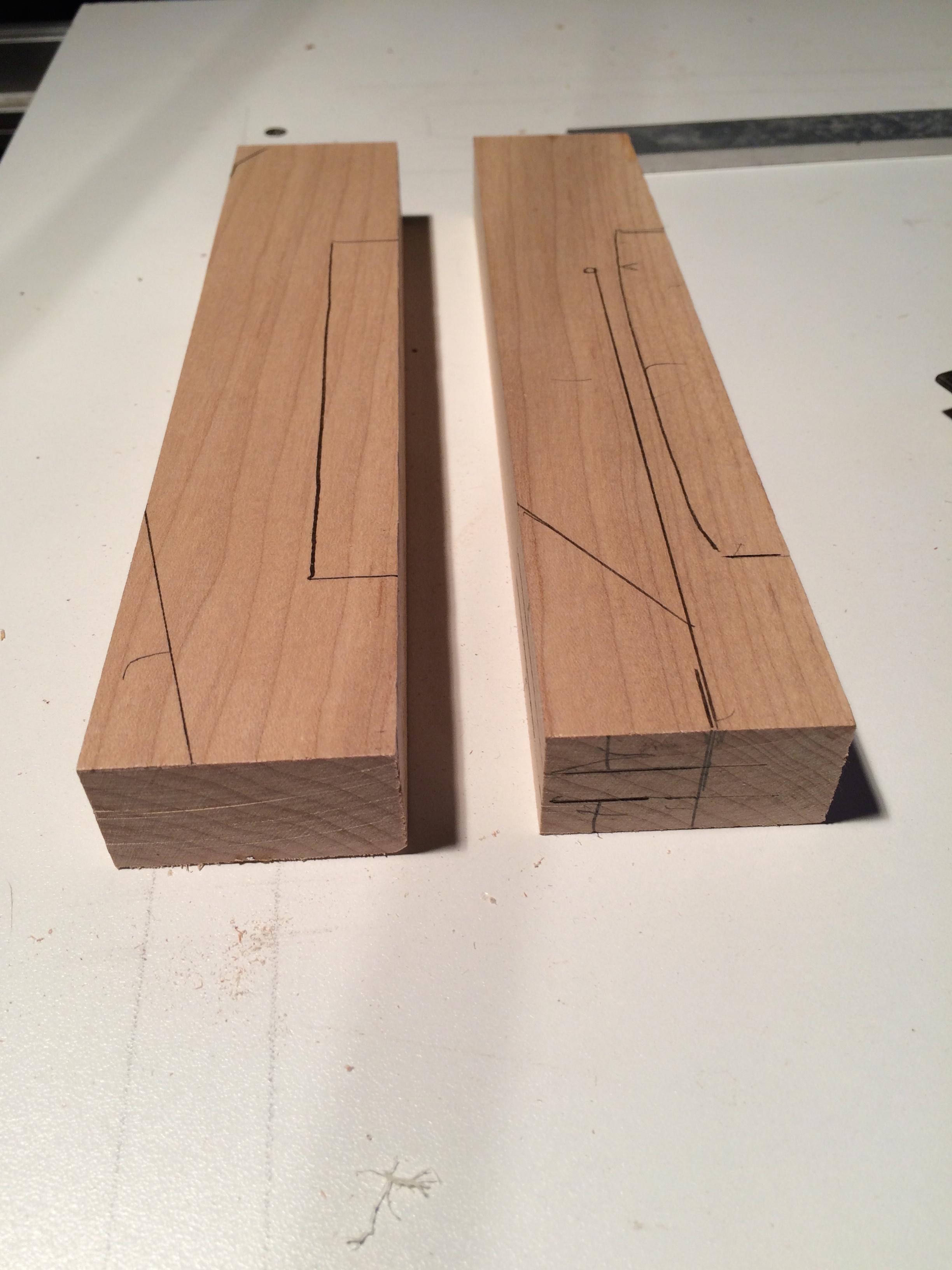

Lay out 1 13/16 inch by 9 inch.

IMG_0733

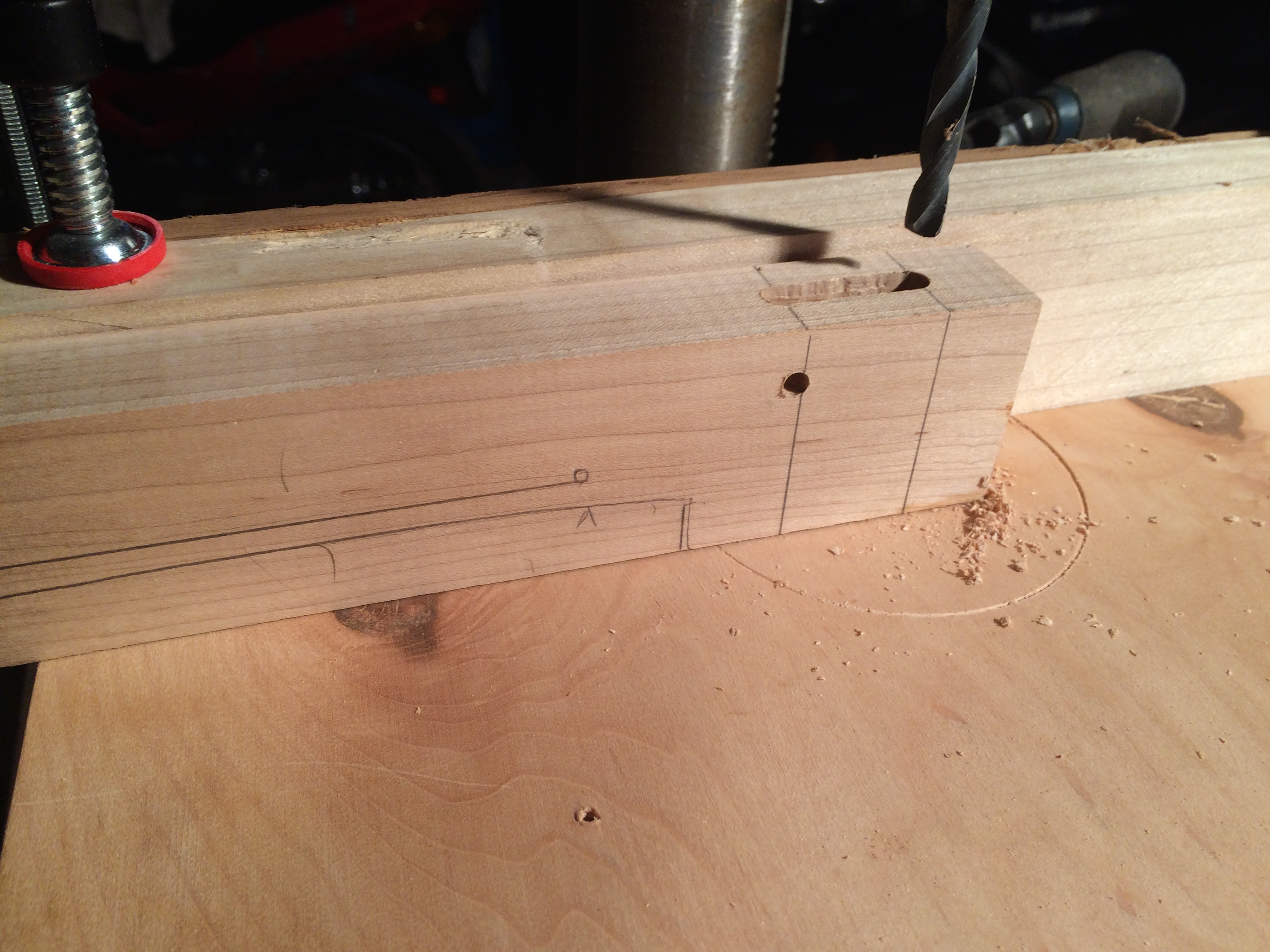

Drilling mortis on drill press.

IMG_0748

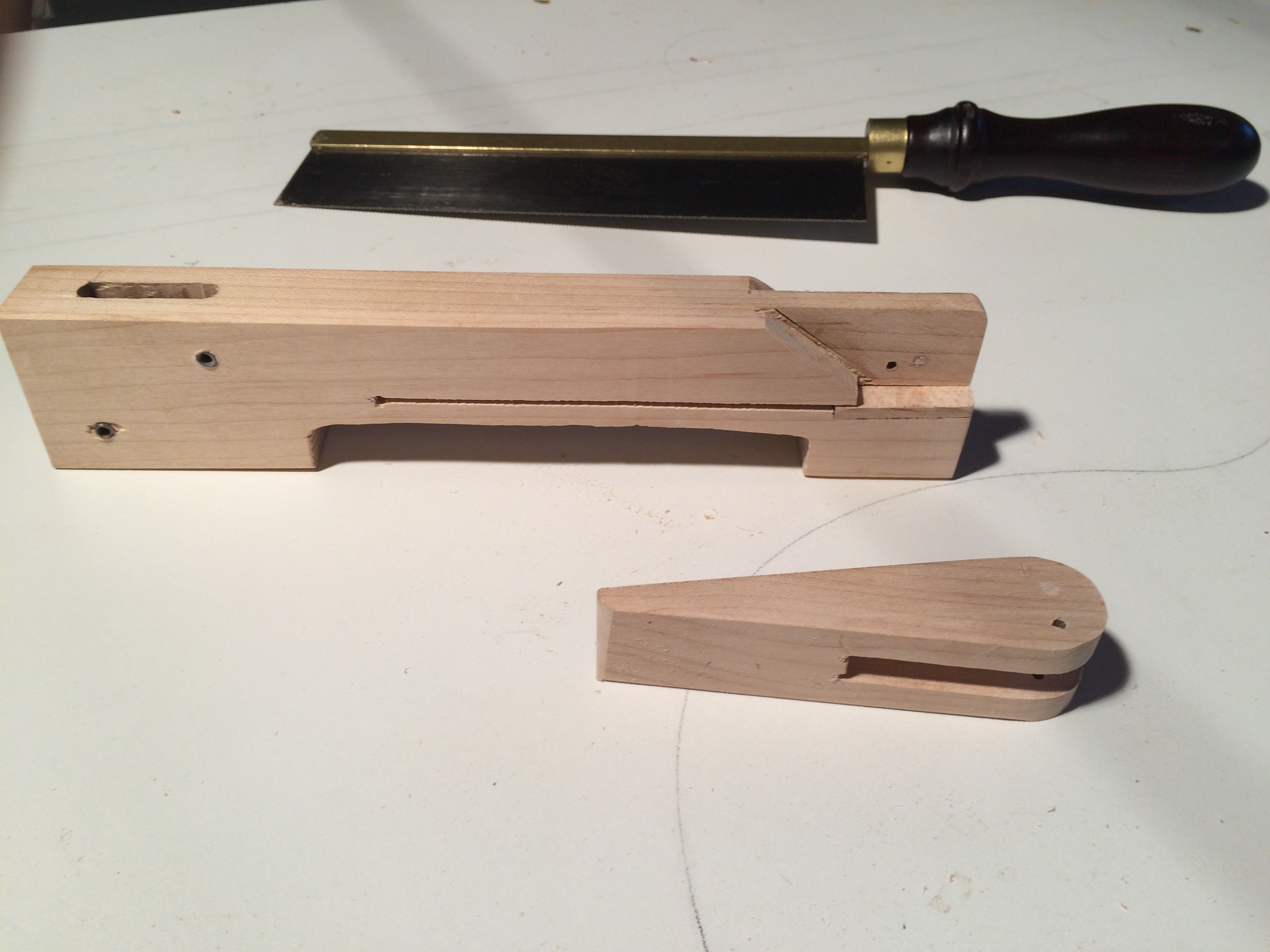

Band saw jaw and lever, cut tenon with back saw. Off set hole low on the cam.

IMG_0728

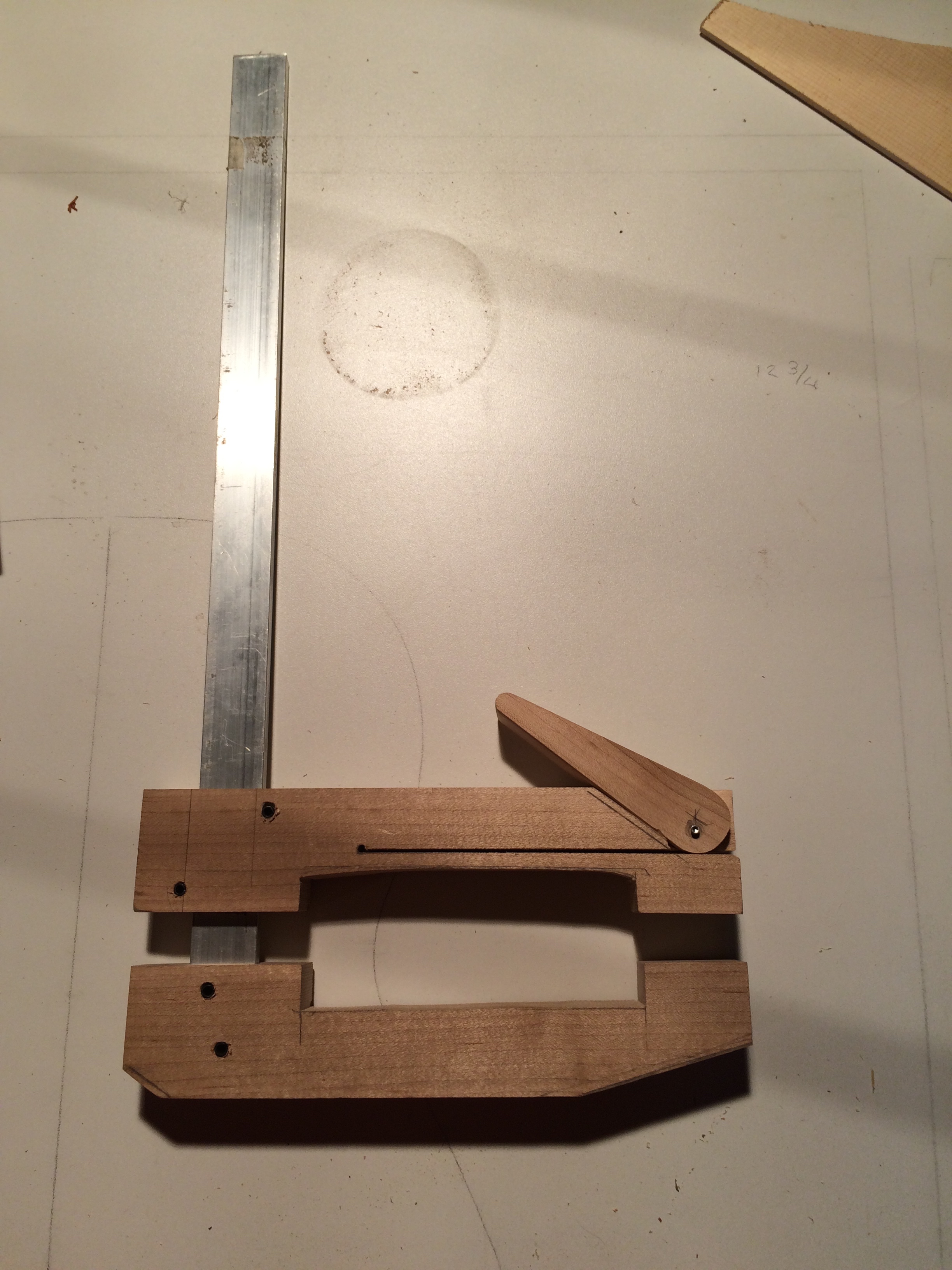

I used 3/16th tension pins to fix the lower jaw and off set to allow the top to let the top jaw slide.

IMG_0739

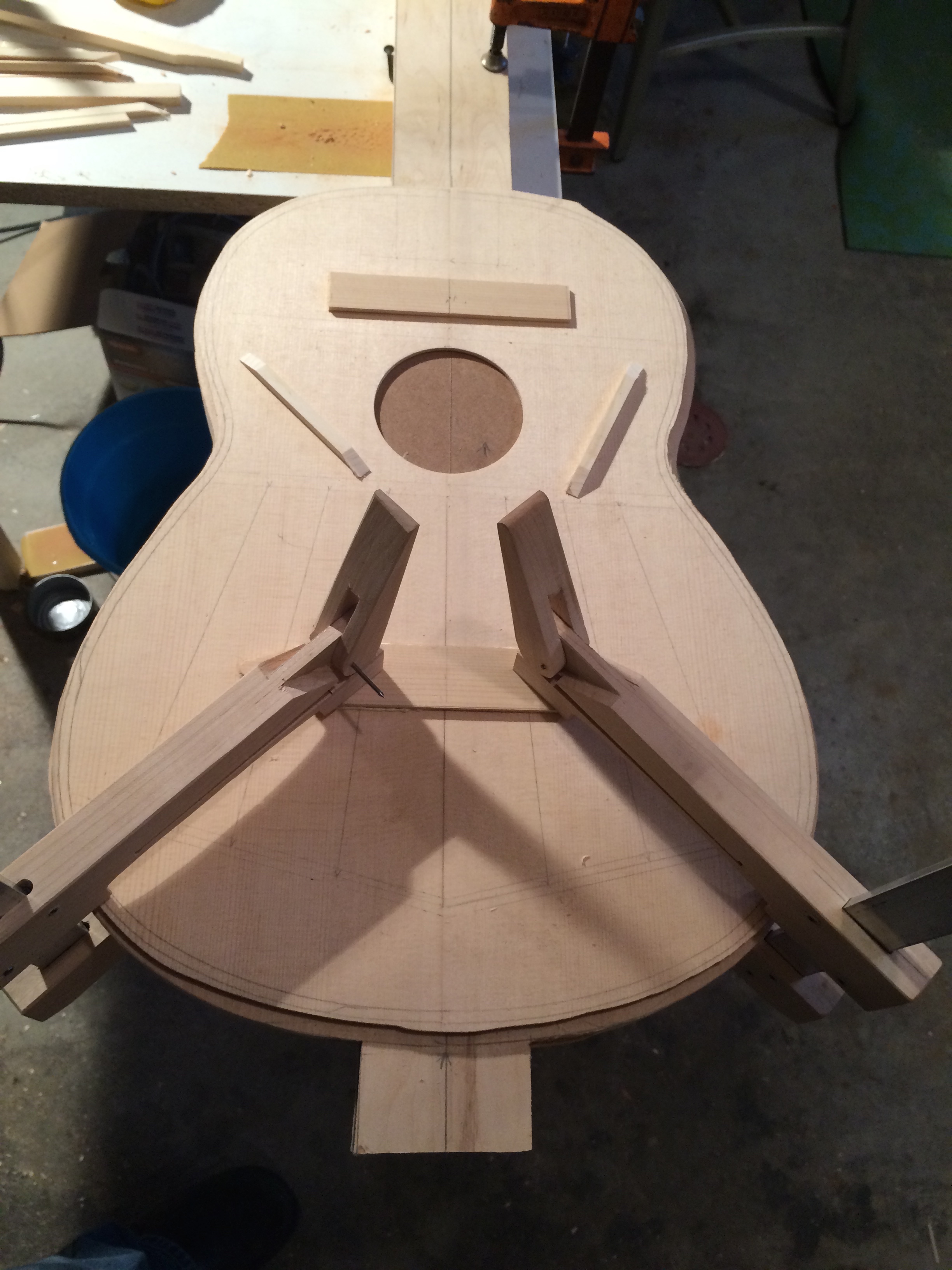

Here I’m gluing on a bridge graft on the sound board. You can see why you need a deep-throat.

IMG_0745

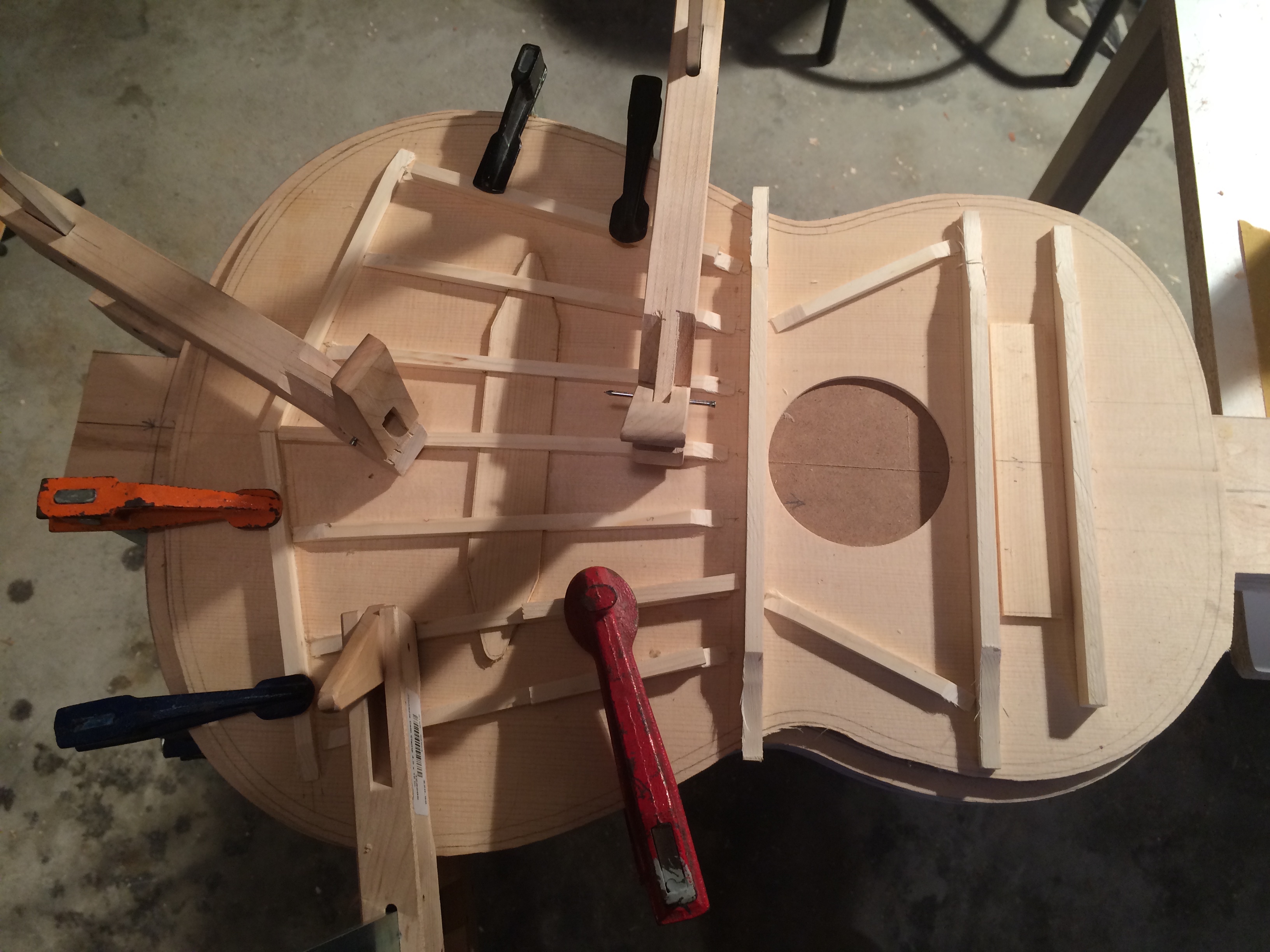

Gluing more bracing,you can see how regular clamps fall short.
